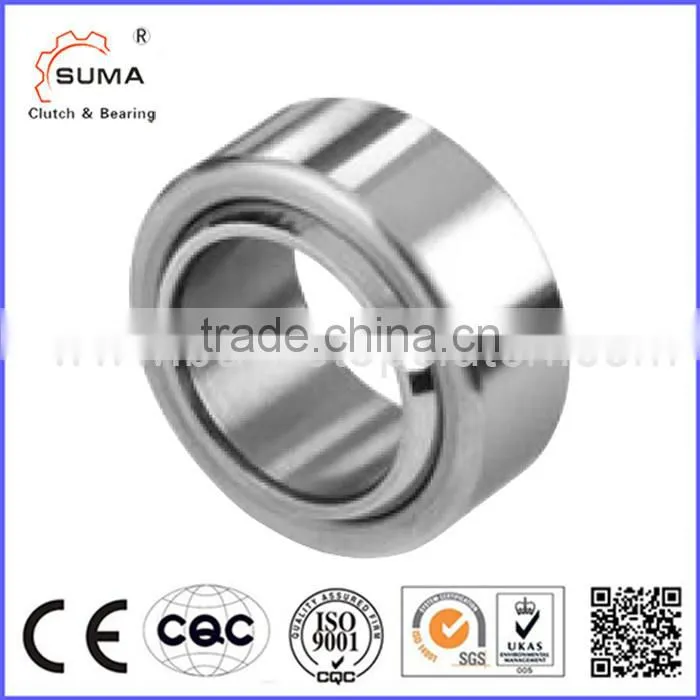

GE4C Maintenance Free Spherical Plain Bearing Use on Energy-efficient Equipment
US$ 1 - 6
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA
Bore Size:
4,
Model Number:
GE4C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo;Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GE200ES China Manufacturing Spherical Bearing for Paper Mill EquipUS$ 1 - 6MOQ: 1 Piece -
Radial Spherical Plain Bearing GE...E(ES) SeriesUS$ 5 - 5MOQ: 1 Piece
-
GE Series Spherical Plain Bearing RadialUS$ 5 - 5MOQ: 1 Piece
-
GE50E Rod End Bearing Radial Spherical Plain Bearings geUS$ 1 - 6MOQ: 1 Piece
-
Radial Spherical Plain Bearing GE...ES-2RS SeriesUS$ 5 - 5MOQ: 1 Piece
Brand Name
SUMA
Bore Size
4,
Model Number
GE4C
Place of Origin
Jiangsu, China
Precision Rating
P6
Product Description
| GE4C maintenance free spherical plain bearing use on energy-efficient equipment | ||
| Details | ||
| Model | GE4C | |
| Material | GCr15 | |
| Type | spherical plain bearing | |
| Inner Diameter | 4mm | |
| Outer Diameter | 12mm | |
| Weight | 0.007lbs | |
| Width | 5mm | |
| Load Rating | Dynamic | 2.1KN |
| Static | 5.4KN | |
| Application | gearboxes;reducers;electrical machine;other machine | |
Specifications
1.Sliding Surface: PTFE Lined Steel Outer on Chrome Plated Ball
2.Maintenance Free - Low Friction
Main Technical Specifications
| Part # | Ref # | d | D | B | C | dk | rs | r1s | a | Dynamic | Static | Weight LBS |
| min | min | |||||||||||
| GE4C | GE4C | 4 | 12 | 5 | 3 | 8 | 0.3 | 0.3 | 16 | 2.1 | 5.4 | 0.007 |
| GE5C | GE5C | 5 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.6 | 9.1 | 0.008 |
| GE6C | GE6C | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.6 | 9.1 | 0.009 |
| GE8C | GE8C | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 15 | 5.8 | 14 | 0.018 |
| GE10C | GE10C | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 12 | 8.6 | 21 | 0.024 |
| GE12C | GE12C | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 10 | 11 | 28 | 0.033 |
| GE15C | GE15C | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 18 | 45 | 0.059 |
| GE17C | GE17C | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 22 | 56 | 0.09 |
| GE20C | GE20C | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 9 | 31 | 78 | 0.145 |
| GE25C | GE25C | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 51 | 127 | 0.262 |
| GE30C | GE30C | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 65 | 166 | 0.359 |
| Dimensions (mm) | Load Ratings kN | |||||||||||
| Part # | Ref # | d | D | B | C | dk | rs | ris | a | Dynamic | Static | Weight LBS |
| min | min | « | ||||||||||
| GEH4C | GEG4C | 4 | 14 | 7 | 4 | 10 | 0.3 | 0.3 | 20 | 3.6 | 9.1 | 0.011 |
| GEH5C | GEG5C | 5 | 16 | 9 | 5 | 10 | 0.3 | 0.3 | 21 | 5.8 | 14 | 0.018 |
| GEH6C | GEG6C | 6 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 21 | 5.8 | 14 | 0.013 |
| GEH8C | GEG8C | 8 | 19 | 11 | 6 | 16 | 0.3 | 0.3 | 21 | 8.6 | 21 | 0.03 |
| GEH10C | GEG10C | 10 | 22 | 12 | 7 | 18 | 0.3 | 0.3 | 18 | 11 | 28 | 0.046 |
| GEH12C | GEG12C | 12 | 26 | 15 | 9 | 22 | 0.3 | 0.3 | 18 | 18 | 45 | 0.073 |
| GEH15C | GEG15C | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 22 | 56 | 0.11 |
| GEH17C | GEG17C | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 31 | 78 | 0.183 |
| GEH20C | GEG20C | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.3 | 17 | 51 | 127 | 0.34 |
| GEH25C | GEG25C | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 65 | 166 | 0.45 |
| GEH30C | GEG30C | 30 | 55 | 32 | 20 | 47 | 0.6 | 0.6 | 17 | 83 | 212 | 0.67 |
Company Information
| Changzhou Suma Precsion Machinery Co.,Ltd |
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology
Package
Certifications
FAQ
Q: Why do we choose your company?
A: We always insist quality firstl. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.
