Manufacturer DFFILTRI Replace HC8300FDN16H Pall oil Filter Element
1. Product introduction
The testing center is equipped with advanced testing equipments of filtration performance, the comprehensive testing of the filter element can be implemented, so that the filter elements produced by us possess high performance, long service life, high reliability, the requirements of the customers can be completely met. Welcome to the sample, and negotiate with us about the various non-standard filters design and manufacturing . For many years, our company has done a lot of work on imported filter elements replacement; the performance of filter element can reach the international level.
2. Type code
HYDAC Filter element model
DFFILTRI correspongding model
3. Ordering information
If ordering the filter element of HYDAC filter with model RFBN/HC330/G10... , the matched HYDAC filter element model is 0330R10BN/HC, then the corresponding model of DFFILTRI is DF0330R010BN/HC.
4. Filter material introduction
| W | Metal woven mesh |
| V | Metal fiber sintered mesh |
| P | Cotton wood pulp |
| BN | Micro-glass fiber |
| BH | Chemical fiber |
| W/HC | Metal woven mesh |
| BN/HC | Micro-glass fiber composite filter material |
| BH/HC | Chemical fiber composite filter material |
5. Filter rating & cleanness level
| Hydraulic system |
Absolute filtration rating |
Refer to NAS1638, when the particle is 5μm~10μm, the cleanness level should be as follow |
Refer to ISO4406, when the particle is 5μm~10μm, the cleanness level should be as follow |
| Servo system | 3 | 4 to 5 | 13/10 to 14/11 |
| Proportional system | 5 | 6 to 8 | 15/12 to 17/14 |
| Conventional hdraulic system | 10 | 9 to 10 | 18/15 to 19/16 |
It's not the higher filtrating rating, the better for filter; the β value means the good or bad of the filter.

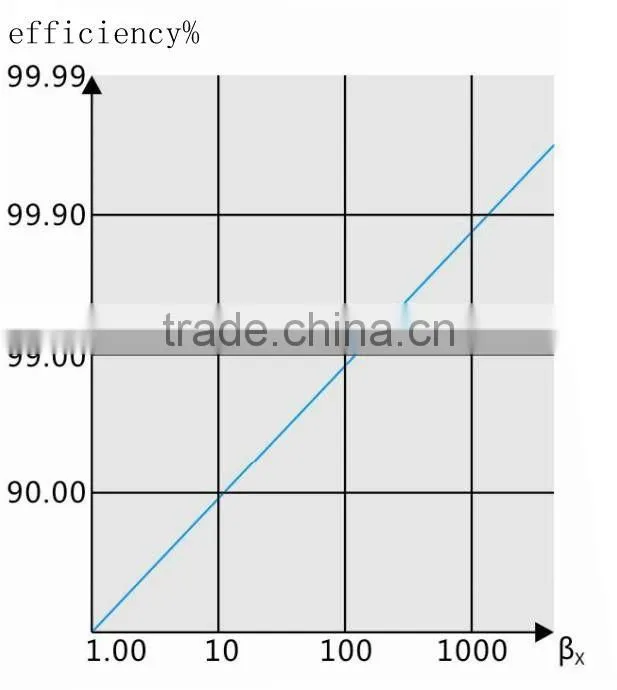

β=filtration ratio, β value is the ratio of particles counts larger than a certain size (μm) in the oil before filtering and after filtering.
The higher the filtration ratio is, more particle counts are seized and intercepted by filter, and accordingly the filtration efficiency is much larger
βX=(n upstreamn=Xμm): (n downstream=Xμm)The "n" means the particle counts size =Xμm from the upstream and downstream of the filter.
E.g.: If the filter upstream has particle counts 100,000 pieces =10μm, the downstream has particle counts 1,000 pieces =10μm, so β10=100,000:1,000=100
Filtration efficiency (%)=100-(100:β)
When βX=2, filtration efficiency = 50,00%
When βX=20, filtration efficiency = 95,00%
When βX=75, filtration efficiency = 98,67%
When βX=100, filtration efficiency = 99,00%
When βX=200, filtration efficiency = 99,50%
When βX=1,000, filtration efficiency = 99,90%
6. Imported filter element replacement
The other Models
0030R
0030R003BN/HC 0030R005BN/HC 0030R010BN/HC 0030R020BN/HC
0030R003BN3HC 0030R005BN3HC 0030R010BN3HC 0030R020BN3HC
0030R003BN4HC 0030R005BN4HC 0030R010BN4HC 0030R020BN4HC
0030R003BN/HC 0030R005BN/HC 0030R010BN/HC 0030R020BN/HC
0030R020P 0030R020W
0060R
0060R003BN/HC 0060R005BN/HC 0060R010BN/HC 0060R020BN/HC
0060R003BN3HC 0060R005BN3HC 0060R010BN3HC 0060R020BN3HC
0060R003BN4HC 0060R005BN4HC 0060R010BN4HC 0060R020BN4HC
0060R003BN/HC 0060R005BN/HC 0060R010BN/HC 0060R020BN/HC
0060R020P 0060R020W
0110R
0110R003BN/HC 0110R005BN/HC 0110R010BN/HC 0110R020BN/HC
0110R003BN3HC 0110R005BN3HC 0110R010BN3HC 0110R020BN3HC
0110R003BN4HC 0110R005BN4HC 0110R010BN4HC 0110R020BN4HC
0110R003BN/HC 0110R005BN/HC 0110R010BN/HC 0110R020BN/HC
0110R020P 0110R020W
0140R
0140R003BN/HC 0140R005BN/HC 0140R010BN/HC 0140R020BN/HC
0140R003BN3HC 0140R005BN3HC 0140R010BN3HC 0140R020BN3HC
0140R003BN4HC 0140R005BN4HC 0140R010BN4HC 0140R020BN4HC
0140R003BN/HC 0140R005BN/HC 0140R010BN/HC 0140R020BN/HC
0140R020P 0140R020W
0160R
0160R003BN/HC 0160R005BN/HC 0160R010BN/HC 0160R020BN/HC
0160R003BN3HC 0160R005BN3HC 0160R010BN3HC 0160R020BN3HC
0160R003BN4HC 0160R005BN4HC 0160R010BN4HC 0160R020BN4HC
0160R003BN/HC 0160R005BN/HC 0160R010BN/HC 0160R020BN/HC
0160R020P 0160R020W
| Honour of DFFILTRI
♦ China's Quality Recognized Top Ten Well-known Filter Brand ♦ 19 years OEM Manufacturing Experience
♦ Testing Center-The Committee of Filtration & Separation of China Technology Market Association
♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation Industry Association |
♦Our product mainly interchangeable with following brand
PALL, HYDAC, MAHLE, PARKER, ARGO, FILTREC, STAUFF, VICKERS, EPPENSTEINER(EPE),TAISEI KOGYO, INTERNORMEN, MANN, DONALDSON, HY-PRO, MP-FILTRI, CAT, BENZ, VOLVO, CUMMINS, ALLISON,CLARK, EPE, SCHROEDER, LIEBHERR, DOOSAN, KOBELCO, JCB, FIEETGUARD, DEUTZ, SOFIMA, DETROIT, SACMI, KUBOTA,SAKURA, WIRTGEN, FAIFILTRI, SCHAEFF, POCLAIN, LUBERFINER, DYNAPAC, PALFINGER, SOFRANCE, VALMET, CECCATO, BOBCA, MCQUDY, COMMERCIAL, TAMROCK, SAUER-DANFOSS, PERKINS, JP-HBYB, LINDE
|
Announcement Dear customers, Recently some companies are illegally embezzling the photos of our product, office building and workshop, those who seriously infringe the right and interests to our reputation, honor, self image, ownership, please keep in mind the sign of the DFFILTRI brand and the image of our company, and be ware of imitations and plagiarism.
We are really sorry to causing any inconvenience to you and your company.
Plagiarist attention, Please stop the infringing act immediately; otherwise we will investigate the law liability through legal channels.
DFFILTER TECHNOLGOY CO., LTD. |
