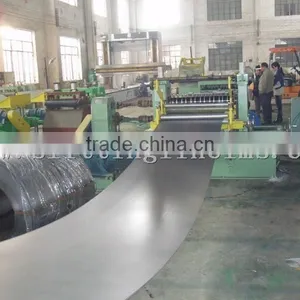

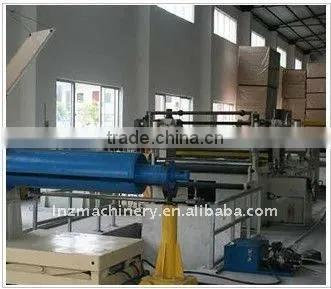

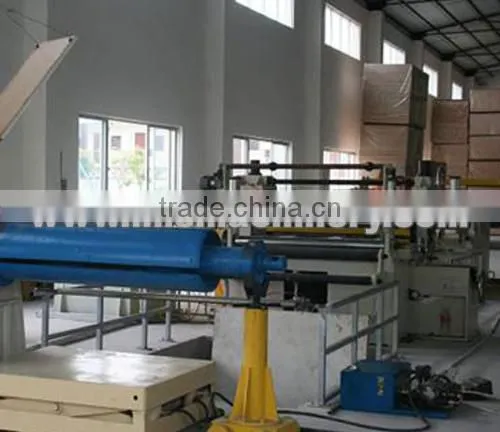

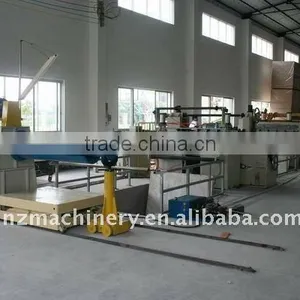

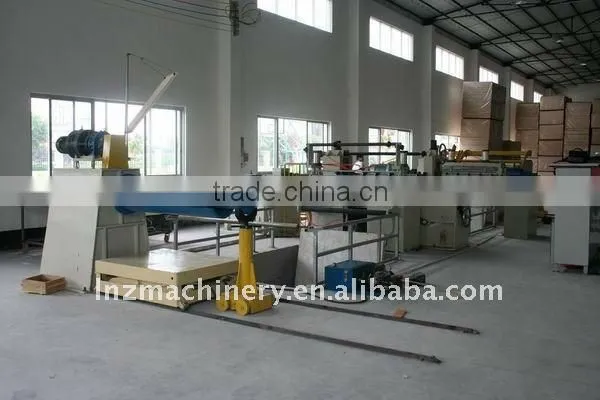

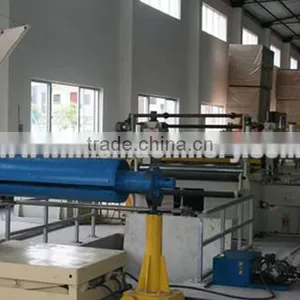

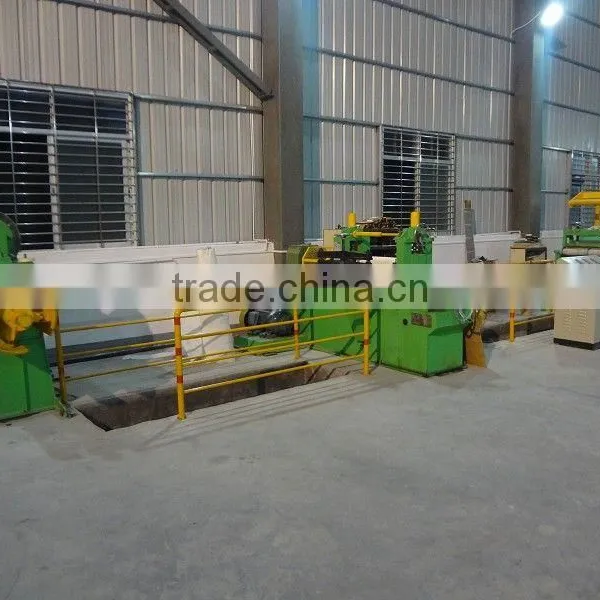

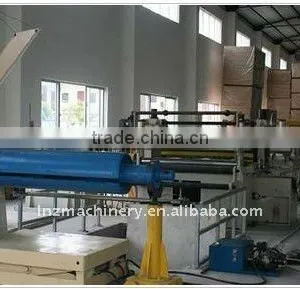

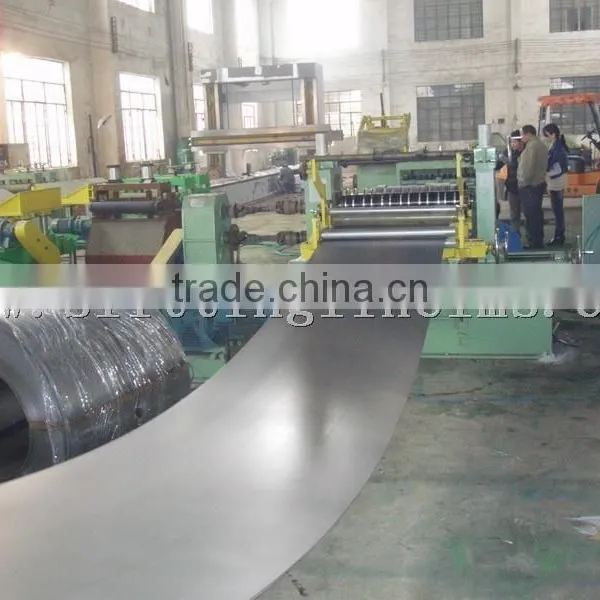

Hot rolled coil, cold rolled coil slitting machine, steel slitting line
VIDEO LINK :
/en/video/slitting-line-cut-to-length-line/slitting-line-(1.0-6.0x1600)--structure)
Capacity
1. Thickness: 0.5mm 6.0mm
2. Metal Sheet Width: 500mm 1500mm
3. Milling Speed: 0 60m/min
4. Material: mild steel, stainless steel
5. Coil Outer Diameter (max): 1800mm
S. No. |
Name of Equipment |
Quantity |
Remark |
1 |
Loading Trolley Car |
1 |
|
2 |
Hydraulic Double-head Decoiler |
1 |
|
3 |
Feeding & Flattening |
1 |
|
4 |
Looping Bridge |
1 |
|
5 |
Deflector |
1 |
|
6 |
Slitting Machine |
1 |
|
7 |
Scrap Recoiler |
1 |
|
8 |
Looping Bridge |
1 |
|
9 |
Tension Station |
1 |
|
10 |
Separating Device |
1 |
|
11 |
Recoiler |
1 |
|
12 |
Hydraulic Support |
1 |
|
13 |
Discharge Trolley Car |
1 |
|
Loading Trolley Car
1. Loading Capacity: 20 Tons
2. Lifting Height: 600 mm
Hydraulic Decoiler
1. Loading Capacity: 20 Tons
2. Expansion Range: 60 mm
3. Expansion Grades: ø460mm-ø520mm, ø620mm, ø770mm
Feeding & Flattening
1. Feeding Roller (2pcs): ø150mm x 1600mm, GCr 15
2. Flattening Roller (5pcs): ø150mm x 1600mm, GCr 15
3. Motor: 37KW
Slitting Machine
1. Slitting blade shaft: ø220mm x 1600mm, 40Cr
2. Blade Diameter: ø380mm
3. Motor: 90KW
Hydraulic Recoiler
1. Loading Capacity: 20 Tons
2. Expansion Range: 28mm (ø480mm-ø508mm)
3. Motor Power: 132 KW DCMotor
Hydraulic System
1. Oil Tank Volume: 500 kg
2. Hydraulic Power Grade: Grade E
3. Vane Pump: 15KW motor
Oil output: 30ML
Nominal Pressure: 70kg/cm²
Max. Pressure: 140kg/cm²
4. Hydraulic parts made in Taiwan
Electronic System
1. Power Supply: 380V, 3 phases, Voltage fluctuates within +10%
2. Control Power: 220V AC / 24V DC
3. PLC Control
LMS Automatic coil metal slit machine / slitting line / slitting machine
