YTO CA702 Crawler Tractor With Rear Ripper

YTO CA702 Crawler Tractor With Rear Ripper thumbnail-1
YTO CA702 Crawler Tractor With Rear Ripper photo-1
US$ 23,100 - 23,120 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Crawler Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Luoyang Truemach Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Crawler Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 51.5kw
Certificate Other, ISO9001
Brand Name YTO
Model Number YTO-CA702
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

YTO CA702,CA802,CA902 Crawler tractor with rear ripper



CA702/CA802/CA902 Crawler tractor



Application Site

 This crawler tractor is suitable for farmland operation as well as earthwork.



Product Description

YTO CA702 Crawler tractor with rear ripper



  1. Our crawler tractor adopts LR108 and LR110 diesel engine, which is fuel efficient and delivers large torque.

  2. The final gear adopts simple beam structure for great reliability.

  3. The utilization of electrical start greatly reduces the driver’s labor intensity.

Technical Parameters

YTO CA702 Crawler tractor with rear ripper



Type

CA702

CA802

CA902

Overall dimensions L×W×H  (mm) (With blade)

4870×2462×2432

4870×2462×2432

4870×2462×2432

(Without blade)

4466×1835×2432

4466×1835×2432

4466×1835×2432

Operating weight (kg) (With blade)

6300/6800

6300/6800

6300/6800

Track gauge  (mm)

1435

1435

1435

Wheel base  (mm)

1622

1622

1622

Track width  (mm)

390

390

390

Ground pressure (kPa) (With blade)

44.2/47.7

44.2/47.7

44.2/47.7

Engine

Engine type

LR4B3-22

LR4M5-22

LR4B3Z-22

Rated power output (kW)

51.5

58.8

66.2

Rated speed (r/min)

2200

2200

2200

Gear box

Number of speed gear (forward/reverse)

4/2

4/2

4/2

Speed range(Km/h) forward/reverse

3.67~9.03/3.51~5.59

3.67~9.03/3.51~5.59

3.67~9.03/3.51~5.59

PTO shaft power (KW)

44

49

56

PTO rotational speed (r/min)

750

750

750

Working device

Type of linkage

three-point class two linkage

three-point class two linkage

three-point class two linkage

Depth control method

Height adjustment

Height adjustment

Height adjustment

Lifting force(KN)

12.8

12.8

12.8

Blade dimensions height ×width(mm)

2462×850

2462×850

2462×950

Drop below ground (mm)

290

290

290

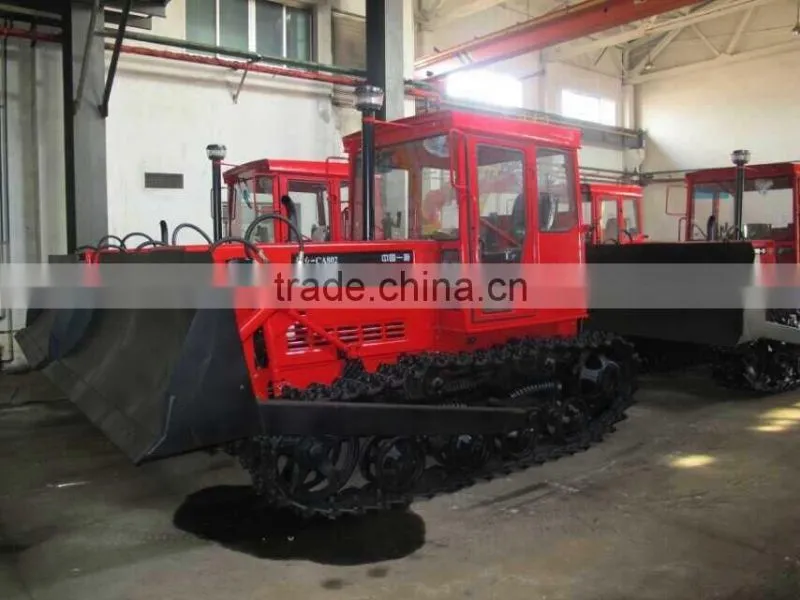

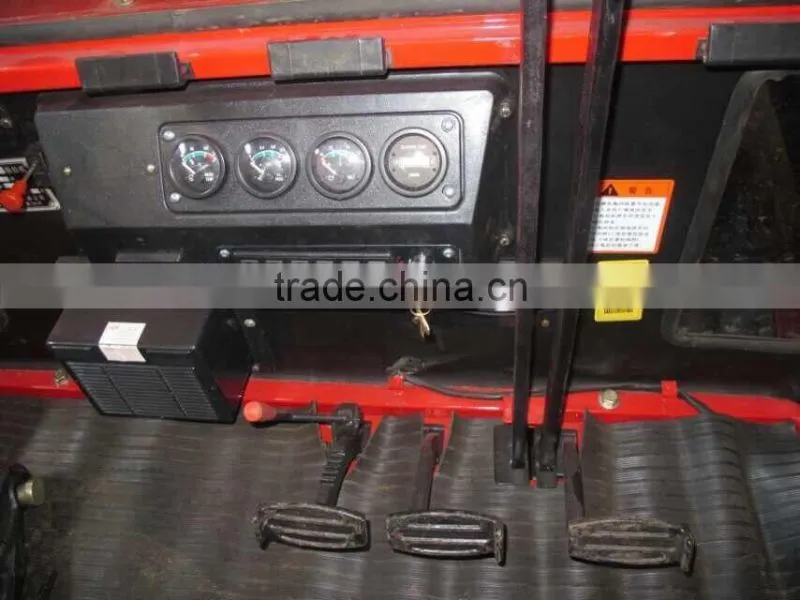

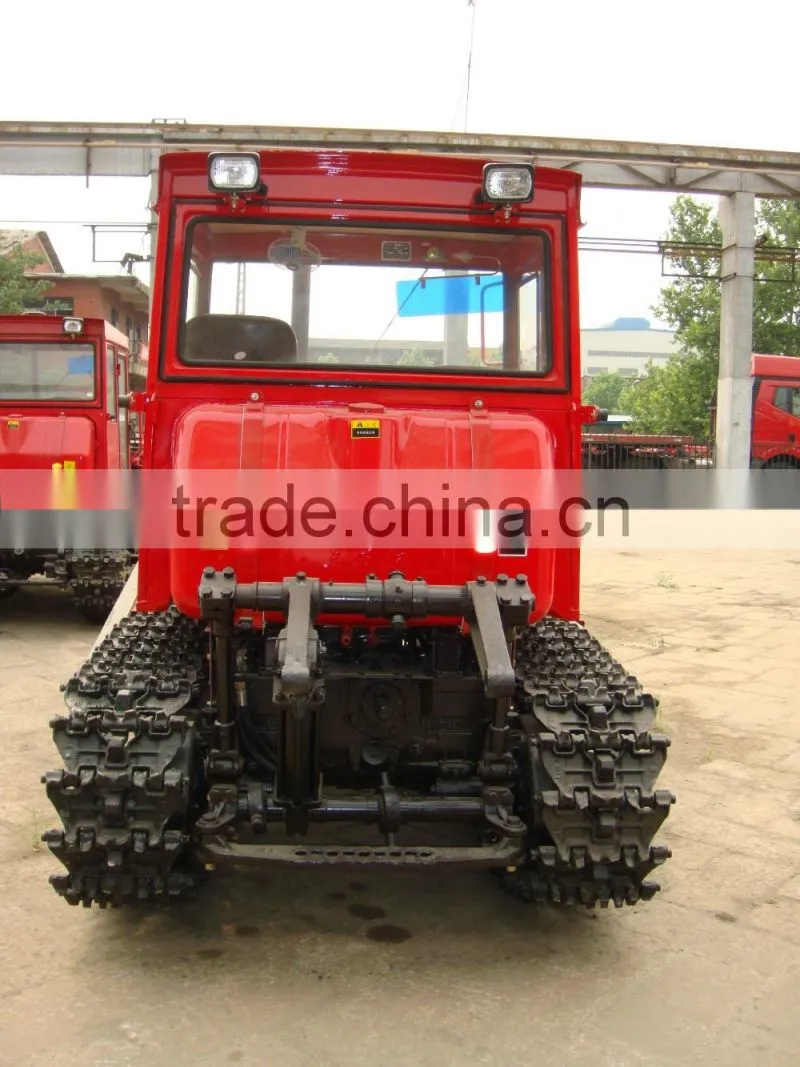

Machine Photos

YTO CA702 Crawler tractor with rear ripper



YTO CA702 Crawler tractor with rear ripper



YTO CA702 Crawler tractor with rear ripperYTO CA702 Crawler tractor with rear ripperYTO CA702 Crawler tractor with rear ripper





Packaging & Shipping

YTO CA702 Crawler tractor with rear ripper

YTO CA702 Crawler tractor with rear ripper

YTO CA702 Crawler tractor with rear ripper











































































































Truemach Warranty:

YTO CA702 Crawler tractor with rear ripper

  1. We grants our clients a 12 month period or 2000 hours warranty for any machine purchased from us.

  2. During the warranty period,In case the defect of material,design,making,assembly or workmanship has occurred with spare parts in normal operation according to the machine manual.

  3. The defective part will be repaired or replaced free of charge at our discretion.

Service Provided

YTO CA702 Crawler tractor with rear ripper

1) We help customer to choose suitable machine.If you visit us,we can give on-site technical consultation, driver training and

 maintenance training in our factory.

2) We make driving test before leaving factory,That makes sure our client use the machine normally.customer will receive machine as “0”hour all new condition.

3) We'll supervising goods ship in to container & take photos for customer.Our powerful shipping agency will offer be

st sea freight fee and responsible for detail treatment to goods.

4) Operation manual in English provided.If you need other language manual,we can provide you based on adding

little cost.

5) We prepare free spare parts in a toolbox for customer for emergency use.

6) We make record for every machine chassis no.and tracing them to get the latest information about the machine.

And give the best service timely.

7) Exclude the guarantee period, you can buy parts from us at moderate cost price. We promise support service for

the machine till it reject.
