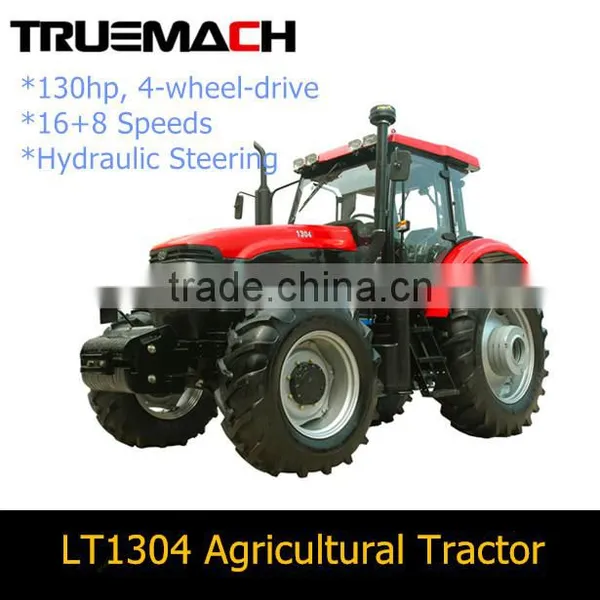

130HP Agricultural Farm Tractor With 4 Wheels Drive

130HP Agricultural Farm Tractor With 4 Wheels Drive thumbnail-1
130HP Agricultural Farm Tractor With 4 Wheels Drive photo-1
US$ 17,500 - 22,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Luoyang Truemach Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4-wheel-drive
Power(W) 95.6kw/130hp
Certificate CE
Brand Name TRUEMACH
Model Number LT1304 agricultural tractor
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

LT1304 Agricultural Tractor, 4WD type tractor for dry and paddy field and for transportation. It can be used for verious farm working with many implements, such as plough, harrow, harvest machine, flail mower ,trailer etc.

Tractor Model

LT1304
Drive Type

4x4
Overall dimensions (mm)

4650x2160x2970
Wheelbase (mm)

2449
Front wheel tread (mm)

1610
Rear wheel tread (mm)

1620-2020
Min. ground clearance (mm)

430
Min. steering radius (mm)

5.5±0.2
Min. operating weight (kg)

4550
Transmission gears (forward+reverse)

16+8
Speed range
Forward:1.58-33.69km/h; Reverse:2.41-34.67km/h
Engine model

YTO LR6B3-23
Rated power (kW)

95.6
Rated rotation speed (r/min)

2300
Tyre spec.(front/rear wheel)
14.9x26/18.4x38
Steering mode

Full hydraulic front wheel steering
Max. lift capacity (kN)

28
Power take off

Rear-mounted, independent type; 760/850rpm, or 540/1000rpm (6-spline)
Max. traction force (kN)

32
Note:
1.For even greater productivity a range of optional equipment is available including front weights, rear-wheel weights, two-post folding ROPS frame. For full details please contact us freely.
2.Every effort has been made to ensure that the information contained in this publication is as accurate and current as possible. However, inaccuracies, errors or omissions may occur and details of the specifications may be changed at any time without notice. Therefore, all specifications should be confirmed with us prior to any purchase.

Main Features

1) Adopt YTO diesel engine, good reliability, large reserves of torque, low fuel consumption , high economic efficiency.

2) Double-function clutch, operate independently ,high transmission capacity, comfortable operation.

3) Gearbox using 4x(4+2) engaging sleeve, shuttle-type gearshift, 16 forward gears,  8 reverse gears.

4) Independent power take off device, smooth transmission, large capacity.

5) Full hydraulic front wheels steering, independent oil circuit for steering system, reliable and save energy.

6) Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good.

7) Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned.

8) Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio.

9) New streamlined appearance, generous, modern fashion.

Detailed Images

Powerful Engine

Name: LR6B3-23

Brand: Dongfanghong (YTO)

Original: China

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 16F+8R sliding sleeve shift. In-line, water-cooling, 6-cylinder, 4-stroke, direct injection, natural aspration.

Reliable Chassis

Name: LT85-100 Series Chassis
Brand: TRUEMACH
Original: China
Domestic famous FOTON technology  chassis, good reliability and lasting performance.

High-efficiency Lifter

Name: High pressure lifter
Brand: TRUEMACH
Original: China
Domestic high-efficiency lifter,  flexible operation, cost-effective and simple service maintenance.

Comfortale Operator's Cab

Name: Cab
Brand: TRUEMACH
Original: China
Comfortable  humanized operator's sea, and cab installed with air-conditioner, DVD, USB socket, heater, inner trimming, etc.

Our Service

TRUEMACH Warranty:

Each model is manufactured to meet international standards of safety and quality. Spare parts are readily available worldwide and a sufficient inventory of parts is maintained in our warehouse to meet the urgent needs of customers.

All machines excluding spare parts are guaranteed one year. Spare parts can be replaced on favorably for the buyer. within gurantee period, if the products have problem resulted from parts qulaity, we will supply new free parts; over guarantee period,supply of required spar parts will be guaranteed for 10 years.

Packing & Delivery
Packaging
Size
4650(L) * 2160 (W) * 2970 (H)
Weight
4.55 T



Packaging Details
The normal package is in nude complete packing (01unit/1x20'GP; 02unit/1x40'HC). If large order quantity, SKD/CKD can be operated according to customers special request.
