33ton Garbage Compactor,Sanitary Land Fill Compactor,Refuse Compactor

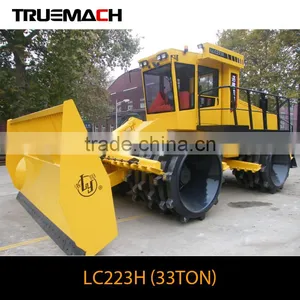

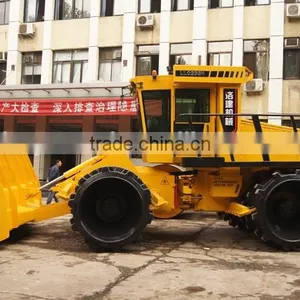

33ton Garbage Compactor,Sanitary Land Fill Compactor,Refuse Compactor photo-1

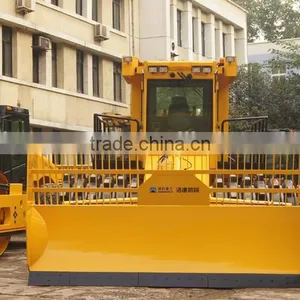

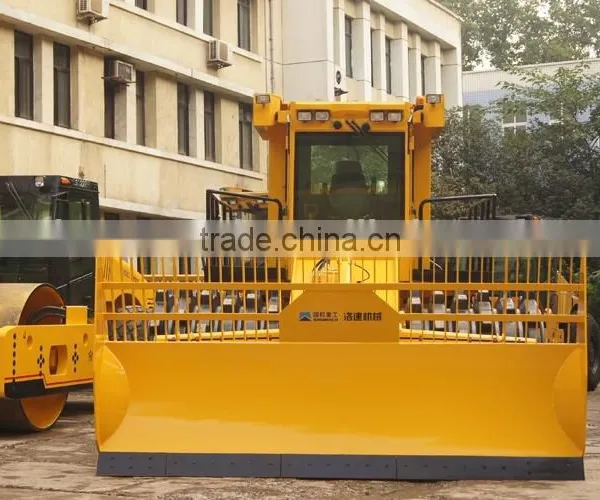

33ton Garbage Compactor,Sanitary Land Fill Compactor,Refuse Compactor photo-2

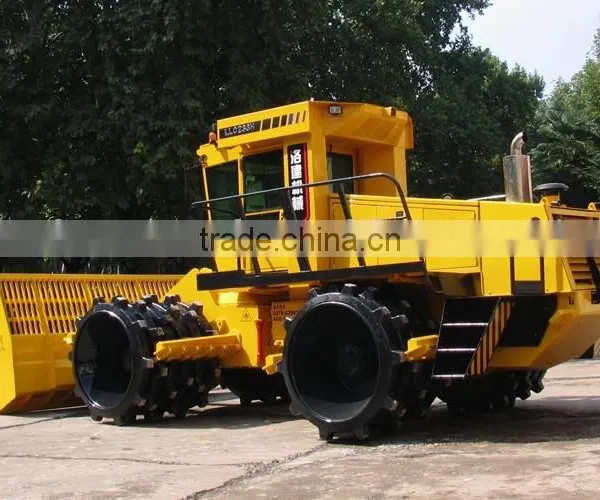

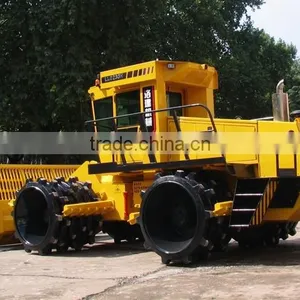

33ton Garbage Compactor,Sanitary Land Fill Compactor,Refuse Compactor photo-3

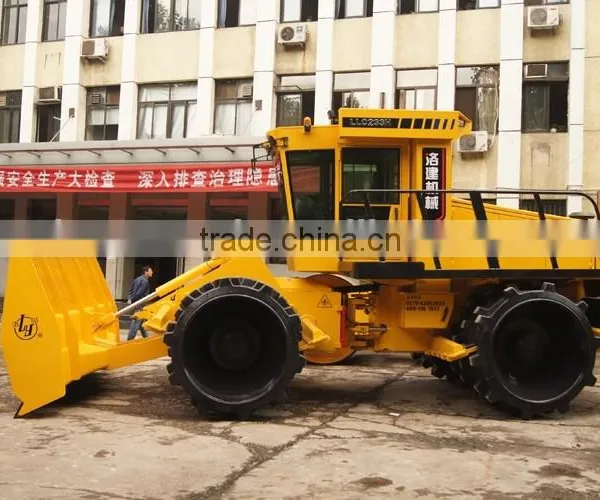

33ton Garbage Compactor,Sanitary Land Fill Compactor,Refuse Compactor photo-4

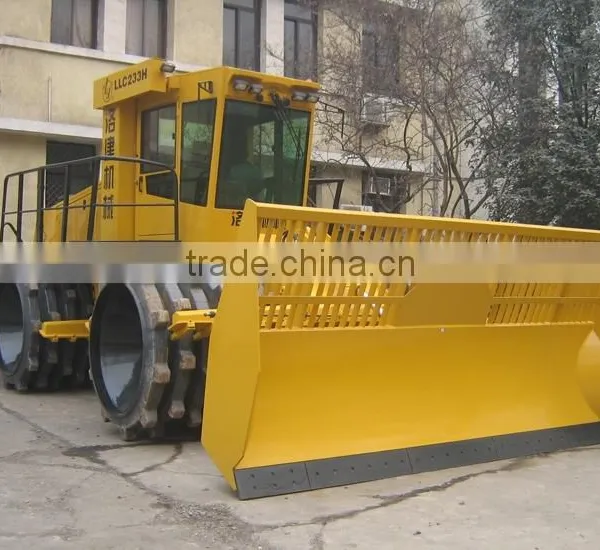

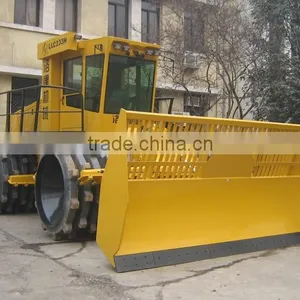

33ton Garbage Compactor,Sanitary Land Fill Compactor,Refuse Compactor photo-5
US$ 238,000 - 240,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Refuse or garabage compactor
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Refuse or garabage compactor
Power Type Diesel
Brand Name TRUEMACH
Model Number LLC233H
Place of Origin Henan, China
Power(W) 250KW
Dimension(L*W*H) 8520X3620X3750
Weight 33Ton
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

33TON LANDFILL COMPACTOR LLC233H


Product Application:

The landfill compactors are essential equipments for refuse landfill site. It has the functions of spreading, pulverizing demolishing and compacting the refuse.It help to save the land, protect the environmental and extend the operating life of the refuse landfill site.


SPECIFICATIONS FOR 33 TON LANDFILL COMPACTOR LLC233H
1.
Operating mass
33ton
2.
Rolling width
3.8m
3.
Max.travel speed
0-8km/h
4.
Gradeability
100%
5.
Dozer blade height*width
1980*4000mm
6.
Wheelbase
3500mm
7.
Clearance
600mm
8.
Wheelwidth
1350/1130mm
9.
Wheel diameter
1620mm
10.
Teeth No. per wheel (F/R)
60/50
11.
Diesel engine power
250kw
12.
Diesel engine model
QSM11/WP12N
13.
Overall dimension at dozer blade
8250*4000*3750mm
14.
Overall dimension at front wheel
8250*3630*3750mm

Main Features

1,CUMMINS Tier II emission or WEICHAI Domestic III emission electronic-controlled diesel engines.

2,Four separate hydrostatic travel drive systems are controlled Computerized SAUER Non-feedback Proportional Electric Control system.

3,The high wear life teeth. The two scraper bans and tow wire cutters per wheel.

4,Hydraulic steering and blade lifting system is driven by a piston pump with load sending system.

5,Sealed and comfortable driver’s cabin with dual sides of he doors. Air conditioner with heated and cooled system.

6,Integrated Roll-Over Protective Structure (ROPS), sealed and arc type tube design of machine basis.

7,In behind of reverse-mounted engine, the take-off gearbox drives the hydraulic pumps. Walking corridors and protective ladder in both sides.


8,Infrared vehicle video monitor system and backup buzzer.

Certifications
Detailed Images

Engine

Original Cummins Engine QSM11

Safe handrail


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Advertising photos and paper materials support.

* Visit our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas for batch orders.

Packing & Delivery
Packaging



Packing

method



Neccessary spare parts are packed in wooden box.
The normal package is nude packed.
