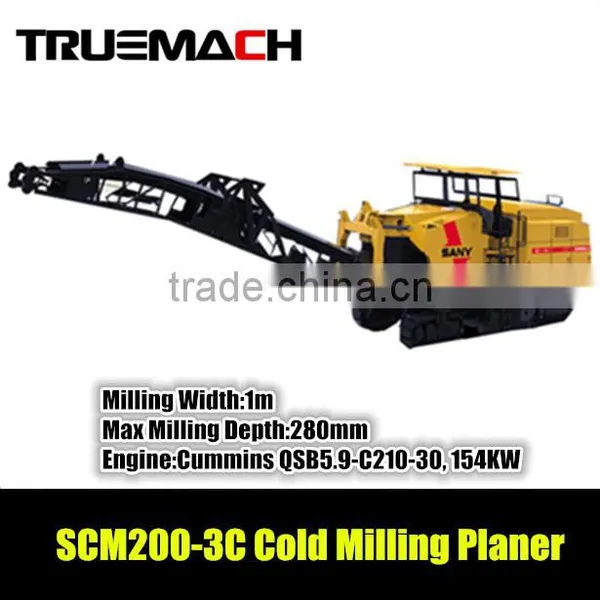

Help CenterSCM200-3C 1m Millling Width Cold Milling Planer Machine
Related Products
-
LDD612H 12T Hydraulic Double Drum Vibratory RollerUS$ 72,000 - 75,000MOQ: 1 Unit -
LDD610H 10Ton Hydraulic Tandem Double Drum Vibratory RollerUS$ 65,000 - 68,000MOQ: 1 Unit
-
LTC208H 8ton Full Hydraulic Double Drum New Road Roller PriceUS$ 63,670 - 64,700MOQ: 1 Set
-
3ton Combined Road Roller Compactor With 3pieces Rubber TiresUS$ 11,500 - 12,000MOQ: 1 Set
-
LTC203P 3Ton Combination Road Roller for SaleUS$ 19,000 - 21,000MOQ: 1 Set
Sany SCM200-3 cold planer adopting the mechanical belt drive realizing the construction efficiency that is over 1.3 times higher than the hydraulic drive and about twice higher than the chain drive;
The 200hp cold planer adopting the four-wheel hydraulic drive technology realizes the theoretical gradeability up to 75% and the maximum tractive force up to 9 t;
Reliable
Adopting the globally top-level drive belt that resists high temperature and shock because its strengthening layer is made of materials for flask vests;
Adopting the imported conveying belt that has strong resistance to tension because it is made of special materials with abrasion-resistance technologies;
Equipped with a water spraying system including a sturdy and durable irony water tank and an imported double-parallel-pump system;
Adopting high-strength abrasion-resistant steel plates at key positions to ensure high strength and long service life of the machine.
High Performance
Maximum milling depth of 280mm means that only a single pass is required to mill the surface course, binder course and base course;
Having the minimum turning radius of only 0.78 m and able to complete milling work in narrow areas;
Having a rotor with a load ratio of 9.2 t/m and able to excellently complete the construction of concrete and modified asphalt roads and other hard roads;
Equipped with a high and efficient quickly-disassembled conveying system in which the conveyor is 4.5 m high and can be disassembled only within 5 min.
Intelligent
Equipped with the pioneer integrated leveling system whose leveling effect to reach the globally top level and which is featured by a high integration level, friendly interface and easy operation;
Having a comprehensive fault diagnosis function realizing automatic alarming and convenient troubleshooting;
Equipped with intelligent equipment management system, convenient for the customers to check the working states based on real time.
Quick Maintenance
Equipped with an engine oil level gauge, hydraulic oil level gauge, coolant level gauge and air filter alarm and designed visually to ensure that the daily check can be completed easily within 1 min;
Equipped with centralizedly-arranged air, diesel and engine oil filter elements to ensure easy access and quick replacement.
| Engine manufacturer/model | Cummins QSB5.9-C210-30 |
| Engine efficient mode | 154KW/210HP/2200rpm |
| Engine economic mode | 152kW/207HP@2000rpm |
| Full-load fuel consumption | 34.5L |
| Milling width | 1000mm |
| Milling depth | 0~280mm |
| Traveling/milling speed | 0-6 km/h |
| Ground clearance | 320mm |
| Transport weight | 15200 kg |
| Working weight | 15800 kg |
| Fuel tank | 400 L |
| Hydraulic oil tank | 80 L |
| Water tank | 700 L |
| nveying height | 4500 mm |
