Specifications
solar system 1kWAjustable Solar Panel Rack
Fast connection LED lamp
DIY installation
Output Voltage AC230/120V
solar system 1kw
Power Supply: 62kWh per month

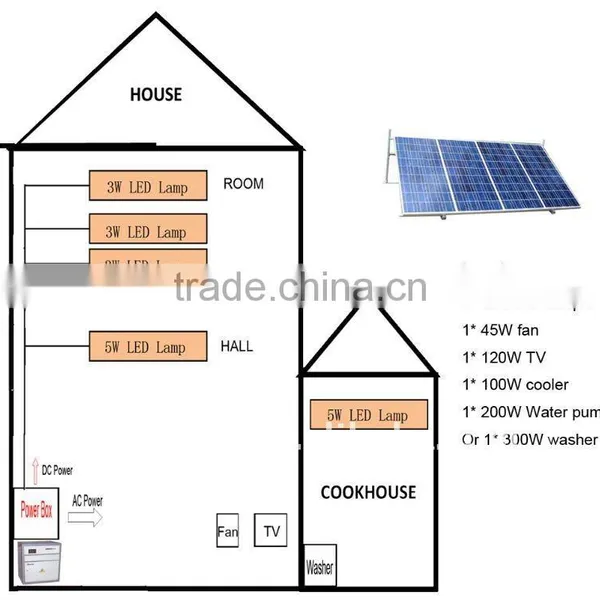

You can use: 5 sets of 5W LED each work 6~8 hours per day, Plus 1 set of 45W fan, Plus 1 of 120W TV, and 1 of washer machiner or 1 water pump, plus 1 150L refrigerator work 24 hours per day
You can installation the system yourself
You can use power in romote area, without of costs of long distance cables like grid power net
You can use power free of money
You can save money when you use solar system even there already has grid power
You can use solar system everywhere and any time ony if have sun
You can use power without of noise, without of polution
System Includes
Solar Panel 600W solar panel with Rack
Power machine which combined with inverter 1000W, controller, battery 24V/250Ah
Connection cable for inverter and Solar Panels
Optional for : LED lamps, TV, fan and so on
Solar Home System Technical Characters:
High efficiency solar module from 15Wp to 300Wp, CE, UL, TUV approved
LED Display monitoring system working condition, like power available, power low and so on
Both DC and AC output, widely used for rural homes powering lamp, fan, washer, TV, cooler
Anti corrosion mounting system, hot galvanized metal, aluminum material and stainless accessories sure its long life span
Adjustable Solar panel rack, widely used for different places; Various installation way like wall mounted, grounding or installed by standing pole
Easy DIY installation design; Integration battery, controller, inverter and all electric accessories inside in one body, which also has fast connection terminals, switches, breakers
Compact design of Power box, with full range of protections and lockable door for battery compartment, the system is powerful and safety for power use. It would be put on table or mounted on the wall
Portable and Easy disassembly, solar panel rack was easy disassembly design, it would not need to disassemble the panel and rack for taking; And all cables, LED lamps are fast connection terminals
Complete Solution for a rural home, we supply compact solar system together with LED lamps, DC fan, TV and Receiver and so on
Technical Specifications
System Model |
Unit |
JNISG06K |
Support Loads | ||
5*5W LED lamp work 4- 6hrs/Day |
1 of AC 45W fan work 6 ~8hrs/Day |
|
1 of AC 120W TV work 3~4 hrs/Day |
1 of 100W cooler work 24 hour/day |
|
1 of 200W water pump OR 300W washer work 0.5 hour/day | ||
Power Output | ||
Power Supply |
kWh |
62kWh/M |
Max power |
W |
AC1000W |
Output Voltage |
V |
AC230 |
Solar Module | ||
Peak Power |
Wp |
Mono Silicon 150Wp |
Quantity |
Pcs |
4 |
Power Machine (Combined with Controller/ Inverter/ Battery) | ||
Controller DC input Voltage |
V |
24V |
Controller DC input current |
A |
30A |
Inverter AC Output Power |
W |
AC1000W |
Battery Capacity |
/ |
AGM VRLA ,24V/250Ah |
Machine Size |
mm |
L550*D450*H1000 |
Weight |
kg |
200 |
Installation Method |
/ |
Floor Standing |
Accessories |
/ |
Switch, Breakers, meters, LCD display, AC outputs |
Panel Mounting Rack | ||
Installation Method |
/ |
Grounding |
Material |
/ |
Hot galvanized metal/aluminum |
Accessories | ||
Cables |
/ |
Panel---Power Machine fast connection 15 meters |
Optional |
/ |
5W LED bulb with cable |
System Includes |
Solar Panels and Rack, Power machine, cable |
|
