1.Features of hot selling Jntech brand 11kw three phase ac solar water pump inveter solar energy power inverter for agriculture irrigation
1). Wide MPPT range,tracking the max. power point to improve the efficiency of the Whole system.
efficiency is more than 99%.
2). With IP65 design, It can be installed outside with good waterproof.
3). Matching for any ordinary three phase 50Hz/60Hz pumps.
3). Full protection function can keep the system always in safe operation.
4). Three years warranty time.
5). Modular design,easy to install,operate and maintain.
2.Technical Specifications of hot selling Jntech brand 11kw three phase ac solar water pump inveter solar energy power inverter for agriculture irrigation
| Model | JNP11KH |
| d.c. Input | |
| d.c. Max .Input Voltage | 880Vdc |
| Recommended MPPT Voltage | 460~850Vdc |
| d.c. Max. Input Current | 24.4A |
| Max. MPPT Efficiency | 99% |
| Number of String | 3 |
| a.c. Output | |
| Max. Motor Output Power | 11kW |
| Rated Output Voltage | 380~460Vac, 3-phase |
| Output Frequency Range | 0~50/60Hz |
| Rated Output Current | 21A |
| Mechanical Data | |
| Dimensions(W/H/D) | 305x430x190 mm |
| Weight | 15.1kg |
| Max. Efficiency | 98% |
| Protection Class | I |
| Protection Level | IP65 |
| Operating Temperature Range | -25℃ to +60℃,above 60℃ need derate operating |
| Cooling Method | Force cooling |
| Display | LCD |
| Communication Interface | RS485/GPRS |
| Altitude | 3000m; above 3000m need derate operating |
| Noise Emission | <50dB |
| Compliance | EN 50178; IEC/EN 62109-1; IEC 61800 |
3.Simple introduction of hot selling Jntech brand 11kw three phase ac solar water pump inveter solar energy power inverter for agriculture irrigation

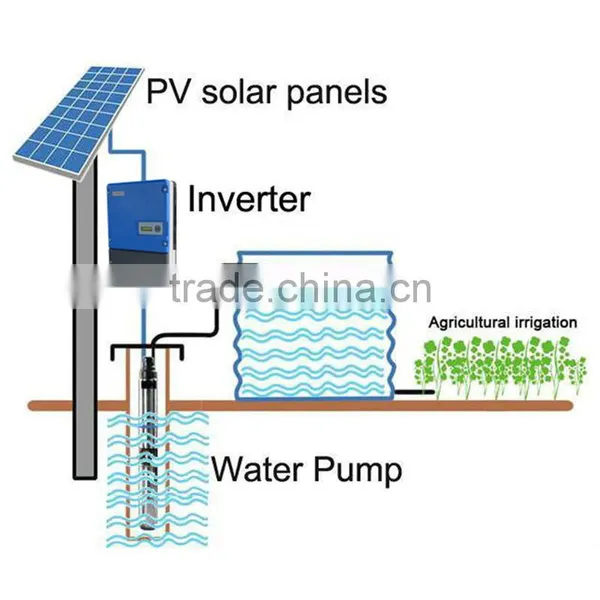

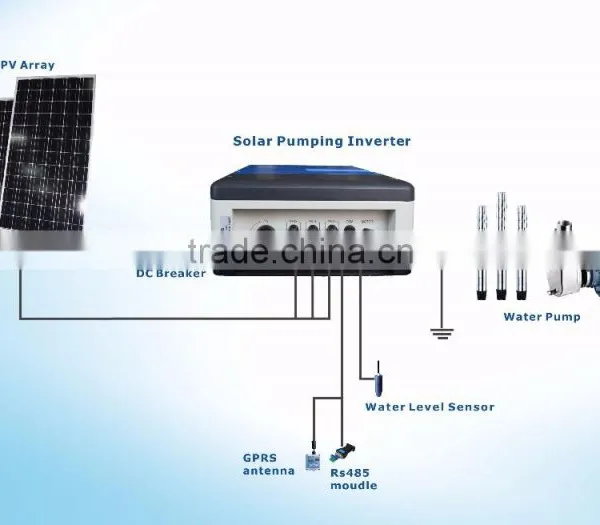

Solar pumping system consists of four parts: solar panels, solar pumping inverter, three phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panels to AC powerwhich drives AC pump to pump water from borehole, river,lake etc to the storage device.
4.Application of Solar Pumping System
6.Production processing:
Design software to make the system configuration automatically.
Monitoring System:
Features:
1).Control the solar pumping inverter remotely;
2).Manage all solar pumping inverters and systems;
3).Check system operating status at any time;
4).Read all system information on PC,Iphone,Ipad and any other electronic device;
5).Get alarm record and error code once the system failed to operate;
6).Analyse the data to check if the system is in good working condition.
Jntech New Energy technology Co., Ltd was established in 2006. which is an engineer oriented high-tech company with a portfolio of diversified products and services.
Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT(BT) of solar power plant to R & D, manufacturing of key equipment and stand alone system solution provider,
Jntech has come a long way in the past 10years.
Numbers of Jntech:
Registered capital: 100 million RMB
Employee: over 200(50% of R&D and technical engineers)
Total EPC projects: 1000MW(grounded/ rooftop)
Residential off-grid system: 40,000 units(over 20MW)
Solar pumping system: over 2200 projects in 30 countries
