Help CenterJNTECH Solar Water Pumping Inverter With IP65 Protection, 55KW
Related Products
-
DC to AC Power Inverter 4000W Solar Pump Inverter; IP65 Protection; MPPTUS$ 480 - 681MOQ: 1 Set -
High-effect Solar Watet Pump Inverter/controller With Wide MPPT and IP65 for AgricultureUS$ 2,320 - 3,291MOQ: 1 Set
-
380v Three Phase AC Solar Water Pumping Inverter; MPPTUS$ 705 - 1,000MOQ: 2 Sets
-
75kW Three Phase AC Solar Pump InverterUS$ 2,800 - 3,000MOQ: 1 Piece
-
High Head Solar Pumping Inverter With Wide MPPT for AgricultureUS$ 2,320 - 3,291MOQ: 1 Set
1.Some Parameters of JNP55KH Solar Pumping Inverter
| Max. Input DC voltage | 880Vdc |
| Recommended MPPT voltage | 460-850Vdc |
| Max. Input DC current | 104A |
| Max. MPTT efficiency | 99% |
| Number of Strings | 1 |
| Max. applicable motor output power | 55KW |
| Rated output voltage | 380-460Vac 3 phase |
| Output frequency range | 0-50/60Hz |
| Rated output current | 104A |
| Dimension(W/H/D) | 390x532x210 mm |
| weight | 34kg |
| Max. efficiency | 98% |
| Protective class | I |
| Protection degree | IP65 |
| Environment temperature | -25ºC-+60ºC above 60ºC need derate operation |
| Cooling method | Natural cooling |
| Display | LCD |
| Communication interface | RS485/GPRS |
| Altitude | 3000m; above 3000m need derate operating |
| Noise emission | <50dB |
| compliance | EN 50178; IEC/EN 62109-1; IEC61800 |

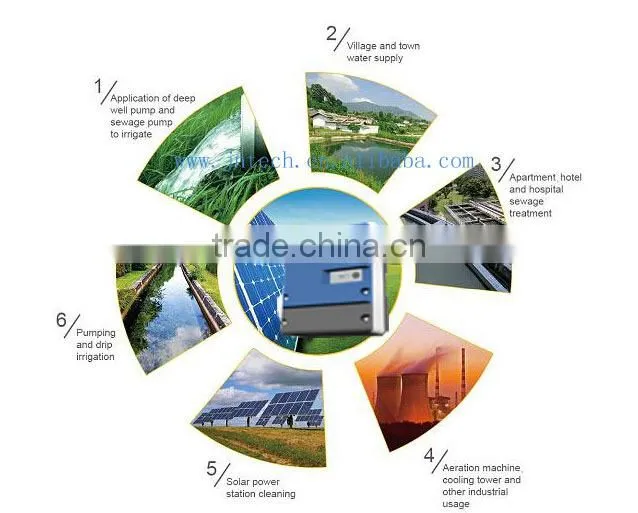

2.Application of Solar Pumping Inverter
Solar pumping system can be applied in the area with sunshine and better to the areas lack of electricity, such as:
•Daily water using
•Agricultural irrigation
•Forestry irrigation
•Desert control
•Pasture aniamal husbandry
•Rural town and village water supply
•Destination of sea water
•Scenic fountain etc.
3.Features of Solar Pumping Inverter
1)Wide MPPT range and VFD function
2)IP65 design for outdoors application
3)RS485 and GPRS communication. Monitor and control the systemremotely
4)Wide application with all kinds of three-phase AC pumps
5)Low maintenance cost
6)Automatically/manual operation mode
7)Built-in data module with system fault and historical operation information
8)Max.operation temperature 60°C
9)Complete system protection function and long lifespan
10)Three years warranty

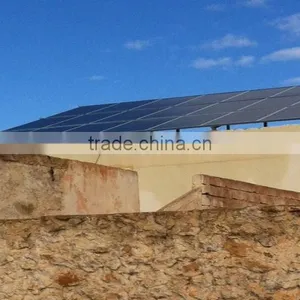

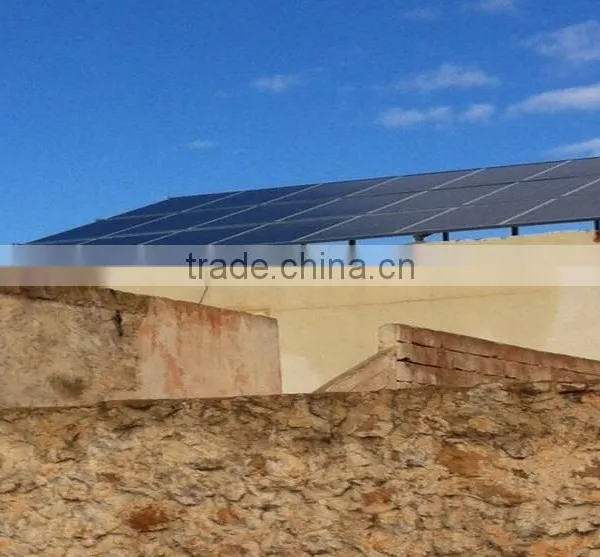

4.Some References Project
5.Others
If you want to get further information about us, please visit our website or contract me. Our comany site:
