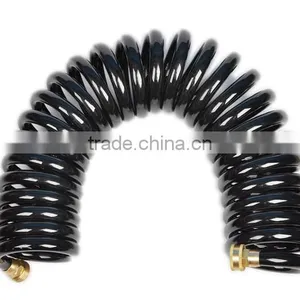

7/16" Black Coil Water Tube With 3/4'' N.H.75 Fitting Ends,Pneumatic Fitting
US$ 3.5 - 16
MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
wanli
Model Number:
PU 98A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Taizhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Polyurethane Spiral Tube, Recoil Hose With Quick Connector(5*8mm*6m),Pneumatic FittingUS$ 0.5 - 16MOQ: 2000 Pieces -
BLue Polyurethane Spiral Tube, PU Coil Hose With Brass Ends&Tail(6.5*10mm*6m),Pneumatic FittingUS$ 0.5 - 16MOQ: 2000 Pieces
-
Moss Green Polyurethane Spiral Tube, PU Coil Hose With Brass Ends&Tail(6.5*10mm*6m),Pneumatic FittingUS$ 0.5 - 16MOQ: 2000 Pieces
-
Orange Polyurethane Spiral Tube, PU Coil Hose With Quick Connector(5.5*8*12m),Pneumatic ValveUS$ 0.5 - 16MOQ: 2000 Pieces
-
BLue Polyurethane Spiral Tube, PU Coil Hose With Quick Connectors(5.5*8mm),Pneumatic ValveUS$ 0.5 - 16MOQ: 2000 Pieces
Place of Origin
Zhejiang, China
Brand Name
wanli
Model Number
PU 98A
Material
Other, polyurethane
Specification
1/2''
Length
25FT
Thickness
2.0mm
Standard
REACH, CE/ROHS
Product Description
Product Description Of The TPU Hose
General:
1. 11.1*15.1mm black coil hose with male and female brass fittings, gasket
2. Raw materials: pu 100% Grade 1 black color
3. Fittings-3/4NH male and female brass connectors devoid of oily residue and free from oxidation
4. Packaging-24 units in master carton(23feet)
5.All materials used for the production of the hose comply with reach regulations
6. working pressure:10bar(145 p.s.i)
7. Burst pressure:min 24bar(348 p.s.i.) at 20ºC
8. Resistance to UV exposure
9. Gasket 3/4'' connector assembled on female connector
10. External diameter of the spiral:4''-4.2''(101-106mm)
A. 23 Feet of the Hose section:
1. Internal diameter:11.1mm
2. External diameter: 15.1mm
3. Maximum ovalization:+/-10%
4. Thickness:2.0mm(+/-0.3%)
5. Overal length of the coil pack:406-432mm
6. Length of the extended hose(fitting excluded):23''+/-1.5%.(7.01m+/-1.5%)
7. The coiling numbers of the spiral(fitting excluded):24--25numbers
B. 15 Feet of the Hose section:
1. Internal diameter:11.1mm
2. External diameter: 15.1mm
3. Maximum ovalization:+/-10%
4. Thickness:2.0mm(+/-0.3%)
5. Overal length of the coil pack:246--272mm
6. Length of the extended hose(fitting excluded):16''+/-1.5%.(4.572m+/-1.5%)
The coiling numbers of the spiral(fitting excluded):16--17numbers
1. 11.1*15.1mm black coil hose with male and female brass fittings, gasket
2. Raw materials: pu 100% Grade 1 black color
3. Fittings-3/4NH male and female brass connectors devoid of oily residue and free from oxidation
4. Packaging-24 units in master carton(23feet)
5.All materials used for the production of the hose comply with reach regulations
6. working pressure:10bar(145 p.s.i)
7. Burst pressure:min 24bar(348 p.s.i.) at 20ºC
8. Resistance to UV exposure
9. Gasket 3/4'' connector assembled on female connector
10. External diameter of the spiral:4''-4.2''(101-106mm)
A. 23 Feet of the Hose section:
1. Internal diameter:11.1mm
2. External diameter: 15.1mm
3. Maximum ovalization:+/-10%
4. Thickness:2.0mm(+/-0.3%)
5. Overal length of the coil pack:406-432mm
6. Length of the extended hose(fitting excluded):23''+/-1.5%.(7.01m+/-1.5%)
7. The coiling numbers of the spiral(fitting excluded):24--25numbers
B. 15 Feet of the Hose section:
1. Internal diameter:11.1mm
2. External diameter: 15.1mm
3. Maximum ovalization:+/-10%
4. Thickness:2.0mm(+/-0.3%)
5. Overal length of the coil pack:246--272mm
6. Length of the extended hose(fitting excluded):16''+/-1.5%.(4.572m+/-1.5%)
The coiling numbers of the spiral(fitting excluded):16--17numbers
