Cheap High Quality Box Die Cutting Machine Corrugated Paper Cardboard Die Cutting Machine
Specifications of Die Cutting Machine :
Product |
Die Cutting Machine |
||||
Model number |
OR-RD-750 | OR-RD-930 |
OR-RD-1100 | OR-RD-1600 | OR-RD-1800 |
Inner size of frame |
750*520mm |
930*670mm |
1100*800mm | 1600x1250mm | 1800x1280mm |
Speed |
26±2 |
23 ±2 | 22±2 | 13±3 | 13±2 |
Creasing length |
<15m |
<25m |
<30m | <50m | <60m |
Motor power |
2200w-6 |
3000w-6 |
4000w-6 | 15000w-6 | 15000w-6 |
Weight |
2000kg |
3000kg |
4000kg | 13500 Kg | 14200kg |
Size |
1.5*1.32*1.6m |
1.7*1.5*1.6m |
2.05*2.06*1.7m | 2.7*2.2*2.2m | 2.9x2.2x2.25m |
Video |
Please contact me |
||||
Features of Die Cutting Machine :
1.Castings of gray cast iron HT250 is then annealed to achieve the cast (including body, pressing frame, etc.) is not easy deformation, fracture.
2.Spindle with four phosphorus chrome steel, after quenching to increase spindle strength, rigidity, hardness is not easy to achieve the effect of deformation
3.The main parts of the gear with four phosphorus chrome steel, it has quenching and tempering treatment.
4.Rail liner machine uses 38 chrome-molybdenum aluminum, nitrided, strengthen the hardness, easy to wear, can make the upper and lower pressure of the machine for a long time to maintain balance and stability.
5.Single plate electromagnetic clutch is sensitive and reliable
6.It has continuous pressure and opening dwell operation, dwell range is adjustable.
7.Centralized refueling hand refueling (optional) lubrication system, smooth, lubrication maintenance system to better ensure passage of maintenance more convenient.
8.Clap triangle limit switches, emergency stop switches, limit switches hand putter, three safety device to ensure safety.

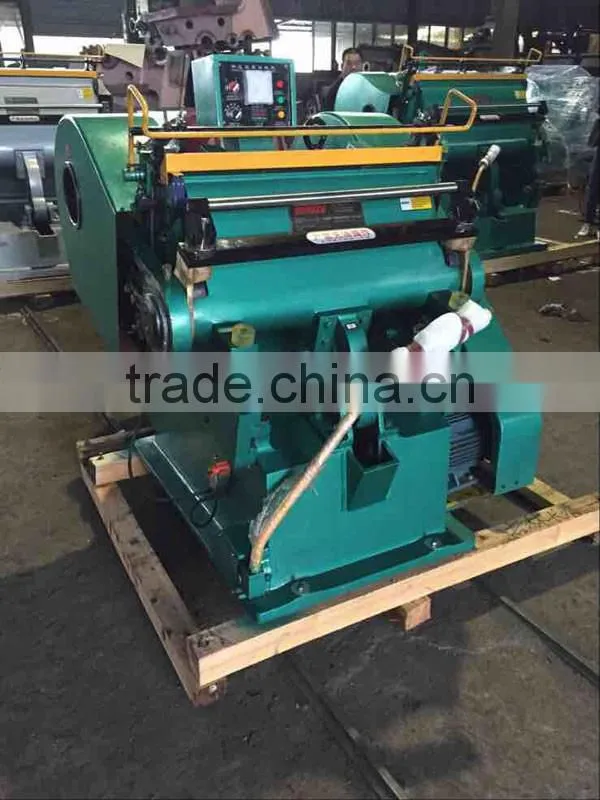

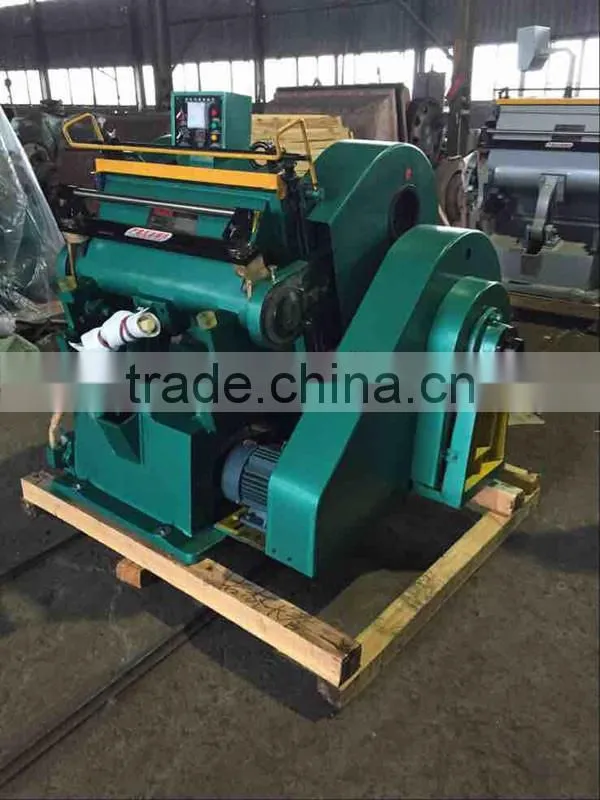

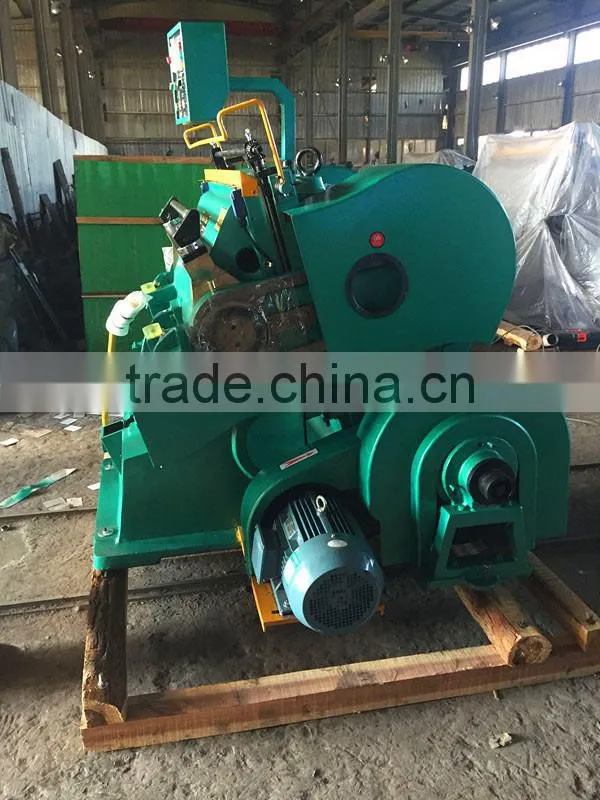

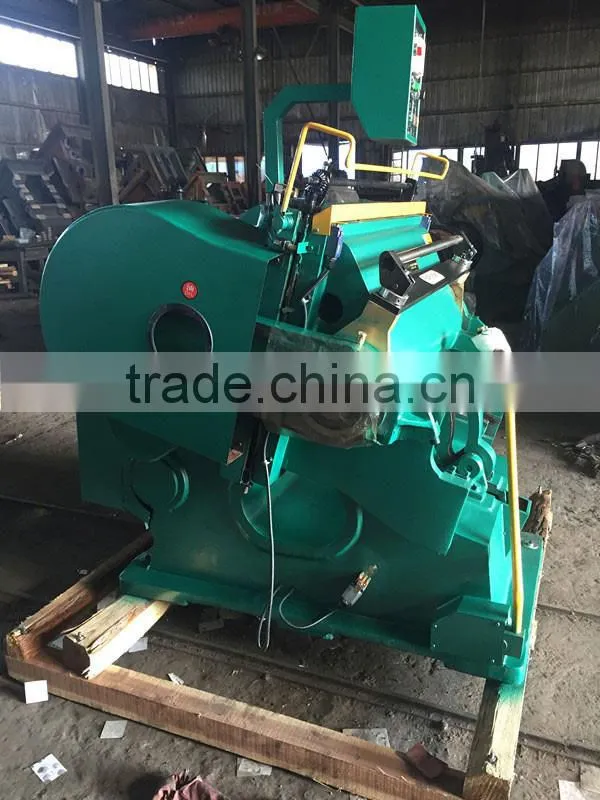

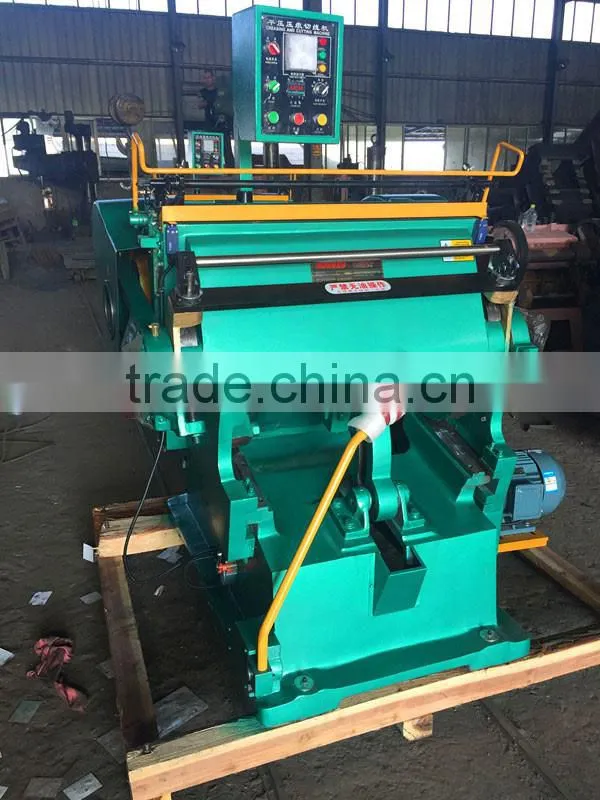

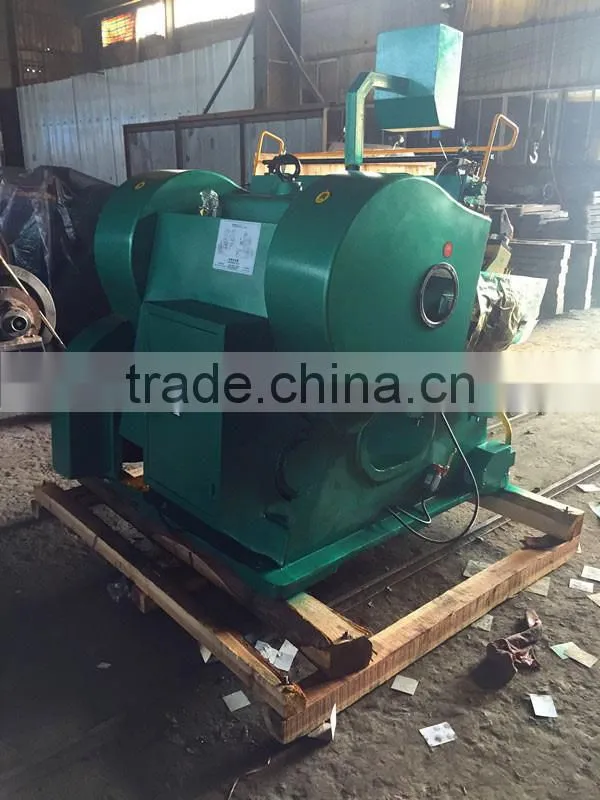

More pictures of Die Cutting Machine
| Packing Detailed | Wooden case for one Die Cutting Machine |
Delivery Detailed |
According to order |
♥24 hours on-line service for you
♥Professinoal peson reply your questions
♥One year warranty for you
♥Perfect and careful after-sale service
Zhengzhou Allraise Machinery Company Ltd have been designing, developing, manufacturing and marketing Machinery for more than 10 years. Firstly we mainly sever china mainland customers, In order to adapt to world market development, now we do the exporting business directly. After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system. So choose us, equaling to choose the competitive price and stable quality both.
Q: Why don't person reply to me?
A: Our person is 24hours on-line. If nobody reply you , maybe he has other bussinesses temporarily. So please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get lower price and better quality, if you choose us.
