Specifications
stainless steel wire1.ISO9001 9002
2.Free Sample offered
3.the shortest delivery
4.HIGH QUALITY,LOWEST PIRCE

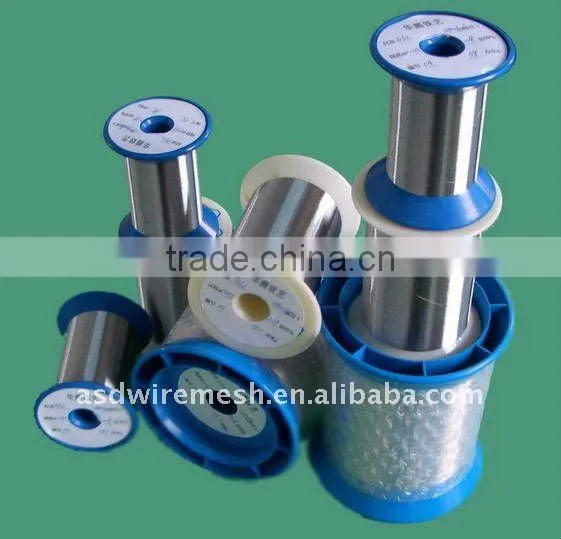

Stainless Steel Wire
Product Instructions:
1) Materials for Stainless Steel Wire: 201, 202, 301, 302, 304, 304L, 316, 316L etc.,
2) Standard:AISI, ASTM, DIN, GB, JIS, SUS
3) Diameter: 0.1mm-15.0mm
4) Condition: soft wire, hard wire,according to the processing differences.
5) Surface finish: electrolysis bright, bright, matt.
6) Packing: Woven bag, coil, others are also available according to client' requirement
specification:
AISI Grade |
Chemical Composition(%) |
||||||||
|
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
|
304 |
0.08 |
1.00 |
2.00 |
0.04 |
0.030 |
8.00~10.50 |
18.00~20.00 |
- |
|
304L |
0.030 |
1.00 |
2.00 |
0.04 |
0.030 |
9.00~13.00 |
18.00~20.00 |
- |
|
316 |
0.08 |
1.00 |
2.00 |
0.04 |
0.030 |
10.00~14.00 |
16.00~18.00 |
2.00~3.00 |
|
316L |
0.030 |
1.00 |
2.00 |
0.04 |
0.030 |
12.00~15.00 |
16.00~18.00 |
2.00~3.00 |
|
430 |
0.12 |
0.75 |
1.00 |
0.04 |
0.030 |
0.60 |
16.00~18.00 |
- |
|
410 |
0.15 |
1.00 |
1.00 |
0.04 |
0.03 |
0.60 |
11.50~13.50 |
- |
|
Quality assurance:Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable.
Peculiarity:
Stainless Steel Wire enjoys many featues,such as wear-resistant, high intensity, small Stretch ability; because the fine wire, oil and ink is easy to pass; Mechanical and chemical Properties of wire mesh is stably, also the dimension definition is stably.
Applications:
Stainless Steel Wire is used in wiredrawing, weaving of wire mesh, beam of cabinet, steel wire rope, filter material and equipment, spring, etc.
Also,Stainless Steel Wire is the good materials for making Stainless Steel Welded Wire Mesh.
