Long Span Fabricated Light Structural Steel Workshop for Sale

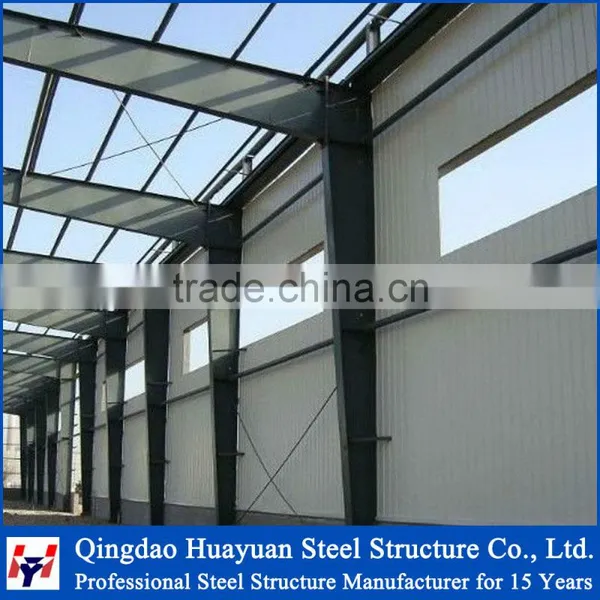

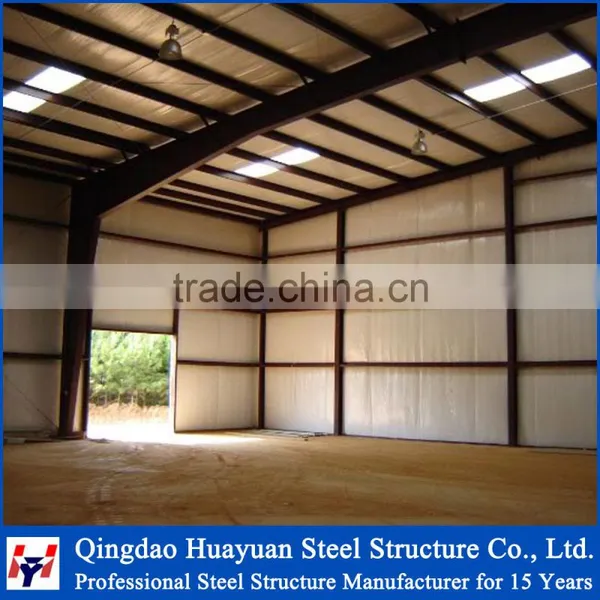

Steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors.
Structural steel warehouse is a new type of building structure system . The main steel frame is formed by linking up H-section,Z-section and U-section steel components while roof and wall using a variety of sandwich panels.
Main Steel Frame System | |
Main structure |

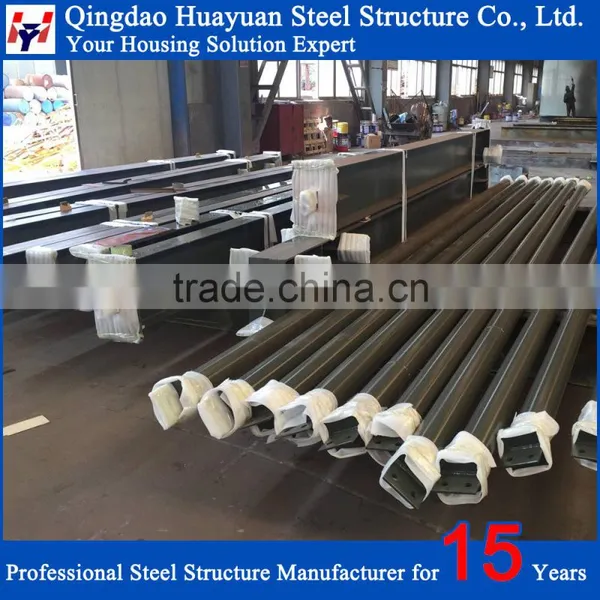

H section steel Q345, alkyd painting, two primary painting, two finish painting. |
Roof purlin |
XZ160*60*20*2.5, galvanized |
Wall purlin |
XZ160*60*20*2.5, galvanized |
Intensive bolt |
Grade 10.9 |
Turn buckle bolt |
M20+2, steel Q235, processing |
Anchor bolt |
M24, steel Q235, processing |
Ordinary bolt |
Galvanized bolt M20 |
Ordinary bolt |
Galvanized bolt M12 |
Brace nut |
Galvanized bolt M12 |
Bracing System | |
Cross brace |
Φ20 round steel bar Q235, process and painted (alkyd painting) |
Angle brace |
L50*5 angle steel Q235, process and painted (alkyd painting) |
Column bracing |
Φ25 round steel bar Q235, process and painted (alkyd painting) |
Tie bar |
Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
Batter brace |
Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
Wall & Roof System | |
Roof panel |
50mm EPS sandwich panel, color steel plate 0.4/0.4mm, density 12kg/m³, Guanzhou brand |
Wall panel |
0.5mm color steel plate, Guanzhou brand |
Edge cover |
0.4mm color plate, angle Alu. |
Fittings & accessories |
Nails, glue etc. |
Unpowered ventilator |
Φ600, stainless steel |
Skylighting band |
1.2mm FRP,double layer |
Sliding door |
sandwich panel door |
Roof drainage system | |
Gutter |
0.8mm color steel plate |
Rainspout pipes |
Φ160 PVC pipe |
Advantages:
1. Environmental friendly
2. Lower cost and maintenance
3. Long using time up to 50 years
4. Stable and earthquake resistance up to 9 grades
5. Fast construction, time saving and labor saving
6. Good appearance
Shandong Huayuan Steel Structure Co, .Ltd, established in September 2000 with manufacturing base in Liaocheng city, Shandong Province, is a new professional high-tech enterprise that specialized in designing, manufacturing, processing and installing of various steel structure projects, prefab houses and container houses.
Certifications:
CE EN1090 certification
Safety Production License (No.150090-03)
State Qualification Class One (No.B1084037152301-6/2)
Quality Management System Certification ISO9001:2008
Environment Management System Certification ISO14001:2004
Occupational Health and Safety Management System Certification
How do we cooperate on certatin project?
Firstly, please send us your project details and your requirements. Then we will design accordingly, free of charge. Afterwards, please check and confirm whether you like the drawings. If not, we shall get the drawings revised until your confirmation. Finally we make a deal on with Trade Assurance.
Project details ---> Drawings for your project ---> Revised drawings ---> Transaction confirmation with Trade Assurance
Do you offer designing service for us?
Yes, we have more than 20 design engineers. We could design full solution drawings as your requirements. They use software such as Auto CAD, PKPM, MTS, 3D3S, etc..
What is the delivery time?
Delivery time depends on order quantities. Generally, the delivery time will be 30 days after receiving deposit.
If you are interested in our products, pls let us know.
We are looking forward to cooperating with you at an early date!
