Orange Juice Manufacturing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Condition Mango Juice Filling Sealing PlantUS$ 10,000 - 40,000MOQ: 1 Unit -
Washing Filling Capping 3 in 1 for Non-carbonated Energy Drink Filling MachineryUS$ 15,000 - 41,000MOQ: 1 Unit
-
High Capacity Great Fresh Juice Filling PlantUS$ 1,500 - 15,000MOQ: 1 Unit
-
Juice Processing Machine/Apple Juice Concentrate PlantNegotiableMOQ: 1 Set
-
DP Series Bottle Inverse Sterilizer Machine,bottler InverterUS$ 500 - 100,000MOQ: 1 Set
Condition
New
Application
Beverage
Packaging Type
Bottles
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V50HZ
Power
6.68kw
Place of Origin
Jiangsu, China
Brand Name
Jiazhou
Model Number
RCGF18-18-6
Dimension(L*W*H)
2450*1800*2200mm
Weight
3000kg
Certification
CE,ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Orange Juice Manufacturing Machine
This automatic machine is used for juice or tea beverage hot filling.
1. It integrates rinsing, filling and sealing into one unit.
2. It can complete 95 centigrade juice hot filling.
3. It is made of stainless steel 304 and takes elements with famous brand.
Orange Juice Manufacturing Machine's Technical Parameter
| Model | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 |
| Washing Heads | 16 | 18 | 24 | 32 | 40 |
| Filling Heads | 12 | 18 | 24 | 32 | 40 |
| Caping Heads | 6 | 6 | 8 | 10 | 12 |
| Capacity(b/h) | 3000 | 6000 | 1000 | 14000 | 18000 |
| Filling Precision | ≤+5mm | ≤+5mm | ≤+5mm | ≤+5mm | ≤+5mm |
| Power(Kw) | 2.2 | 3.75 | 4.8 | 5.5 | 6.3 |
| Weight(Kg) | 2500 | 3000 | 4000 | 5000 | 6500 |
| Size(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750 *2180*2200 | 3600*2800*3150 | 4200*3000*3150 |
Orange Juice Manufacturing Machine's Washing Part

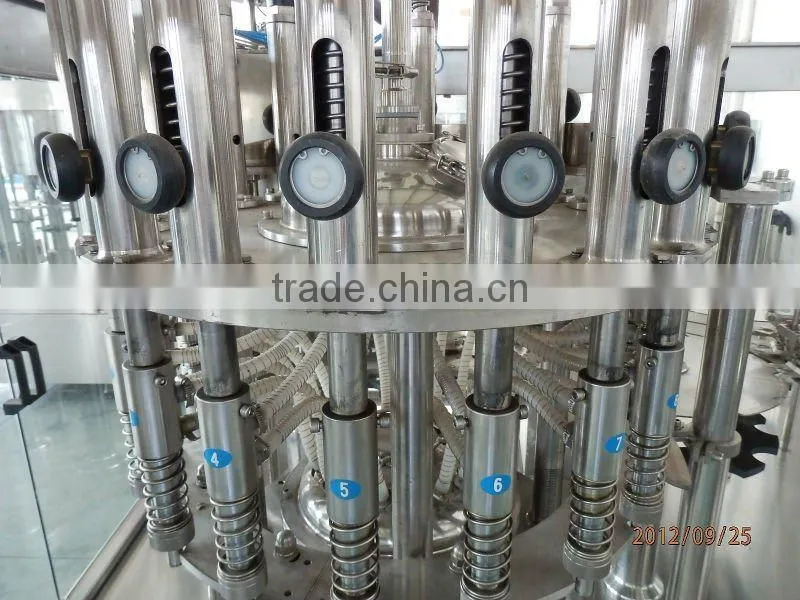

Orange Juice Manufacturing Machine's Filling Part

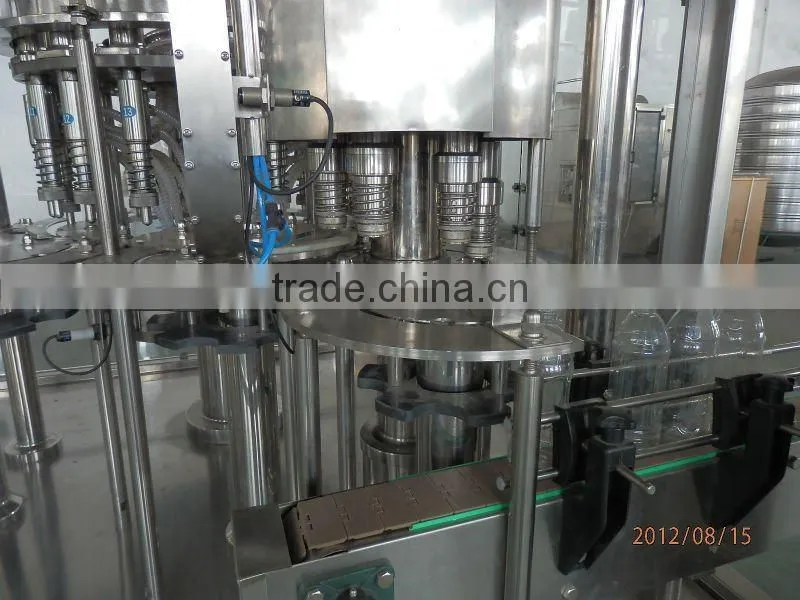

Orange Juice Manufacturing Machine's Sealing Part
