Specifications
RHS SHS CHS STEEL TUBE1 OD:15*15-800*800mm,20*30--600*800mm
2 Thickness :1.0--40.0mm
3 MS,welded,seamless,GI,stainless,alloy
If you’re looking for high quality, competitive price Square&Rectangulare Hollow Section Steel Tube you’ve come to the right place.

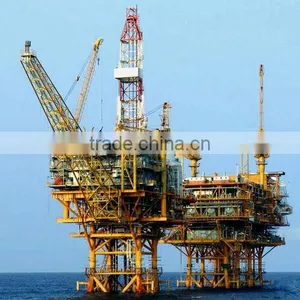

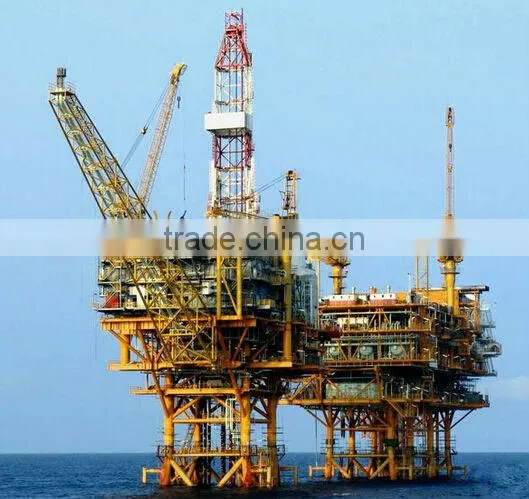

Square and Rectangular Pipe for Petroleum Platform
(1/2 inch to 32 inch)
Company Profile
COMPANY PROFILE
Jinan Xin Jiyuan Special Section Tube Co.,Ltd(Shandong,China), founded in 1997.We devote continuously to the research,development and usage of SQUARE & RECTANGULAR HOLLOW SECTION STEEL TUBES.
Main products are special shaped steel tube, cold..rolled precision tube, cold.rolled shaped tube. And our special shaped new materials enjoys advantage in high strength, super low temperature, impact..enduring, longevity, anti-erosion and easy-jointing.
There are three production lines,make full sizes of tubes: 15x15mm--800x800mm, 20x30mm--600x800mm,
over 2800 kinds of specifications.Materials are:seamless,stainless,galvanized,welded,carbon,low-alloy,alloy,
etc.
The products is very popular in USA Canada UK Australian Russia India Malaysia Europe and other countries and regions.
Implementation of Standards
DIN EN 10210 (Europe)
Hot finished structural hollow sections of non-alloy and fine grain steels
DIN EN 10219 (Europe)
Cold formed welded structural hollow sections of non-alloy and fine grain steels
ASTM A500 (American)
Cold formed structural Circular sections and special sections (welded/seamless)
GB/T 3094-2000 (China)
Cold drawn forming steel tube
GB/T 6728-2002(China)
Cold formed structural hollow sections
GB/T 178-2005(China)
Building structure with cold-formed rectangular steel
JISG 3466(Japan)
Carbon steel square pipes for general structural purposes
PRODUCTS
Products |
Square & Rectangular Hollow Section Steel Tube
|
Out Diameter |
15X15mm---800X800mm 20X30mm---600X800mm |
Thickness |
1.0mm---40.0 mm |
Material |
Carbon,Low-alloy,Alloy,Seamless,Welded, Stainless |
Technology |
ERW,Hot-Rolled,Cold-Formed,Annealed |
Standard |
GB/T ASTM JIS DIN EN AS |
Steel Grade |
Q235B, Q345A/B/C/D/E |
|
Gr.A Gr.B Gr.C Gr.D(HEAT TREATMENT) | |
|
SS330,SS400,STK490 C250,C350,C450 | |
|
S185, S235JR,S235J0, S355JR,S355J0,S355J2 | |
|
20#, 45# ,304,304L,316,316L,etc. | |
Surface |
Black,Oiled,Paint,Hairline,Mirror,Galvanized,Anti-corrosive |
PRODUCT USE
Our products applies to the manufacture of cars, trucks, buses, special automobiles, agricultural
machines, high speed trains, aviation, shipbuilding, petroleum platform, petroleum land platform,
iron tower, bridges, large scale steel frame, port machine, textile machine, power plant, mining,
Technical requirements:
Chemical Composition:
Yield Strength Grade |
Demotic Raw-material Grade |
235 |
Q235B, Q235C, Q235D, Q235qC, Q235qD |
345 |
Q345A, Q345B,Q345C,Q345D,Q345Qc, Q345Qd, StE355, B480GNQR |
Carbon Equivalent:
Ceq(%)=C+Mn/6+Si/24 +Ni/40+Cr/5+Mo/4+V/14
Ⅰgrade product Ceq(%)
Yield Strength Grade |
235 |
345 |
390 |
Ceq(%) |
≤0.36 |
≤0.43 |
≤0.45 |
Note: In order to improve the performance of steel,390 could add the microelement such as V, Nb, Ti, Mo and N etc. | |||
Mechanical Property:
Yield Strength Grade |
W.T |
Yield Strength |
Tensile Strength (Mpa) |
Elongation |
(20°C) Impact Value J |
(mm) |
(Mpa) |
(%) |
|||
235 |
4~12>12~22 |
≥235 |
≥375 |
≥23 |
≥27 |
345 |
4~12>12~22 |
≥345 |
≥470 |
≥21 |
≥27 |
390 |
4~12>12~22 |
≥390 |
≥490 |
≥19 |
≥27 |
Contact Information
Any question is appreciate!
