Specifications
Material: galvanized sheet , stainless steel , aluminum alloyMounting: wall mounted
Phase: three phase/single phase.

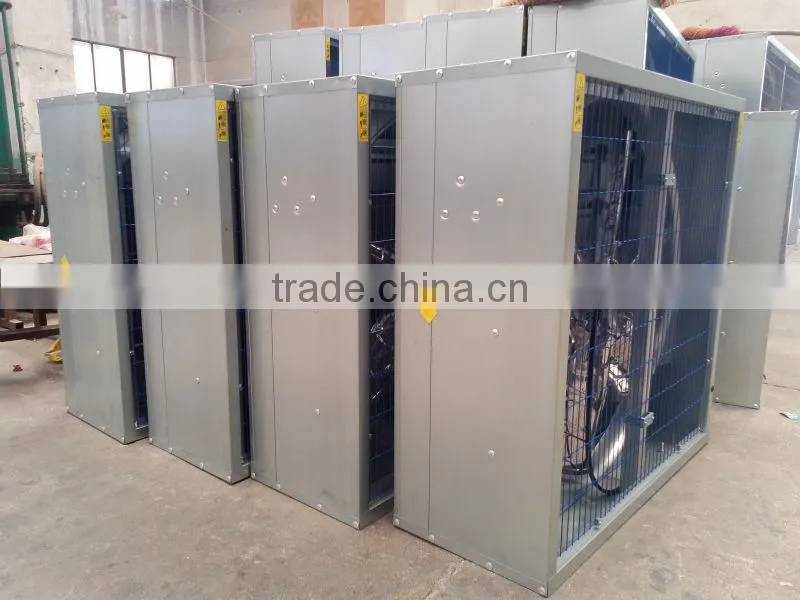

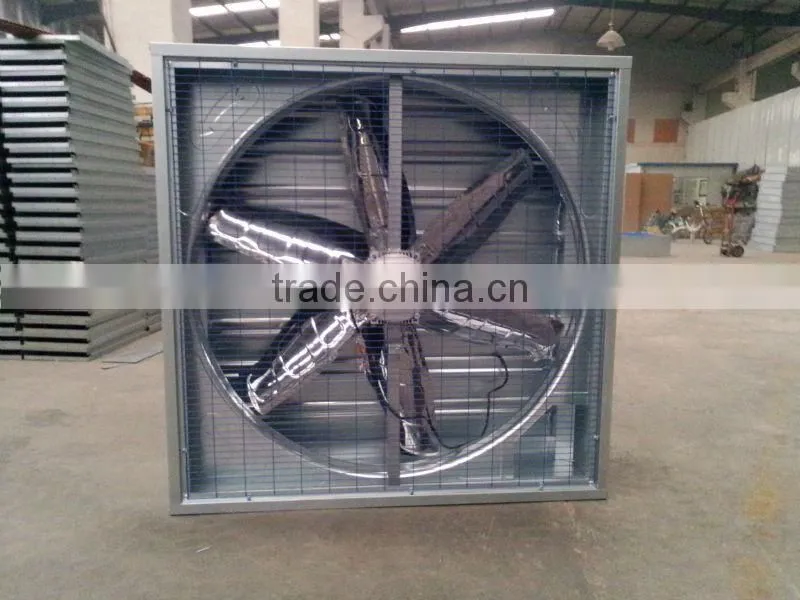

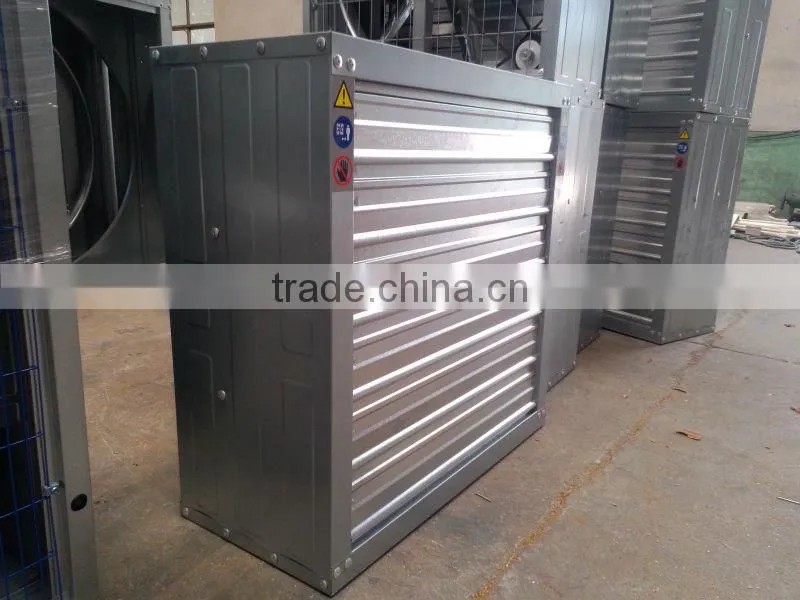

Heavy drop hammer exahust fan for workshop.
Features:
1), Fan frame is made from high quality galvanized steel sheet in order to assure highest stenghth and strong resistance.
2), The V-belt is made of high quality alumicum-magnesium alloy. It is light weight, high strength. Automatic belt tensioner can adjust the belt up and tight, not pine and drop.
3), The motor passed the national CCC certification. Also protection class:IP55, insulation class: F grade.
4), Centrifugal shutter system and other fittings of shutter made of High quality engineering nylon. It is high stength and long service life.
5), New twisted & punched type blade, subjected to the tests of dynamic balance and static balance, ensures generation of a lot of air volume at the reasonable blade angle and a good noise control.
6), Optimization by CAD/CAM, ensure the rationability of structure and the reliability of mechanisms.
Technical data:
| Specification | Blade daimeter(mm) | Blade speed(r/min) | Motor speed | Air volume | Voltage | Power | Noise(lb) | Profile dimension | |
| YP-900(H) | 900 | 610 | 1400 | 30000 | 380 | 550 | <=70 | 1000*1000*400 | |
| YP-1000(H) | 1000 | 600 | 1400 | 30000 | 380 | 750 | <=70 | 1100*1100*400 | |
| YP-1100(H) | 1100 | 460 | 1400 | 30000 | 380 | 1100 | <=70 | 1220*1220*400 | |
| YP-1250(H) | 1250 | 439 | 1400 | 30000 | 380 | 1100 | <=70 | 1380*1380*400 | |
| YP-1400(H) | 1400 | 325 | 1400 | 30000 | 380 | 1500 | <=70 | 1530*1530*400 |
