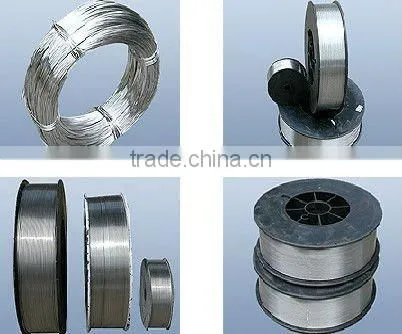

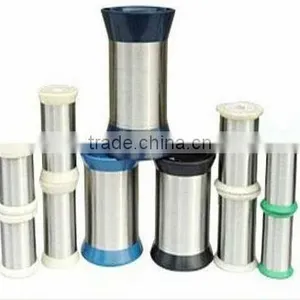

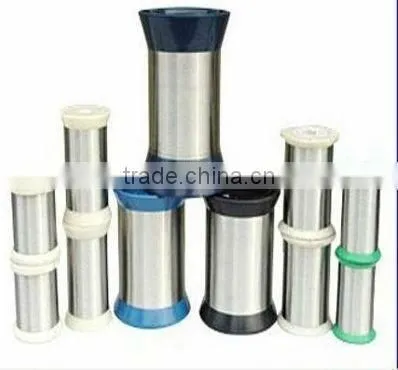

Help Center2013 Autumn Canton Fair 16.3H05 0.05-1.8mm High Quality Stainless Steel Wire
Related Products
-
2013 Autumn Canton Fair 16.3H05 High Quality Stainless Steel WireUS$ 1,200 - 3,000MOQ: 1 Ton -
304,306,316s High Quality Stainless Steel Wire(ISO9001:2000 Manufacturer)US$ 1,200 - 3,000MOQ: 1 Ton
-
Hot!!! Discount!!!ISO9001:2000 High Tensile BWG8-36 Hot Dipped Galvanized Wire(Joint Vnturer)US$ 810 - 830MOQ: 2 Tons
-
GI Rope Manufacturer of Galvanzied Wire q 195 Iron CoilUS$ 498.6 - 652.4MOQ: 10 Tons
-
Galvanized Iron Wire ISO9001 18 Gauge Galvanized Wire RodUS$ 457.5 - 657.2MOQ: 5 Tons
Specifications
1.Wire Dia:0.05-1.8mm2.Material304,316,304L,316L,310S,321
3.Heat,wear and corrosion resisting
4Directly supported by factory
1.Material:
Grade |
Chemical Composition (%) |
||||||||
C |
Si |
M n |
P |
s |
Ni |
Cr |
Mo |
other |
|
302 |
≤0.15 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
8-10% |
17.0-19.0 |
|
|
304 |
≤0.08 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
8.0-10 |
18.0-20.0 |
|
|
316 |
≤0.08 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
10.0-14.0 |
16.0-18.0 |
2.0-3.0 |
|
304L |
≤0.03 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
9.0-13 |
18.0-20.0 |
|
|
316L |
≤0.03 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
12.0-15.0 |
16.0-18.0 |
2.0-3.0 |
|
310S |
0.08 |
1.5 |
2.0 |
0.045 |
0.03 |
19-22 |
24-26 |
|
|
321 |
≤0.08 |
≤1.0 |
≤2.0 |
≤0.045 |
≤0.03 |
9.0-13.0 |
17.0-19.0 |
|
Ti: ≤0.8 |
2.Wire Diameter:
|
Wire Diameter (mm) |
Tolerance (mm) |
Max. Deviation Tolerance (mm) |
0.020-0.049 |
+0.002 -0.001 |
0.001 |
0.050-0.074 |
±0.002 |
0.002 |
0.075-0.089 |
±0.002 |
0.002 |
0.090-0.109 |
+0.003 -0.002 |
0.002 |
0.110-0.169 |
±0.003 |
0.003 |
0.170-0.184 |
±0.004 |
0.004 |
0.185-0.199 |
±0.004 |
0.004 |
0.200-0.299 |
±0.005 |
0.005 |
0.300-0.310 |
±0.006 |
0.006
|
0.320-0.499 |
±0.006 |
3.Feature:High strength, excellent anti-corrosion and acid-resisting property, good preventing and anti-radiating property,also high heat-resisting and wear-resisting.
4.Application: wire-drawing, weaving wire mesh, spring wire, steel wire ropes, filter materials, mechanical equipment, aviation, aerospace, automotive, pharmaceutical, chemical and other industries.
5.Packing:
A.inside packing:on spool or in coil, the spool type , the diameter of the coil and the weight of the coil can be made according to client's request .
B.outside packing: (a) for spools:pallet and big carton or pallet and plywood case
(b) for coils :pallet and bucket
