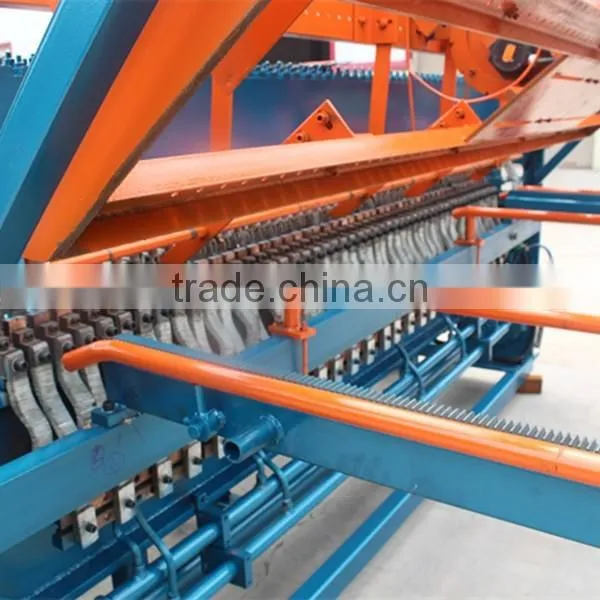

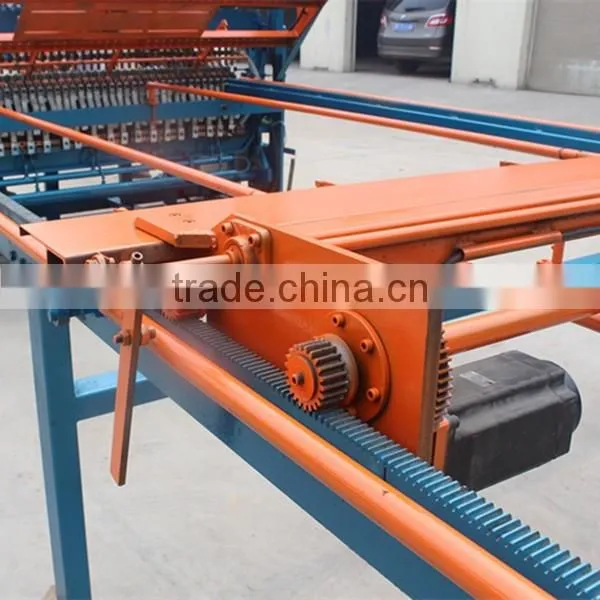

After-sales service provided welded wire mesh panel machine
Control System: Numerical Control(NC) (Touch Screen)
Power system: electromotor
Application: Can be used in the cages, rabbit cage, mink cage, chicken cage, fox cage, pet cage,the production of a variety of products.
Product introduction:Automatic chicken cage welded wire mesh machine,used the power electronic synchronization technology,control welding and welding times are controlled by a digital circuit,high control accuracy,stableproperty,welding point secure,no burn marks.Weft wire need straightening cutting machine to make and put in the blanking mechanism.The agency adopts stepper motor control,from the hopper automatic blanking uniform accurately,the warp wire pull out from the whirlwind,mesh edges smooth,no need to cutting edges.Pull mesh adopts the elastic rod and the grid positioning device,make the grid fine tuning,the grid size precision is high,welding can be adjusted arbitrarily within the specified scope.Automatic chicken cage welded wire mesh machine have fast speed,only need two people to operate,get started quickly. Production of roll or piece can be.
Technical Parameters:
Wire Diameter |
2.5-4.0mm |
Welding point |
Can choose |
Weft Wire Spacing |
≥24mm |
Weft Form |
Precut wire |
Warp Wire Spacing |
≥50mm |
Warp Form |
Wire Coil |
Welding Width |
1200mm |
Rated Voltage |
380V |
Welding Speed |
55times/min |
Rated Power |
Can be adjust |
Packing
1. Debugged in two parts for packaging machinery, plastic mold package with good conduct tray packaging. Including accessories, kit, pump, control cabinet (accessories and other details can contact me for more information).
2. We have our own freight forwarding companies and packaging company, you can also specify a freight forwarding company in accordance with the customer for shipping by our customs.
After sale service:
- Engineer can install,test and adjust the machine for you
- 24 hours online after-sale service
- We will train worekers for you
Our Factory:
Hebei HTK Welding Equipment Manufacture Co., Ltd
- We have 2 senior engineers,10 senior technicians,more than 100 employees
- Our products: Field Fence and Field Fence Machine, Welded Wire Mesh Machine
- Our certifications: ISO 9001:2000, BV certification
- Our Main Market:South Africa, Mongolia,Asia, Dubai
