Hebei HTK Shuleshe Sheet Mesh Machine
Machine Description
The machine was synchronised with power electronic technology. Mesh welding and welding time were controlled by PLC. Weft and warp wire are pulled out from the whirlwind and the net was pulled with a flexible rod and grid position device. It is easy to operate, only 2 person can complete the operation. The mesh can be in roll or sheet.
Product Application

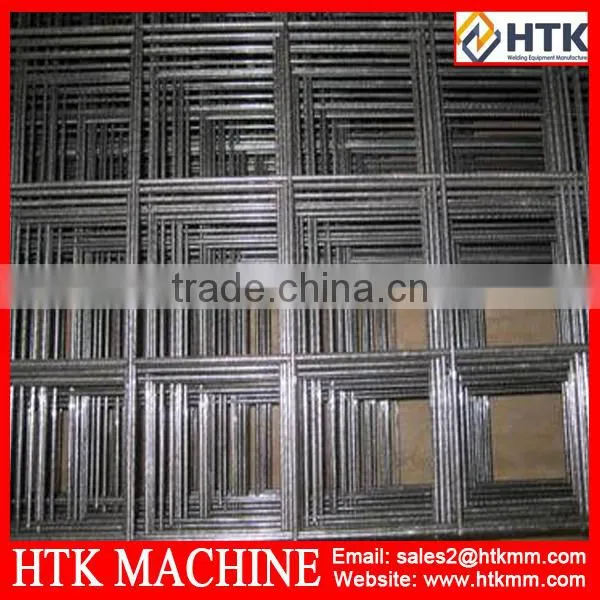

1.enclosure fence, reinforcing mesh for pouring floor, road, etc.

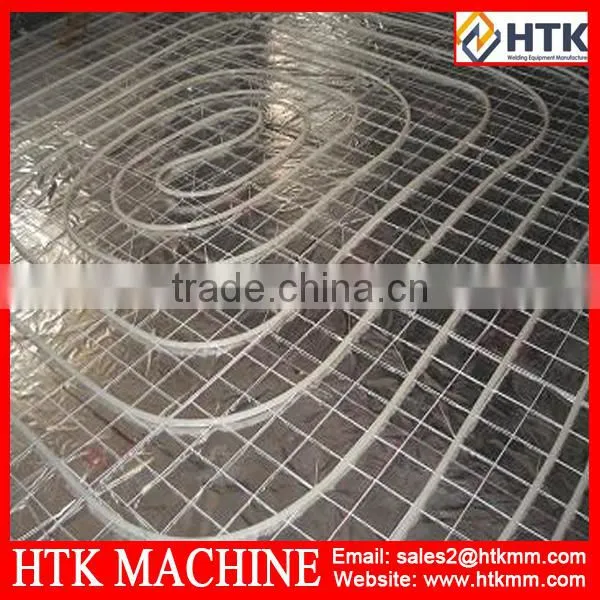

2. used as construction network such as estazolam plate,geothermal net, seedbed net, flower room
Technical Parameter:
Type |
DNW-01 |
DNW-02 |
DNW-03 |
Diameter |
1.4-2.3mm |
2.2-3.0mm |
2.5-4.5mm |
Mesh Opening |
50-200mm |
≥25mm |
50-200mm |
Width |
1200mm |
1200mm |
2000m |
Welding Speed |
55times/min. |
45times/min. |
45times/min. |
Welding Points |
25 |
16 |
41 |
Warp Wire Form |
Coiled wire |
Coiled wire |
Coiled wire |
Weft Wire Form |
Coiled wire |
Cutting wire |
Cutting wire |
Voltage |
380V |
380V |
380V |
Power |
50KVAx2 |
63KVAx2 |
120KVAx5 |
Outer Dimension |
2400x2400x1400mm |
1800x2500x1800mm |
2700x2400x1800mm |
Weight |
2.2tons |
2.8tons |
3.5tons |
Special sized can be offered as requested | |||
Guarantee and After-sale Service:
1.Warranty: One Year.
2.Enough spare parts of machines could be supplied.
3.All machines were tested and adjusted before delivery.
4.Engineers avaliable to service machinery overseas:Worker-training, installation.etc.
5.24 hours technical support by e-mail or calling service.
