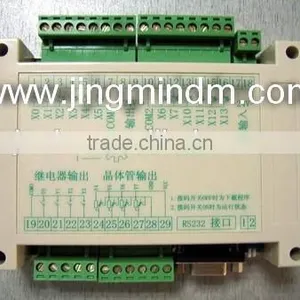

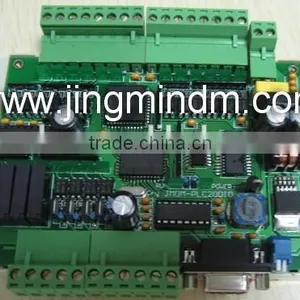

JMDM stable and reliable step motor controller , motor control board, step motor control card
Product feature
1) Working power supply:the main power supply: AC18V (or DC24V);Peripheral drive power supply:DC12V or24V;

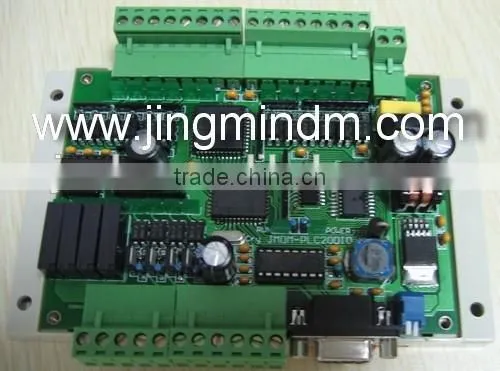

2) The main control chip: 8 bits high-performance single chip microcomputer;
3) Program storage space: 32K (If you have specific needs, can be 64K);
4) Data storage: 16K(if you have specific needs, can be 32 k), data memory used to store data,the data will not lost after power failure.

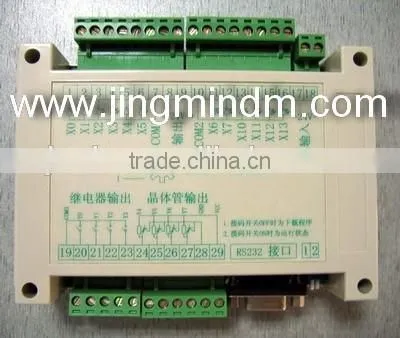

5) Input and output:
12 channels photoelectric isolation digital quantity input, NPN input form, the input current of 10MA, There are two way to interrupt source is used to count;
8 channels photoelectric isolation digital output, including 4 channels relay output, can pick up 220V voltage, maximum current is 5A; 4 channels transistor output, open collector output form, the output voltage is 24/12V, maximum output current for 4A, the output state can be back to read;The input and output points can be customized.
6) System stability: adopt photoelectric isolation and enable internal watchdog and strict high frequency filter characteristics, make the system stable and reliable work, crash since the start time within 1 ms;
7) Interface: 1 channle standard RS232 serial communication interface(15KV static shock resistance), can be directly or text display with computer peripherals, etc.Can download the program directly by RS232 interface, without burning device, convenient program modification and upgrade;
8) Work status indicates: 1 the LED display, there is a dial switch can be set according to the program program state or parameters;

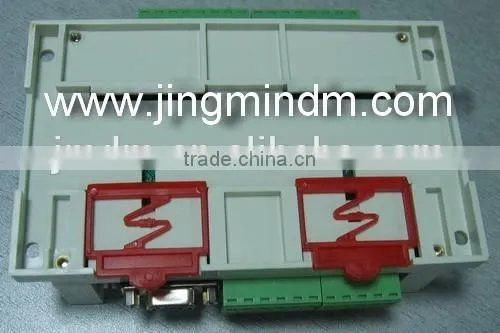

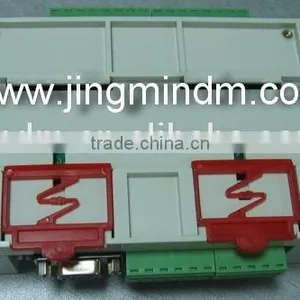

9) Shell adopts screw or guide installation, compact design.
Usage

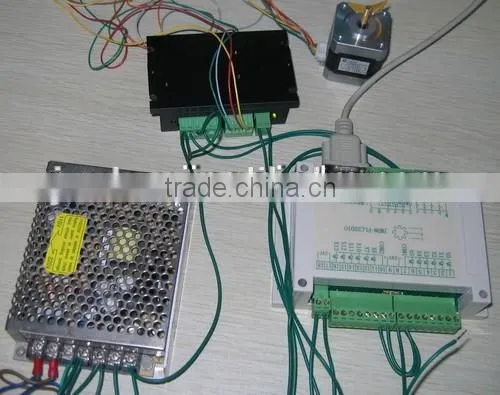

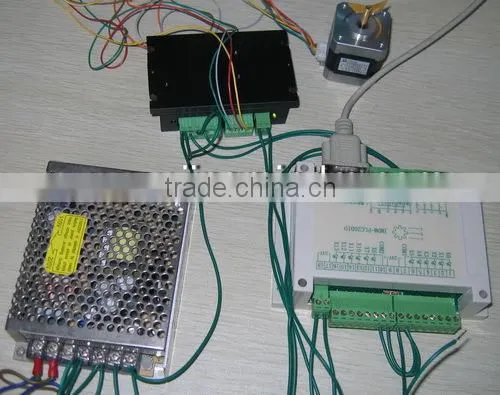

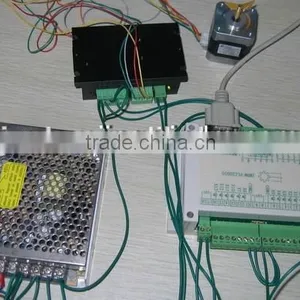

1.Serial port communication control automation equipment;
2.Automatic quality detector;
3.Production line intelligent detection system;
4.Fixed-length control system;
5.The waiting box billboard automatic switching system;
6.The precision of speed control, precision motion control, precision machining, etc.
