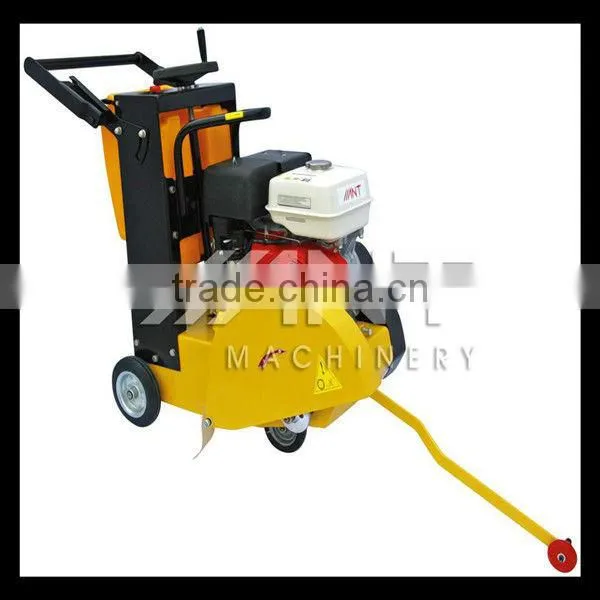

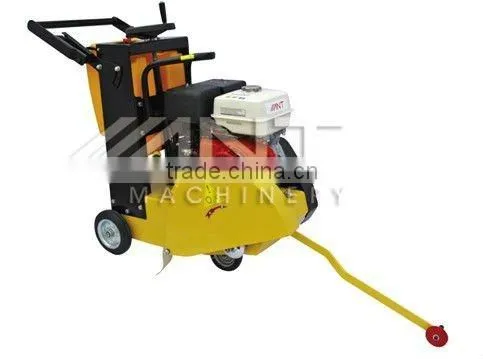

Help CenterConcrete ROAD CUTTER QG180F
Related Products
Concrete Road Cutter
1. Concrete cutter is ergonomicly designed structure to ensure comfortable operation
2. Super-rigid box frame ensures straight cuts
3. With comfortable and firm handle grip
4. Easy crank for raising/lowering cutting blade
5. With easyremove, rustless ploy water tank, this provide an optimum flow and volume of water to the blade
6. It is widely applied to highway construction, municipal engineering, construction, stone factories, mines and so on and used to cut concrete pavement, concrete slabs, marble and granite pavement, slate, terrazzo and other brittle hard materials.
Specification:
Road Cutter QG180FX(walk behind) CE
Engine :Honda GX390 13HP
Max Cutting Depth: 180mm
Engine speed: 3600rpm
Water Volume:32L
Water Consumption:100L/L
Blade Dia: 400MM
Optional engines: Robin,B&S and Loncin gasoline engine
Detail shows:
hosting handle
side handle
handle holder
Certificate of our road cutter:
Packing details
in a 20' container, we can put 36 sets inside;
in a 40' container, the quantity will be 76 sets.
ANT MACHINERY Road Cutter'QG' series:
Model |
Weight |
Dimension |
Engine |
Blade diameter (mm) |
Max cutting depth(cm) |
Water volume(L) |
QG90 |
90kg |
88*54*92 (cm) |
5.5HP gasoline engine |
350 |
90 |
25 |
QG115F |
127kg |
116*62*111 (cm) |
9HP gasoline engine |
350 |
115 |
25 |
QG180 |
136kg |
130*68*111 (cm) |
13HP gasoline engine |
350/400/450/500 |
180 |
32 |
QG180F |
136kg |
96*62*113 (cm) |
13HP gasoline engine |
350/400/450/500 |
180 |
32 |
QG180FX |
136kg |
96*62*113 (cm) |
13HP gasoline engine |
350/400/450/500 |
180 |
32 |
QG180W |
136kg |
96*62*113 (cm) |
13HP gasoline engine |
350/400/450/500 |
180 |
32 |
Our company is a professional manufacturer, and we have strong technological advantages, complete producer`s equipment and perfect testing technology.
