Main Features

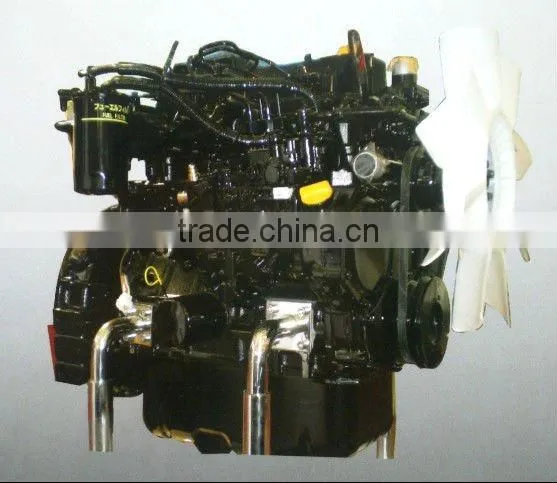

Engine:Japanese YANMAR model 4TNV94L engine features high efficiency, low fuel consumption and strong power, complies with Tier 2 emission standard
Swing Mechanism:Swing mechanism imported from Korea features rapid swing, swift revolve and a reliable performance
Hydraulic pump with high efficiency:Adopting plunger variable displacement pump plus gear pump for power adjustment features high efficiency and big displacement

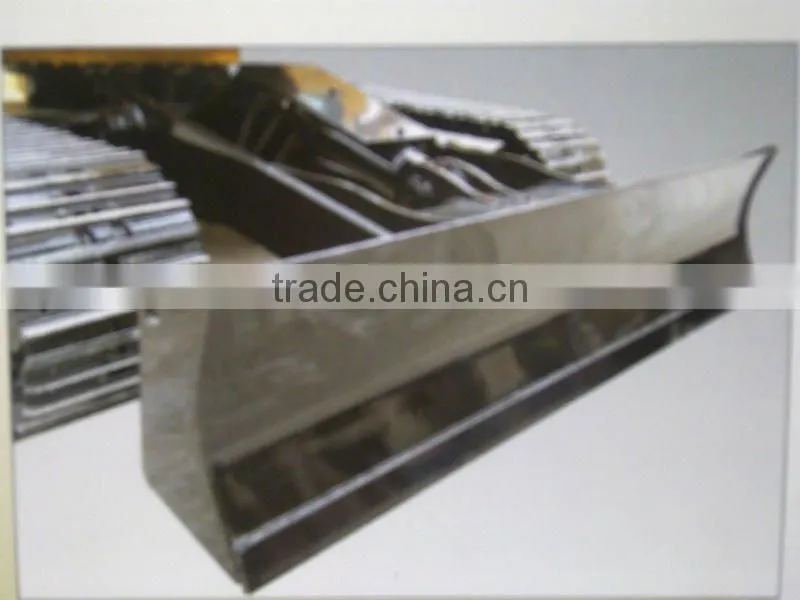

Blade:The higher speed of blade lifting and dropping and higher height to reach help improve working efficiency
TECHINICAL SPECIFICATION
NO. |
DESCRIPTION |
SPECIFICATON |
||
|
1 |
Main machine |
|
||
(1) |
Working weight |
6500kg |
||
(2) |
Bucket capacity |
0.26M3 |
||
(3) |
Track width |
400mm |
||
(4) |
Transport dimension |
6000*2660*2150mm |
||
(5) |
Overall dimension |
Length of track on ground |
2140mm |
|
Length of track |
2735mm |
|||
Ground clearance of counter weight |
720mm |
|||
Tail swing radius |
1750mm |
|||
Total length |
6000mm |
|||
Total height |
2660mm |
|||
Total width |
2150mm |
|||
Track gauge |
1750mm |
|||
Min. ground clearance |
340mm |
|||
Track width |
400mm |
|||
Track height |
610mm |
|||
Top width |
2000mm |
|||
Dozer |
2150*432mm |
|||
(6) |
Working range |
Max. working radius |
6230mm |
|
