Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Compactor > 3 Ton Double Drum Hydraulic Vibratory Road Roller for Sale

3 Ton Double Drum Hydraulic Vibratory Road Roller for Sale

3 Ton Double Drum Hydraulic Vibratory Road Roller for Sale thumbnail-1
3 Ton Double Drum Hydraulic Vibratory Road Roller for Sale photo-1
Negotiable MOQ: 1 Roll (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Double Drum Roller
Static Linear Pressure:
120 N /cm
Contact Supplier Request Quote Chat Now
Henan Qianli Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Double Drum Roller
Static Linear Pressure 120 N /cm
Travel Speed 0-8 km/h
Grade Ability 30 %
Place of Origin Henan, China
Brand Name Qian Liniu
Model Number QLNC203
Power(W) 23 kw
Dimension(L*W*H) 2760x1400x2430 mm
Weight 3000
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.CE certifictes
2.High efficiency
3.Safe and dependable
4.Famouse and advanced enginr and motor
5.Easy to operate

<8 ton double drum hydraulic vibratory road roller for sale >

1.----Standard configuration

1.Hydraulic full-wheel drive ,full-wheel vibrating,articulated steering,CVT

2.Engine:adopt changchaiZN390Q engine;

3.Driving hydraulic element:the products of SAUER are adopted;

4.Vibrating system: adopt joint venture brand's gear pump,motor;

5.Both front and rear wheels have scrapign and water spray unit;

6.With a useful Anti-roll awning.



2.----Main Features

1.Hydraulic double wheels drive,hydraulic double wheels vibrating and steering,with reliable performance and optimun function/price ratio.

2.Both front and rear wheels have scraping and water spray unit;

3.Adopt N390 diesel engine,very convenient for use and maintenance;

4.Compact integral structure,small volume,capable of used for compaction on narrow site.

3.----Main Technical Parameters



Model   QLN C203
Operating mass kg 3000
Static linear load N/cm 120
Vibration amplitude   0.5
Centrifugal force KN 2X30
Vibration frequency Hz 50
Travel speed (ⅠⅡⅢ) km/h 0-12
Grade ability % 30
Steering angle . ±30
Overall Dimension mm 2760x1400x2520
Drum diameter mm 700
Drum width mm 1250
Quantity of rear tire   /
Specification of rear tire   /
Wheelbase mm 2010
Diesel power Kw 23
Diesel model   ZN390Q



 4.----Range of applicaton

QLNC 203 series vibratory roller,

applicable for maintenance of the municipal road, as well as suitable for the compaction of the narrow road surfaces such as groove foundation,building construction, pipeline backfill and stadium.

5.----Pictures

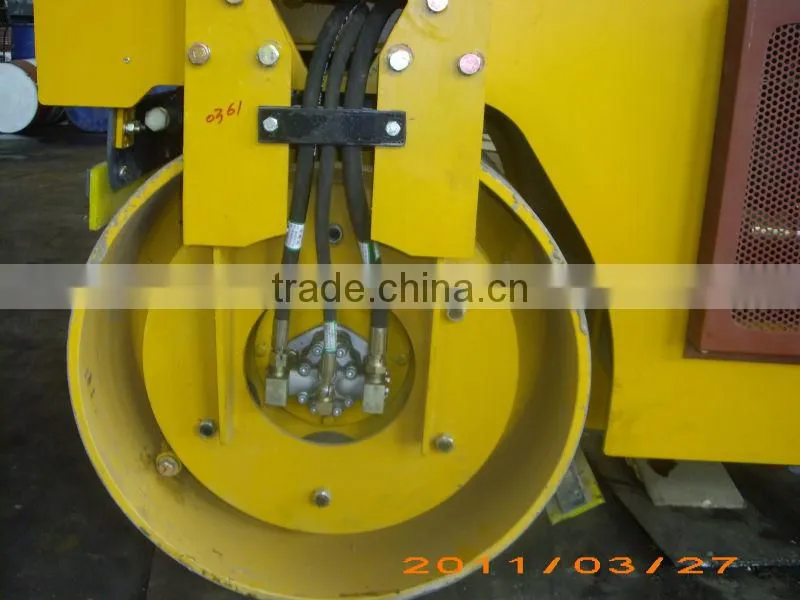

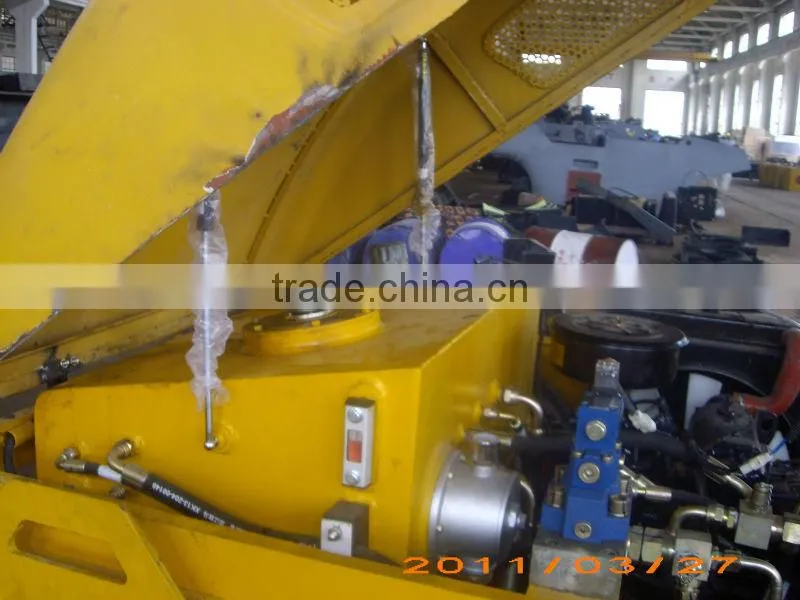

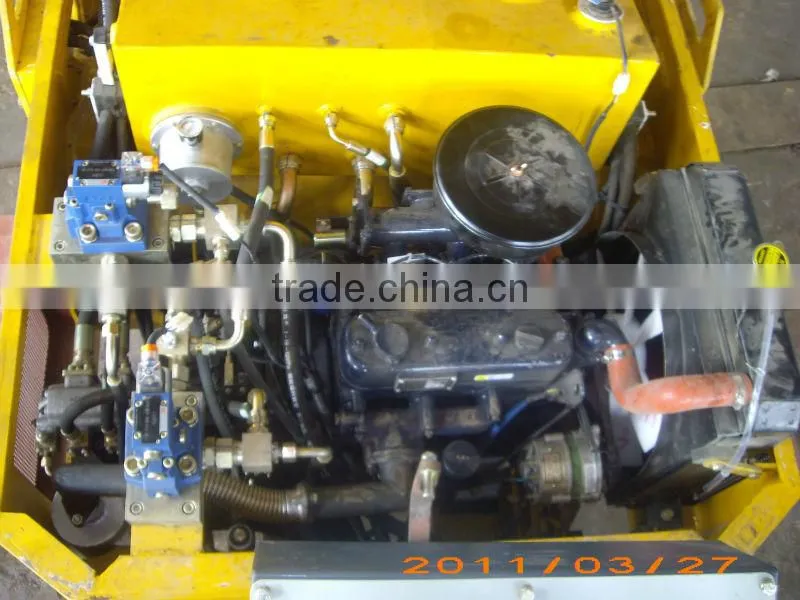

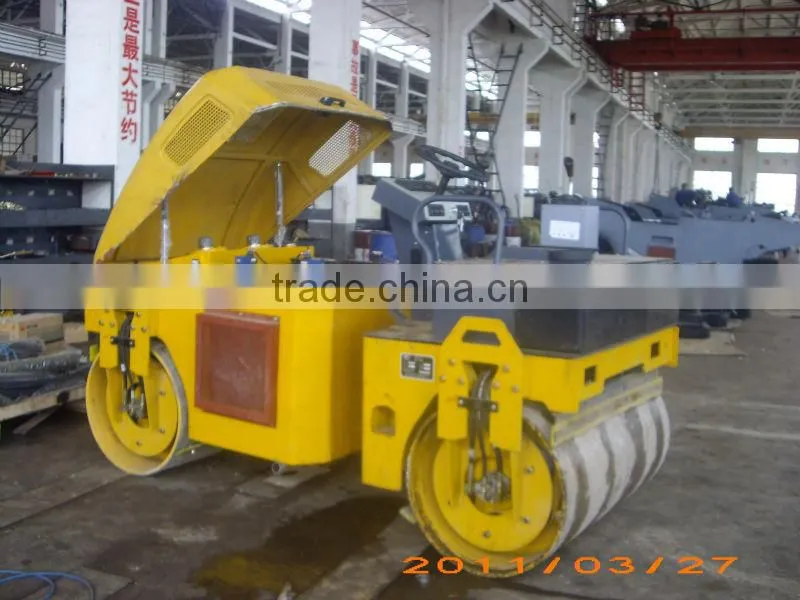

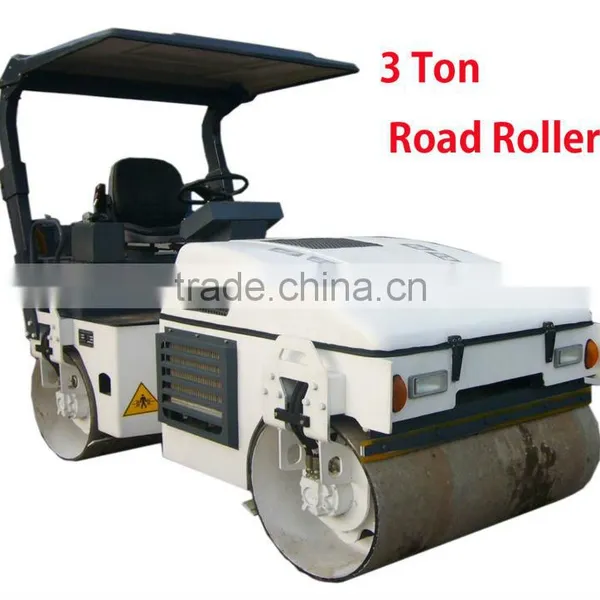

3 ton double drum hydraulic vibratory road roller for sale

Details

3 ton double drum hydraulic vibratory road roller for sale3 ton double drum hydraulic vibratory road roller for sale3 ton double drum hydraulic vibratory road roller for sale
