Front End Loaders Compact Tractors

Front End Loaders Compact Tractors thumbnail-1
Front End Loaders Compact Tractors thumbnail-2
Front End Loaders Compact Tractors thumbnail-3
Front End Loaders Compact Tractors thumbnail-4
Front End Loaders Compact Tractors thumbnail-5

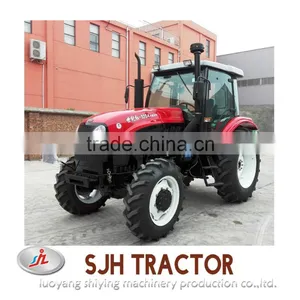

Front End Loaders Compact Tractors thumbnail-6
Front End Loaders Compact Tractors photo-1

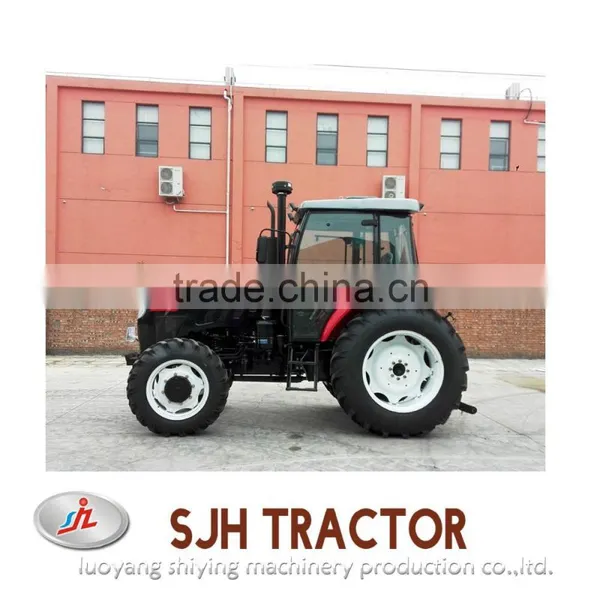

Front End Loaders Compact Tractors photo-2

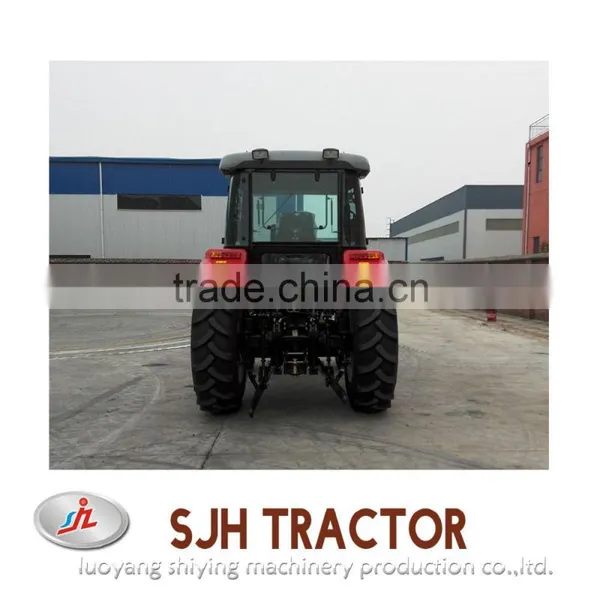

Front End Loaders Compact Tractors photo-3

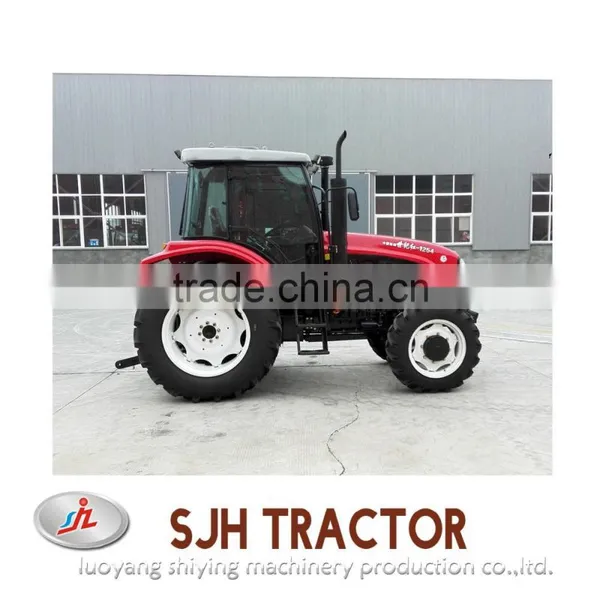

Front End Loaders Compact Tractors photo-4

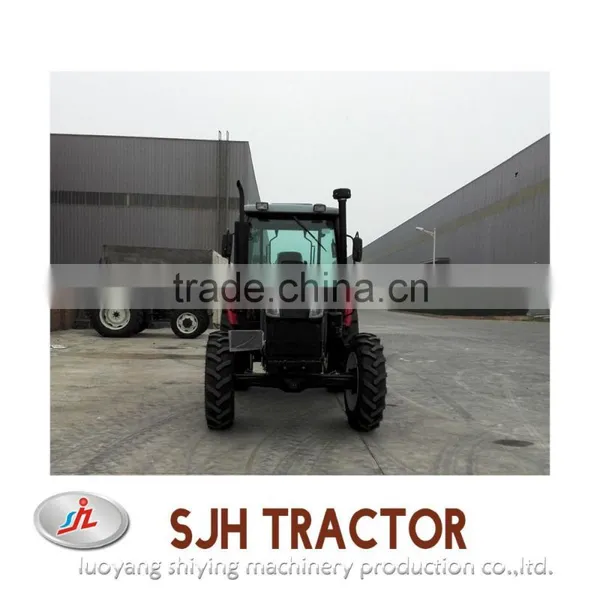

Front End Loaders Compact Tractors photo-5

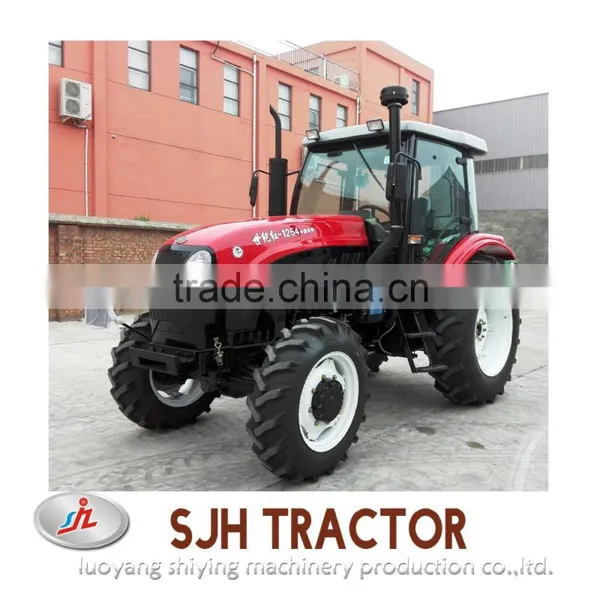

Front End Loaders Compact Tractors photo-6
US$ 19,500 - 38,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New, new
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Luoyang Shiying Machinery Production Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Wheel Tractor
By wheel 4WD
Usage Other, Farm Tractor, farm tractor
Drive Type Gear Drive
Power(W) 92KW
Certificate Other, CE, CE
Brand Name SJH
Model Number SJH 1254
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas
Product Description



>Main features of agricultural tractor
1. Appearance with a new streamlined design, high-grade paint, bright colors, beautiful

and stylish.
2. Match dragged YTO engine power, low fuel consumption, better power ability and economy.
3. Full hydraulic steering system, light and flexible of manipulation, small turning radius and good maneuverability.
4. Full stand-alone power output shaft, which can meet the demand of rotary tillage,

 straw, harvesting, planting, fertilizing and other operations.
5.Suspension system to enhance the force, can be suspended with large farm machinery and other agricultural operations.
6.Traction, optional air brake device for towing vehicles for transport operations.
7.1-3 slices optional hydraulic output multi-way valve used tomanipulate the folded target,

flip plow a variety of farm implements and shovel carriers, motor graders and dump trailers.



Model

SJH800

/SJH804

SJH850

/SJH854

SJH900

/SJH904

SJH1000

/SJH1004

SJH1100

/SJH1104

 SJH1254
Type

4×2

 / 4×4
overall dimension(mm) Length 4250 4700
Width 2070
Height 2720(2W) / 2830(4W) 3040
Min.Ground Clearance(mm)  440(bracket of the fuel tank)/380(bottom of front axle)
Wheel Tread(mm)  Front (1550),1650,1750,1850(2WD)/1640(4WD)
Rear (1620),1710,1820,1910,2020
Structure Weight(KG) With Cab 3350/3750 3400/3800 3950
Without Cab 3100/3500 3150/3550 3700
Counter weight(KG) Front 220(2WD)/400(4WD)
Rear 300
Engine Model LR4B5-23 LR4V5-23 LR4B3Z-23 LR6M5-23
Cylinder 4 4/6 6
Bore×stroke 108×135 115×135 108×125 110×135
Rated power(kW)  59 62.5 66.2 73.5 81 92
Rated Speed 2300
Max traction force(KN) 18.9/23.6 18.9/25.1 18.9/25.8 19.8/26.9 20.6/26.9 28
Max PTO power(KW) 50 53.1 56.3 62.5 68.9 78.2
PTO Rotating Speed(r/min) 540/1000(option:540/760,760/850,760/1000)
Tyre Front 6.50-20 (2WD)/ 11.2-24(4WD)
Rear 16.9-34
Gearbox Standard: F8+R4 (Creeper/Shuttle shift option: F16+8R)
Speed(Km/h) 2.31 ~34.85
