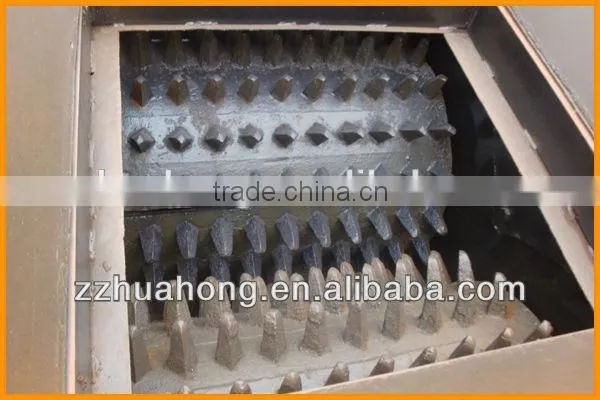

4PG0806 Four Roller Crusher for Final Size 0.1-2mm

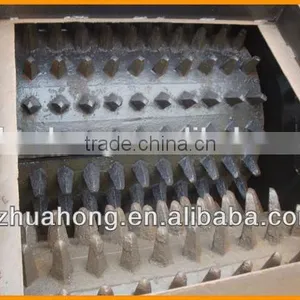

4PG0806 Four Roller Crusher for Final Size 0.1-2mm thumbnail-1
4PG0806 Four Roller Crusher for Final Size 0.1-2mm photo-1
US$ 2,500 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Roller Crusher
Application:
Ore,coal,mine,stone
Contact Supplier Request Quote Chat Now
Zhengzhou Huahong Machinery Equipment Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Roller Crusher
Application Ore,coal,mine,stone
Motor Type AC Motor
Power(W) 110kw-132kw
Capacity(t/h) 80-800T/H
Place of Origin Henan, China
Brand Name Huahong
Model Number 4PG1216
Dimension(L*W*H) as below
Weight as below
Certification ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

 4PG SERIES four roller crusher in high quality





Summarize

Four-toothed roller crusher is  suitable for compression strength less than 200Mpa, humidity less than 30% of the medium hard and soft materials.In addition,it is for fine and intermediate crushing which has few powder and lots of grains. Such as coal, coke, fertilizer, raw material, petroleum coke, glass, chemicals and other solid materials. Features: low use and maintenance costs,high ratio of reduction, high reliability, low dust , low noise.

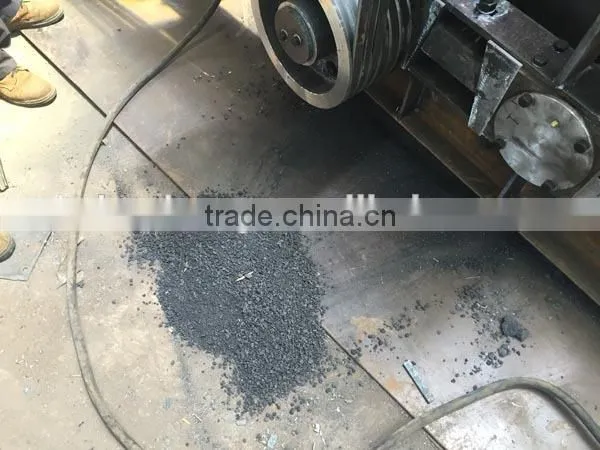

 4PG0806 four roller crusher for final size 0.1-2mm

Four-toothed roller crusher is fixed with four abrasive rollers, the top two are discaling rollers, the next two are flat. Maximum feeding 700mm ,range of the discharge is 2-20mm. It is Operated in the intermediate and fine crushing. Such as thermal power plant`s fluidized bed boiler; The breaking of ordinary steam coal; fertilizer raw material crushing of fertilizer plant; solar industry crushes waste glass tube; or in the similar occasion.

 4PG0806 four roller crusher for final size 0.1-2mm

Working principle

   Four-toothed roller crusher is fixed with four high-strength wear-resistant grinding rollers. Their relative rotation generates high extrusion pressure  and shear force. The material is entered into the space between the two rollers. The first time, it is extruded, rolled and sheared (thick broken). Then it comes to the next two rotating rollers. Here it is extrueded, cut and grounded to the required size, sent by the transport equipment.

4PG0806 four roller crusher for final size 0.1-2mm

Specifications

Serial number

Model

Feed size(mm)

Discharge size(adjustable mm)

Output(T/h)

 Power(KW)

Protection mode

Driving mode

1

4PG0605

<200

2-20

8-90

18.5

22

 Spring

or

Hydraulic pressure



Triangular belt

or

Shaft coupling

2

4PG0806

<300

2-20

 15-150

30

37

3

4PG0809

<300

2-20

 20-250

37

45

4

4PG0812

<300

2-20

 30-380

45

55

5

4PG1012

<500

2-20

 40-480

55

75

6

4PG1212

<700

2-20

 65-640

90

110

7

4PG1216

<700

2-20

 80-800

110

132

























Friendly advise: for reference only because of technical upgrade, Electronic CAD drawings is accurate.

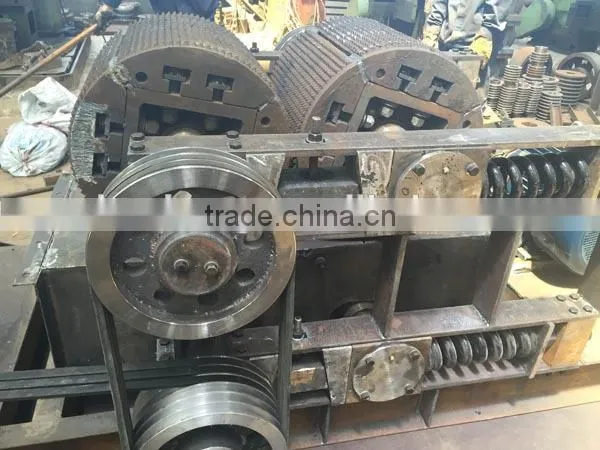

This is inner structure:

4PG0806 four roller crusher for final size 0.1-2mm4PG0806 four roller crusher for final size 0.1-2mm4PG0806 four roller crusher for final size 0.1-2mm

4PG0806 four roller crusher for final size 0.1-2mm



Why choose us:

1. Strict quality management through all the producing process;

2. Strict trial/test running of 4 hours;

    (All customers are welcome to visit trail running)

3. Continuously improving designs in details in vital structure as presented previously;

4. Qualified designing engineers and after-sale engineers;

5. Stable performance which performs much better than the average level of the whole industry of roller crusher;

6. High durability even in extreme climates;

7. Considerate services.
