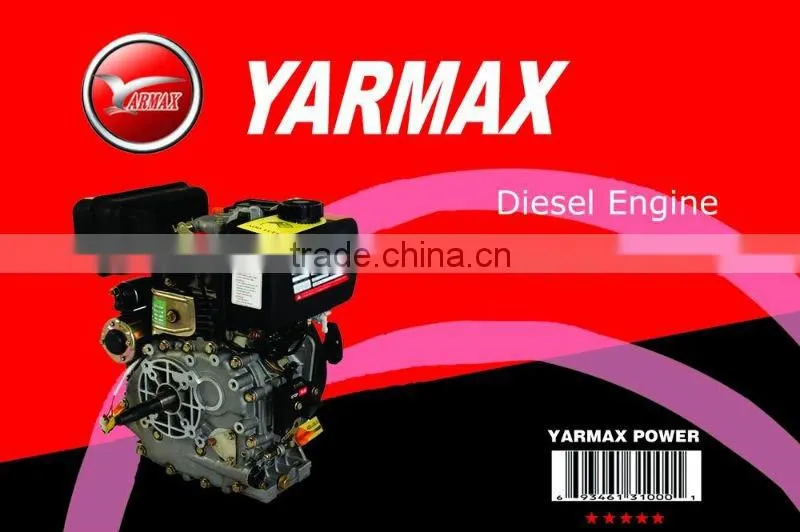

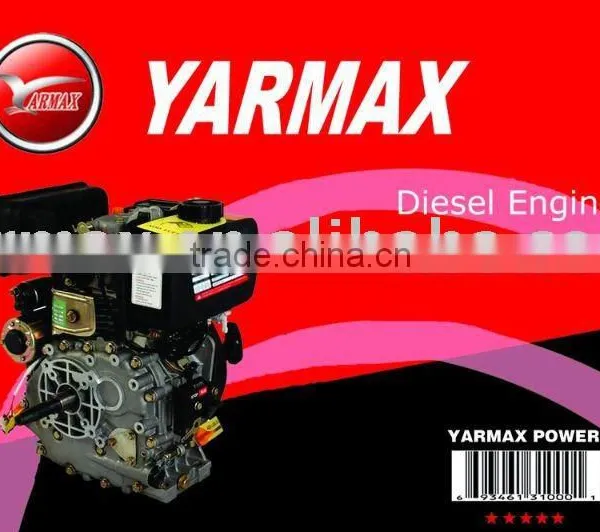

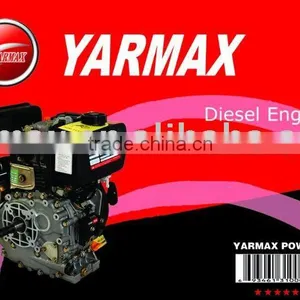

Help CenterDiesel Engine 186FE
US$ 220 - 250
MOQ: 10 Sets
Key Specifications
Get Latest Price
Usage:
Other, Agricultural
Fuel:
Diesel
Stroke:
4 Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Power Tiller Engine 186FUS$ 185 - 220MOQ: 10 Sets -
Water Cooled Diesel Engine S195,ZS1100,ZS1110,ZS1115,ZS1125,ZS1130US$ 230 - 285MOQ: 10 Sets
-
Water Cooled Diesel Engine ZS100US$ 235 - 290MOQ: 10 Sets
-
Changchai Type Diesel Engine ZS1115US$ 260 - 305MOQ: 10 Sets
-
Changchai Type Diesel Engine ZS1125US$ 330 - 380MOQ: 10 Sets
Usage
Other, Agricultural
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Air-cooled
Start
Electric Start
Place of Origin
Jiangsu, China
Brand Name
YARMAX
Model Number
KM186FE
Specifications
Kipor type Diesel engine10HP Diesel Engine
Direct injection Diesel engine
Small Diesel Engine
KM186FE diesel engine
Model |
KM186FE |
|
Type |
Single-cylinder,vertical,4-stroke air-cooled diesel engine |
|
Combustion system |
Direct lnjection |
|
Bore X Stroke(mm) |
86x70 |
|
Displacement(cc) |
406 |
|
Engine Speed(rpm) |
1500 |
1800 |
Max.output(kw) |
6 |
6.3 |
Rated output(kw) |
5.7 |
6 |
Fule |
0# or -10# light diesel fuel |
|
Fule oil tank volume(L) |
5.5 |
|
Lubricatiom oil volume(L) |
1.65 |
|
Fule oil consumption rate(g/kw.h) |
275.1 |
281.5 |
Valve clearance (mm) |
0.10-0.15 |
|
PTO Model |
Crankshaft |
|
Starting system |
Recoil & Electric |
|
PTO rotation direction |
It is clockwise as viewing from the flywheel end |
|
Battery |
Optional |
|
Dimension(mm) |
522x522x578 |
|
Net weight(kg) |
45 |
|
20FT |
220 |
|
We reserve the right to change specifications without notice | ||
