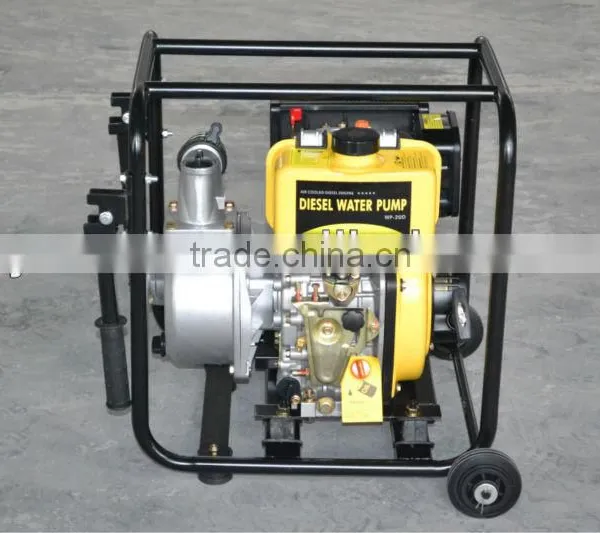

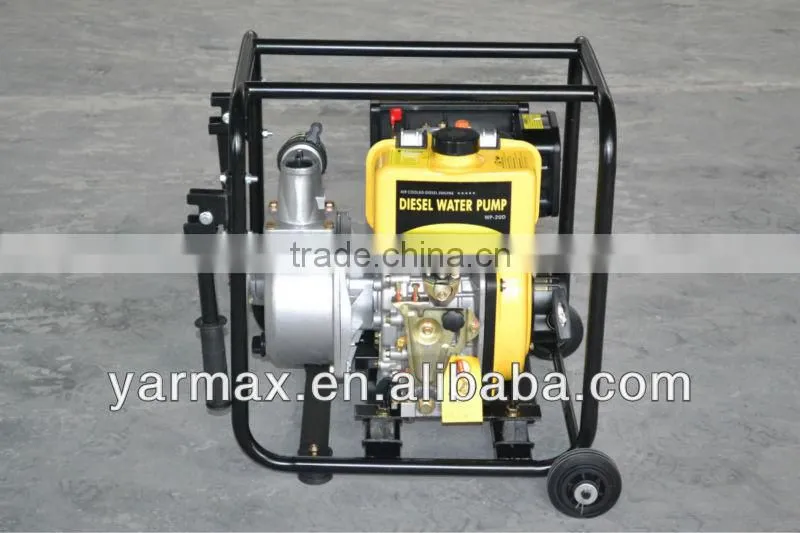

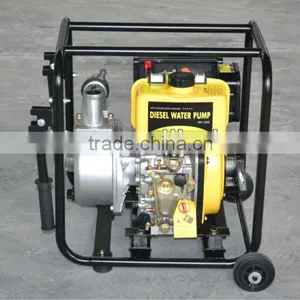

4 Inch Water Pump With Two Wheels Hydraulic Pump With CE Certificate

Name: 4 Inch Water Pump With Two Wheels Hydraulic Pump With CE Certificate
Brand: SUMOKAMA
SKU: 140760592

US$ 200 - 500 MOQ: 15 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

SUMOKAMA

Model Number:

KDP40

Changzhou Yarmax Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name SUMOKAMA

Model Number KDP40

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Other, irrigation

Power Electric

Standard or Nonstandard Standard

Fuel Diesel

Pressure Low Pressure

Specifications

agricultural irrigation diesel water pump in china
Low noise and vibration
price of diesel water pump set
electric water pump

Model	KDP40
Suction, discharge port diameter[mm(in)]	100(4")
Rated total head (m)	16
Max. total head (m)	31
Self-priming time (s/4m)	180
Max suction head (m)	31
Rated capacity (m³/hr)	60
Max. capacity (m³/hr)	96
Fuel tank Capacity:L	5.5
Engine model	KM186F
Type	Single-cylinder,vertical, 4-stroke air-cooled diesel engine
Bore X Stroke (mm)	86×70
Fuel	Summer:0# Winter: -10#
Lubrication Oil Model	SAE10W-30(above CD grade)
Lubrication oil volume:L	1.65
Fuel oil consumption rate(g.kw/h)	435
Displacement:L	0.406
Power/ speed:KW, r/min	6.3/3600
Compression Ratio:	20
Noise level(dB(A)/7m)	79
Oil alert	Yes
Connecter of infall, Connect of outfall	Yes
Filter	Yes
Seal ring	Yes
Hoop	Yes
Dimension: mm	675×505×645
Dry weight:kg	70
20FT	99
Luxury big fuel tank	optional
Electrical start	optional
30Ah MF Battery	optional
We reserve the right to change specifications without notice
