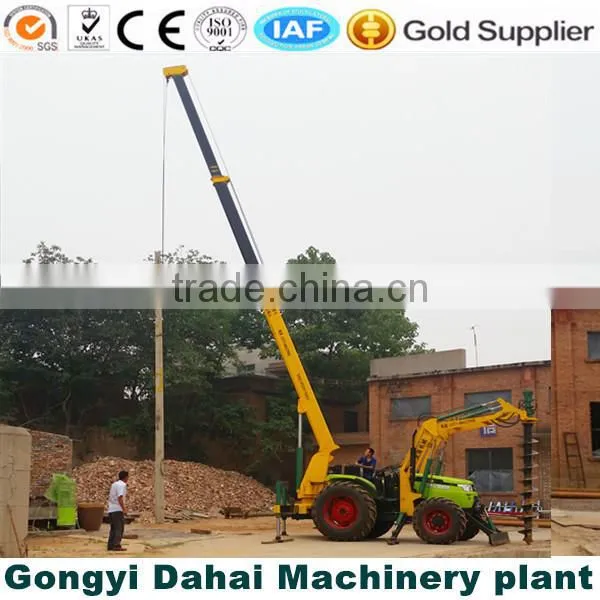

Drill holes and erection power pole, multi functional telegraph pole pit digging machine
DH-pole erection machine is widely used to plant big plants and to erect electricity and solar poles. The Pole Erection Machine is a tractor operated application, designed especially for Rural Electrification work hence Pit designs and dimensions can be customized as per pit design.
cement pole borehole of power construction, Photovoltaic (pv) stent pile foundation drilling, Pile foundation of building construction and so on.
Dahai Tractor mounted crane with drill rig is our patent product which has been shown on CCTV-10 channels , our machine can be Widely used for Cement pole borehole of power construction, Photovoltaic (pv) stent pile foundation drilling,Pile foundation of building construction ,etc.Below picture is our patent certificate ,means we are the only supplier to own the technology.
Drilling depth |
0 -6m |
Drilling diameter |
1m-2m |
Standard drill pipe |
300mm-500mm (can customize 500~1000mm drill pipes) |
Lifting method |
Full hydraulic |
Standard drilling time |
40s (diameter of 300mm-500mm) |
Drill Head Material |
Tungsten alloy |
Auger Material |
High-manganese carbon steel |
Crane |
5 ton or 8 ton for choice |
Tractor |
Model 1004 BOMR tractor, 100HP |
Dimension |
L5900*W2000*H2600mm |
Weight |
7.3 t |
Application |
loess, clay, pebble sand, weathered granite, tundra. |
Not suitable for |
rocks, whole sand bed ,household garbage and so on. |
Operator needed |
1 person |
1. Have four hydraulic stabilizer legs, with cross-country 2 or 4 wheel-drive, with wide tires
2. 360° rotation gear motor, hydraulic hoisting and drilling system, combining the auger drill rig with crane, one equipment can realize the drilling and pole uprighting work, more efficient and cost-effective.
3. YTO tractor as power, strong enough.
4. Fully hydraulic driving.Full-automatic put and upright the pole.
In order to order the suitable product,you need to make sure the following details:
application→drilling depth→drilling caliber→stratum
