Specifications
1. CNC hydraulic press brake;2. Integrated DELEM DA-52 4axis controlling NC system;
3. Electric hydraulic synchro function;

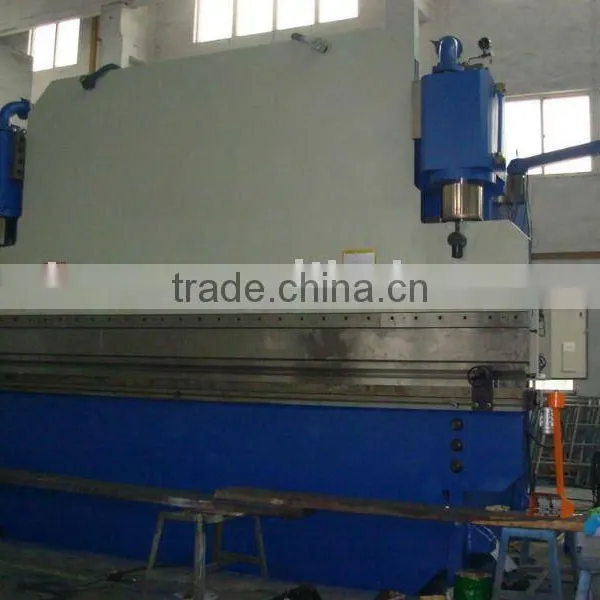

CNC Hydraulic Press Brake Machine
Features:
1. This CNC Hydraulic Press Brakemachine is widely used to process sheet metal bending in automobiles, machinery, shipbuilding, electrical appliances, light industry and decoration industry.
2. Advanced configuration, high precision and high efficiency CNC hydraulic press brake.
3. Adopts steel-welded mechanism, with sufficient strength and rigidity.
4. Adopts table convex NC deflection compensation structure, ensuring the high bending work accuracy.
5. With integrated DELEM DA-52 4axis controlling NC system.
6. With electric hydraulic synchro function.
Specification |
Uint |
CPB-700/6100 |
|
Nominal Pressure |
KN |
7000 |
|
Length of working table |
mm |
6100 |
|
Distance between two columns |
mm |
4770 |
|
Throat depth |
mm |
600 |
|
Stroke of the ram |
mm |
400 |
|
Max. open height between worktable and ram |
mm |
820 |
|
Stroke adjustment of the ram |
|
300 |
|
Stroke speed of the ram |
Idle |
mm/s |
50 |
Working |
mm/s |
7.5 |
|
Return |
mm/s |
75 |
|
|
Style |
|
Y225S-4 |
Main motor power |
KW |
37x2 |
|
Gear pump flow |
L/min |
63x2 |
|
Max. working pressure of hydraulic system |
MPA |
26 |
|
Over dimensions (LxWxH) |
mm |
6350x2600x4300 |
|
