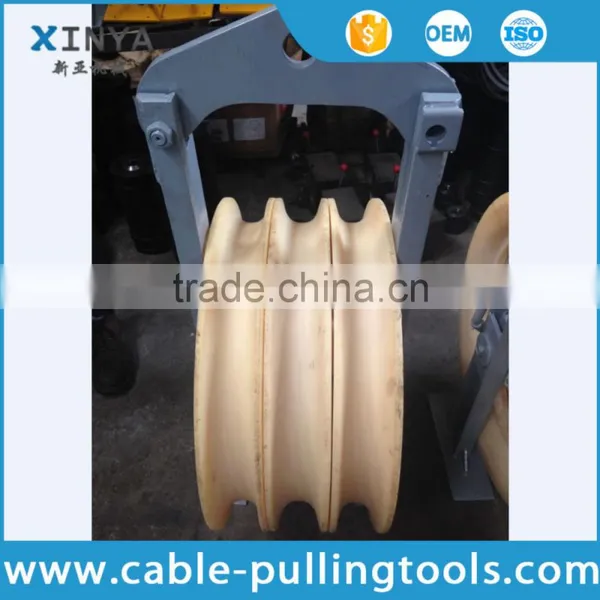

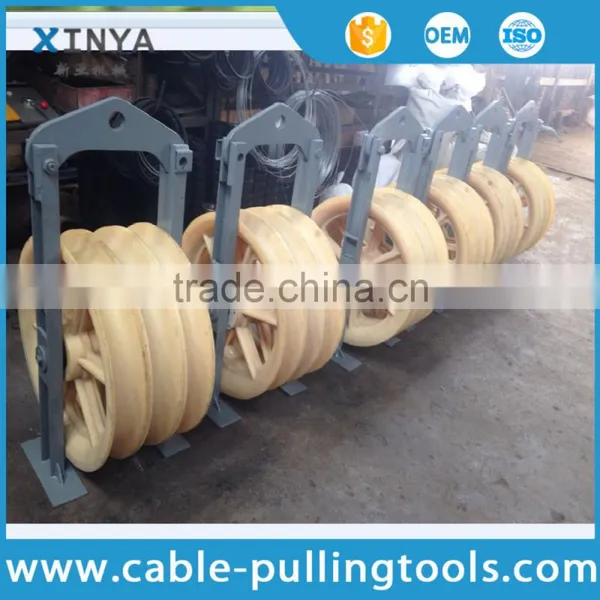

660mm Diameter 3 Sheave Conductor Pulley Stringing Pulley Block With Nylon Wheel
US$ 30 - 400
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Type:
Other, Other, pulley block
Material:
Nylon
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
D Class Cable Entrance Protective Roller Electrical Cable RollerUS$ 15 - 30MOQ: 1 Set -
Tandem Nylon Sheave Stringing Pulley BlockUS$ 20 - 80MOQ: 5 Sets
-
Annular Cable Pulley Cable Roller Trench Roller With Aluminum WheelUS$ 15 - 30MOQ: 1 Set
-
Stringing Equipment Tandem Sheave Stringing Pulley Block With Nylon WheelUS$ 20 - 80MOQ: 5 Sets
-
Model SHR-2.5 Tandem Sheave Stringing BlockUS$ 20 - 80MOQ: 5 Sets
Type
Other, Other, pulley block
Material
Nylon
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
SHDN
660mm Diameter 3 Sheave Conductor Pulley Stringing Pulley Block With Nylon Wheel
Application and Features
660mm Diameter 3 Sheave Conductor Pulley Stringing Pulley Block With Nylon Wheel is used to release the wire in the overhead transmission line.
And it can be used for single conductor, double split wire, four split wire, six split wire and so on.
Technical Data
| Product No. | Model Type | Rated Load(KN) | Applicable Conductor ACSR(mm2) | Weight(kg) | Sheave No. | Outside Dia*Groove Dia* Sheave Width(mm) |
| 80317 | SHDN-660*100 | 20 | ≤500 | 20 | 1 | Φ660*Φ560*100 |
| 80320 | SHSQN-660*100 | 40 | 85 | 3 | ||
| 80321 | SHWQN-660*100 | 60 | 110 | 5 |
