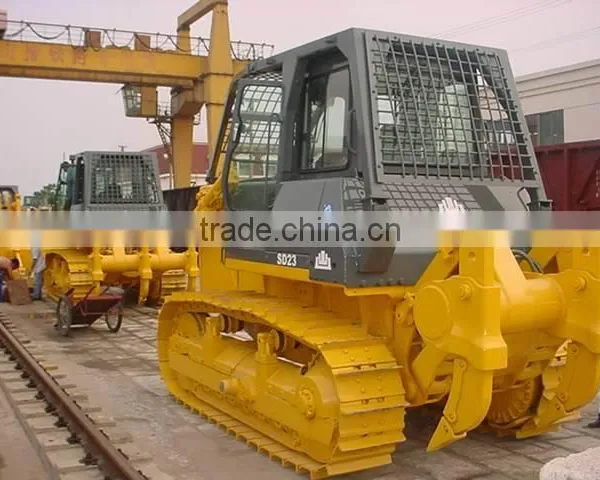

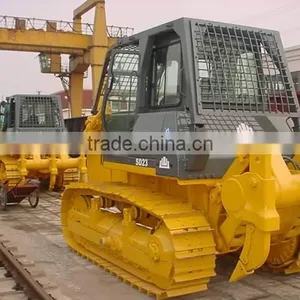

230HP Hot Sale SHANTUI Bulldozer SD23:
Operating weight (Ripper not included): 24.6t
L*W*H (Ripper not included): 5874*3725*3360mm
Standard Model with Straight tilt blade
| ITEM | UNIT | SD23 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 5874×3725×3360 |
| Operating weight (Ripper not included) | t | 24.6 |
| Engine | - | Cummins NT855-C280S10 |
| Rated power | kW/rpm | 169/2000 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt bladeU-bladeAngle blade |
| Blade width | mm | Straight tilt blade 3725×1395U blade3860×1379 Angle blade4365×1107 |
| Dozing capacity | m3 | Straight tilt blade 7.8 U blade 8.4Angle blade 5.4 |
| Ma× drop below ground of blade | mm | 540 |
| Lift height of blade | mm | 1210 |
| Ripper type | - | Single ripperThree-shank ripper |
| Ripping depth of ripper | mm | Single ripper 695Three-shank ripper 666 |
| Lifting height of ripper | mm | Single ripper 515 Three-shank ripper 555 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 7 |
| Number of track shoes (each side) | - | 39 |
| Width of track shoe | mm | 560/610/660 |
| Track gauge | mm | 2000 |
| Ground length and ground pressure | mm/MPa | 2840-0.078 |
| Pitch | mm | 216 |
| Forward speed | km/h | 0–3.8 |
| 0–6.8 | ||
| 0–11.8 | ||
| Reverse speed | km/h | 0–4.9 |
| 0–8.5 | ||
| 0–14.3 |
SPARE PARTS SUPPLY
WE HAVE OUR OWN SPARE PARTS STORE, 90% OF THE BULLDOZER SPARE PARTS
CAN BE DELIVERED DIRECTLY FROM US WITHIN 24HOURS
Sales Service
u Being available online 24 hours a day.
u Responding to your e-mails at the first time.
u Providing the best choice according to the customer’s needs.
u Giving reception and organize visit of the factory, meeting, technical communication for the customers.
After-sales Service
u Warranty: Silkway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.
u Installation&Maintenance: Silkway has the ability to provide you with overall installation of complicated machinery and equipment, such as, crawler crane, tower crane, construction hoist, etc. Helping you to carry out the normal operation of the machines immediately.
