Home > Transportation > Forklifts & Parts > Forklift > Containers 45 Ton Reach Stacker CRS450CCZ5 With Good Price for Sale

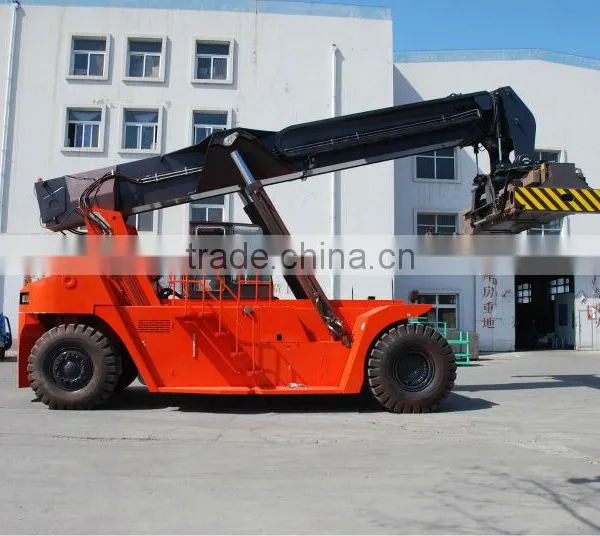

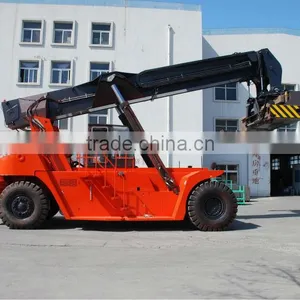

Containers 45 Ton Reach Stacker CRS450CCZ5 With Good Price for Sale
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, New
Place of Origin:
Jiangsu, China
Brand Name:
SILKWAY
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
45 Ton Container Reach Stacker With Good Price for SaleNegotiableMOQ: 1 Unit -
ZOOMLION 30Ton Mobile Crane QY30V Best Price SupplierUS$ 90,000 - 150,000MOQ: 1 Unit
-
ZOOMLION Truck Crane 30Ton Capacity QY30V for Hot SaleUS$ 90,000 - 150,000MOQ: 1 Unit
-
30Ton Capacity ZOOMLION Truck Crane QY30V With Best Price From CHINAUS$ 90,000 - 150,000MOQ: 1 Unit
-
Best Price !High Quality 10 Ton Tower Crane TC6015 for SaleNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
SILKWAY
Model Number
CRS450CCZ5
Type
Manual Pallet Truck
Power Souce
Diesel Engine
Rated Loading Capacity
45000KG
Max. Lifting Height
15100MM
Min. Lifting Height
400MM
After-sales Service Provided
Engineers available to service machinery overseas
THE SPECIFICATION OF 45 ton container Reach Stacker
| ITEM | unit | data | |||
| Rated capacity | Rront distance | 1900mm | 5floor | kg | 40,000 |
| 1900mm | 4floor | 45,000 | |||
| 3850mm | 4floor | 31,000 | |||
| 6350mm | 3floor | 15,000 | |||
| Max. lift height | mm | 15,100 | |||
| Min. ground clearance | mm | 400 | |||
| Min. turning radius | mm | 8,200 | |||
| Lifting speed ( unload/loaded ) | mm/s | 430/231 | |||
| Lowering speed ( unload/loaded ) | mm/s | 300/250 | |||
| Travelling speed ( unload ) | f/r | 1-speed | km/h | 3.5/3.5 | |
| 2-speed | 8.5/8.5 | ||||
| 3-speed | 15/15 | ||||
| 4-speed | 2525 | ||||
| Max.gradiend ( unload/loaded ) | % | 30/15 | |||
| Brake distance | unload 20km/h | m | ≤7 | ||
| load 20km/h | m | ≤3.5 | |||
| Boom | max angle | deg | 60 | ||
| max. spread | mm | 6800 | |||
| SERVICE WEIGHT | kg | 73000 | |||
| Tyre | model | front | pneumatic | 18.00-25-40pr | |
| rear | pneumatic | 18.00-25-40pr | |||
| air pressure | front | mpa | 0.9 | ||
| rear | mpa | 0.9 | |||
| Engine | type | qsm11t3 c335 | |||
| manufacturer | cummins usa | ||||
| displacement | cc | 10800 | |||
| rated output | kw/rpm | 250/2100 | |||
| max. torque | nw/rpm | 1674/1400 | |||
| cylinder diameter | mm | 120 | |||
| stroke distance | mm | 147 | |||
| Trans-mission box | type | 14.7hr36432 | |||
| manufacturer | dana | ||||
| shift type | apc72 auto shift | ||||
| gear shift | f 4/ r 4 | ||||
| speed ratio(f/r) | 1 class | 5.814/5.814 | |||
| 2 class | 2.422/2.422 | ||||
| 3 class | 1.379/1.379 | ||||
| 4 class | 0.784/0.784 | ||||
| Spreader | model | manufacturer | max. capacity | ||
| 817 | elme | 45000kgs | |||
| rotation | service weight | suitability | |||
| 95 /- 185 | 8800kgs | 20ft-40ft loaded container | |||
| shift distance | |||||
| 800mm(l/r) | |||||
| Steering axle | type | inner turning angle ( each side ) | |||
| transward cylinder | 70 | ||||
| steering cylinder ( cyl. dia.x core diax stroke) | |||||
| 180x110x551mm | |||||
| Hydraulic system | pump | sweden (parker) pavc100b38r2a22 | |||
| pump | sweden (parker) pavc100b38r29a4a+gp2and30as | ||||
| valve | initial valve | (parker)x104920 sweden | |||
| main steering valve | (parker)m400ls-012 | ||||
| balance valve set | (parker)91217414 | ||||
| steering device | (parker)hgb32128 | ||||
| others | the other kd parts are from sweden parker | ||||
