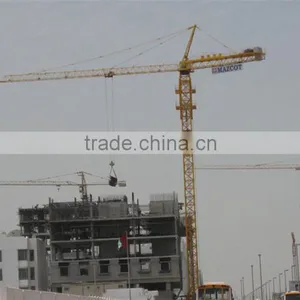

New Tower Crane QTZ50 (TC5009)

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

construction machinery

Max. Lifting Load:

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction machinery

Max. Lifting Load 4t

Brand Name zxm

Model Number QTZ50(TC5009)

Certification CE, ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Free height: 35 m
Max height: 140 m
Jib length: 50 m
Max load: 4t
Tip load: 0.9t

Specialist for exporting tower crane

With Hydraulic Self-raising Mechanism

With Famous Jiangte Motors

With Various Safety Devices

High quality and competitive price, high performance.

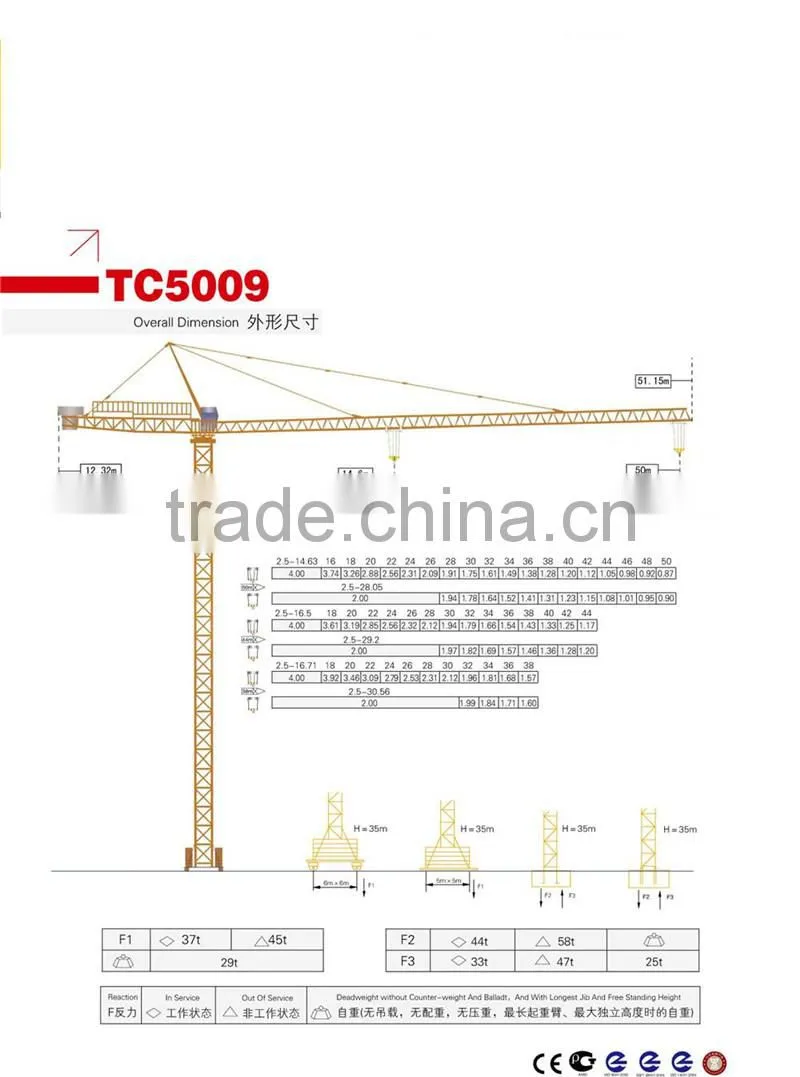

Model	TC5009 (QTZ50)
Version	Fixed type
Free height	35 m
Max height	140 m
Max radius	50 m
Jib end load	0.9t at 50 m
Max load	4t at 14.6 m
Hoisting mechanism ↑↓	JT1
Drum capacity	300 m
Lifting speed	4.6 m/min~62.7m/min
Slewing mechanism	HZ-50
Slewing speed	0.7 r/min
Trolley mechanism ←→	BF-50
Trolley speed	20 or 40 m/min
Power line voltage	380V/50Hz
Color	Yellow
Counter weight	Steel-structured frame(without concrete)
Mast section	1.6×1.6×3m
Mast section and Mast section connection	By screw
Foundation bolt	Included
Cabin (with air condition)	Included
Telescoping cage	Included
Pump and cylinder	Included
Main cable	Included
Basic mast	Included
