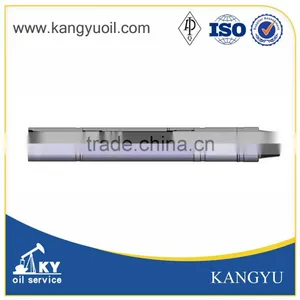

Bumper Sub Type KXJ
Main features of the Bumper Sub:
1.The bumper sub type KXJ is a down jarring tool.
2. The tool can engage or disengage overshot or spears.
3.Can be used as a feed-off tool in milling or cutting operations.
4.It can be used in conjunction with an overshot or spear.
Specification Series and Performance Parameters :
Type |
O.D. mm (in.) |
I.D. mm (in.) |
Connection API |
Max. Tensile load MN (Ibf) |
Max. Working Torque kN·m (Ibf·m) |
Max. Stroke mm (in.) |
Overall Length (Locked) mm (in.) |
KXJ36 |
95 (3 3/4) |
38 (1 1/2) |
NC26 |
0.5(112500) |
4 (900) |
508 (20) |
1 800 (70.87) |
KXJ40 |
122 (4 13/16) |
32 (1 1/4) |
2 3/8REG |
0.6(135000) |
5 (1125) |
700 (27.56) |
1 900 (74.80) |
|
KXJ44 |
114 (4 1/2) |
38 (1 1/2) |
2 3/8REG NC31 |
0.8(180000) |
7 (1575) |
440 (17.32) |
1 500 (59.06) |
KXJ46 |
121 (4 3/4) |
38 (1 1/2) |
NC38 |
0.9(202500) |
8 (1800) |
914 (35.98) |
1 986 (78.19) |
KXJ62 |
159 (6 1/4) |
51 (2) |
NC50 |
1.5(337500) |
13 (2925) |
1400 (55.12) |
2 627 (103.43) |
KXJ165 |
165 (6 1/2) |
51 (2) |
NC50 |
1.6(360000) |
14 (3150) |
1400 (55.12) |
2 633 (103.66) |
KXJ70 |
178 (7) |
70 (2 3/4) |
NC50 |
1.8(405000) |
15 (3375) |
1552 (61.10) |
2 737 (107.76) |
KXJ80 |
203 (8) |
70 (2 3/4) |
6 5/8REG |
2.2(495000) |
18 (4050) |
1600 (62.99) |
2 901 (114.21) |
KXJ90 |
229 (9) |
76 (3) |
7 5/8REG |
2.5(562500) |
20 (4500) |
1600 (62.99) |
2 881 (113.43) |
