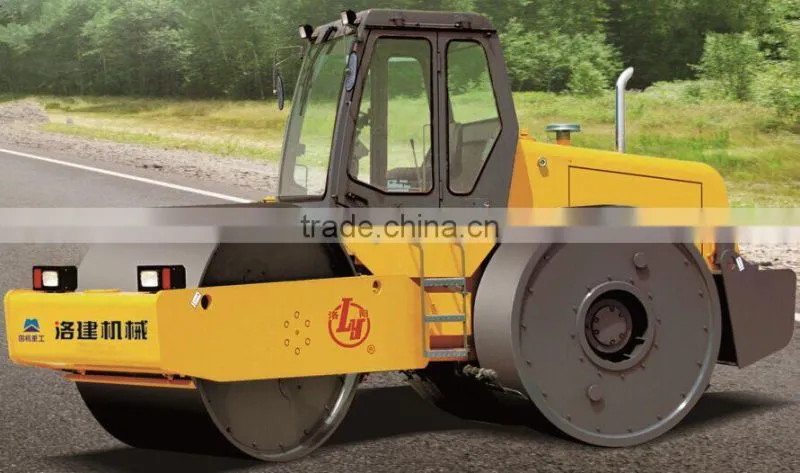

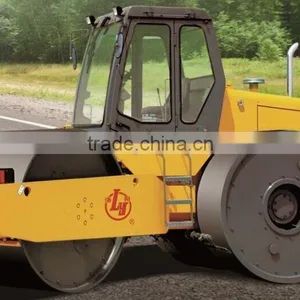

Help Center21 Ton Heavy Duty Three Wheel Static Road Roller With High Quality
Related Products
-
3 Ton Ride on Full Hydraulic Vibratory Road RollerNegotiableMOQ: 1 Unit -
China Brand Construction Machinery Pneumatic Road Roller 26000kgNegotiableMOQ: 1 Unit
-
4 Ton Mini Road Roller JCC204 Mini Road Roller Compactor for SaleNegotiableMOQ: 1 Unit
-
High Performance Cheap Price LRS2030 Pneumatic Tire Road Roller Import Engine Weight 30 TonNegotiableMOQ: 1 Unit
-
3 Ton Mini Road Roller JCC303 Mini Road Roller Compactor for SaleNegotiableMOQ: 1 Unit

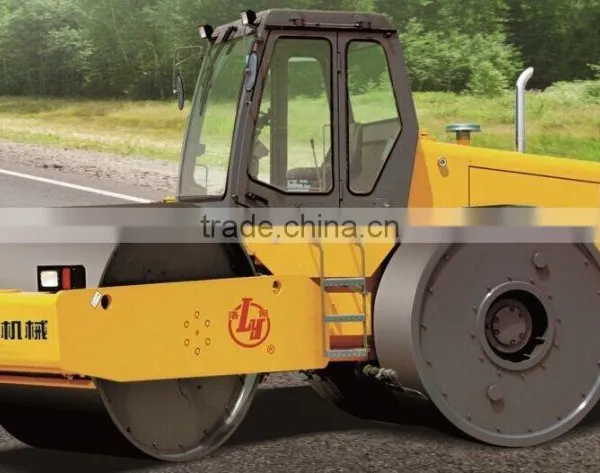

LGS21/25 Static Three Wheel Rollers
Articulated heavy duty three wheel static roller is suitable for compaction of various such as gravel, crushed stone, sand-macadam mixture, sandy soil, stabilized soils and bituminous concrete etc. on base course and surface construction, which is a universal compaction equipment for highway, municipal road parking area and industrial ground.
Main Features
1.Full hydraulic steering system provides good performance while moving&climbing for various tough environments.
2.Mechanical drive system with 3-F&3-R speed shifts make high efficiency.
3.Dual independent brake system assures high safety.
4.Sprinkler equipped specially have no damage to road surface.
5.Increase the drum diameter with outstanding compaction effect.
6.Counterweight box mounted optionally. Enables user to adjust linear pressure and assures best efficiency.
TECHNICAL SPECIFICATIONS
Model: LGS18/21
Max.Operating mass: 21000kg
Min.Operating mass:18000kg
Static linear load, front: 560N/cm
Static linear load, rear: 1050N/cm
Max.Travel speed: 11.1km/h
Gradeability: 20%
Turning radius: 5800mm
Drum width: 2270mm
Wheelbase: 2950mm
Ground clearance: 460mm
Diesel model: YC6108G
Diesel power: 85kW
Overall dimensions: 5530*2270*3150mm
