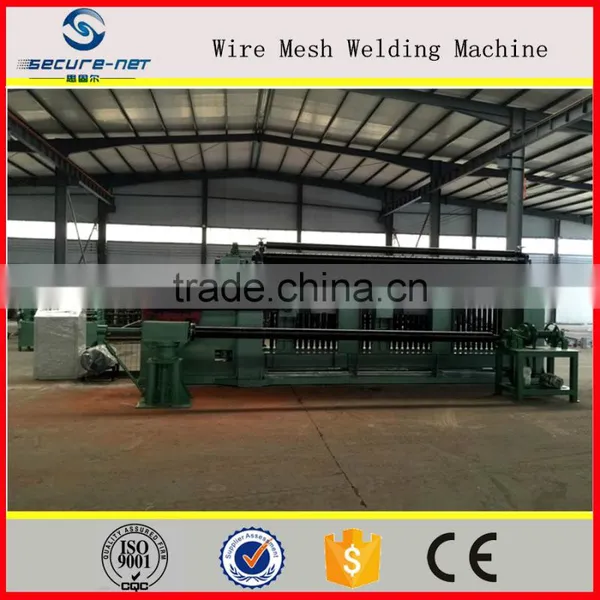

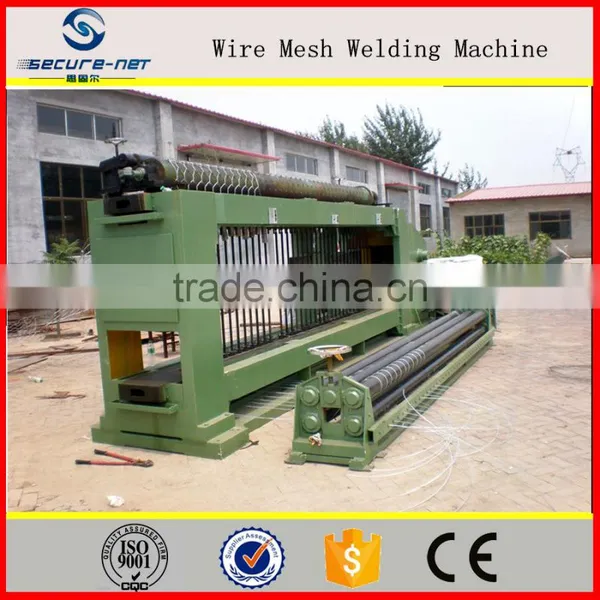

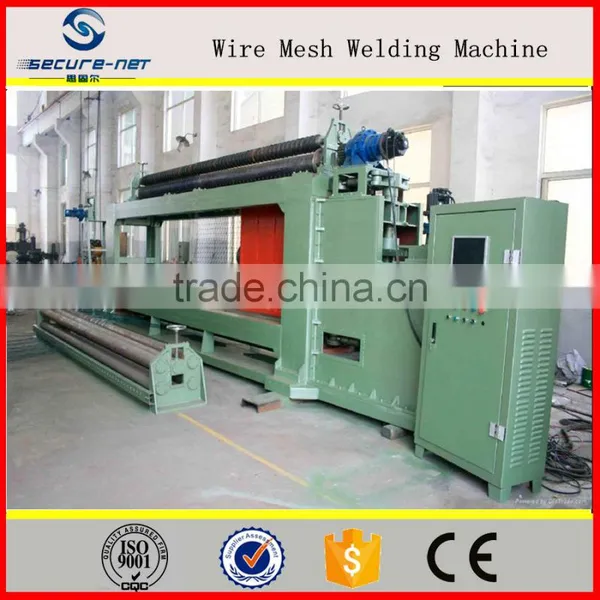

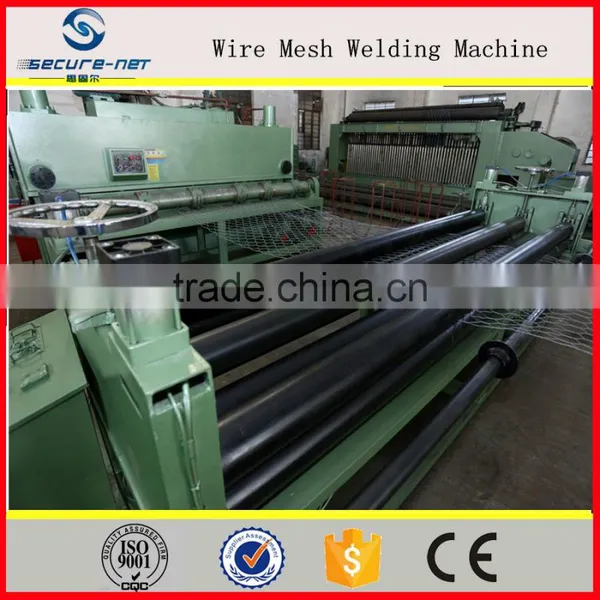

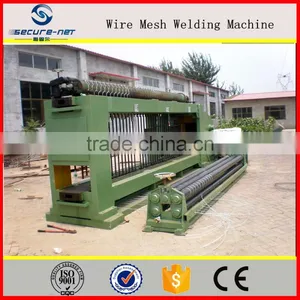

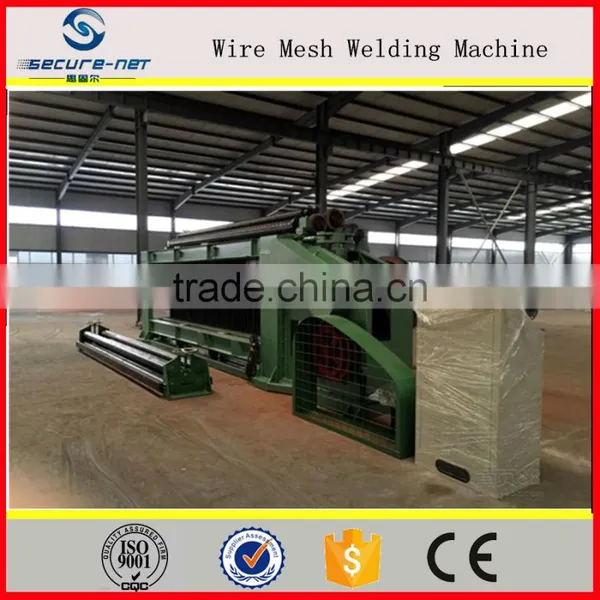

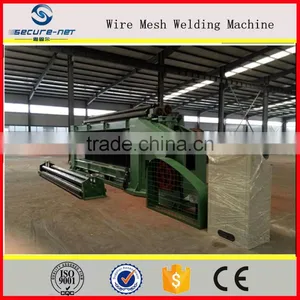

Automatic gabion mesh knitting machine supplier from China
Application
Gabion Box Machine is also called heavy-duty hexagonal wire netting machine.
The gabion box is made of pieces of hexagonal wire netting ,which is mainly used as building material,it can be used in resevior for closure ,and also serves as highway guard rail netting , railway guard rail netting , greeguard rail netting,side hill mesh case,flood fighting mesh case,dike dam guard rail netting,zoo guard rail netting,mine tunnel supporting mesh,grass land mesh ,etc.
Performance characteristics:
1.It is touch screen control
2,It has the function of frequency control of motor speed according to different of wire diameter.
3,It has buffer function when speed increase or decrese in very short time.
4,It can count output every day or every year.
5,It can save about 30% energy.
The main technical parameter:
|
Specification (mm) |
Max Net Breadth(mm) |
Max Thread Diameter(mm) |
Twisting Model |
Main Shaft Ratary Speed |
Motor Power (KW) |
Theoretical Production Speed |
|
|
|
Twisting |
m/h |
Diamention (LXWXH) mm |
Weight (T) |
||||||
60X80 |
2300 |
2.8 |
double |
25 |
11 |
25 |
165 |
5200X1400X2400 |
13 |
3300 |
2.8 |
double |
25 |
15 |
25 |
165 |
6200X1400X2400 |
14 |
|
4300 |
2.8 |
double |
25 |
22 |
25 |
165 |
7200X1400X2400 |
15 |
|
80X100 |
2300 |
3 |
double |
25 |
11 |
25 |
195 |
5200X1400X2400 |
13 |
3300 |
3 |
double |
25 |
15 |
25 |
195 |
6200X1400X2400 |
14 |
|
4300 |
3 |
double |
25 |
22 |
25 |
195 |
7200X1400X2400 |
15 |
|
100X120 |
2300 |
3.2 |
double |
25 |
11 |
25 |
225 |
5200X1400X2400 |
13 |
3300 |
3.2 |
double |
25 |
15 |
25 |
255 |
6200X1400X2400 |
14 |
|
4300 |
3.2 |
double |
25 |
22 |
25 |
225 |
7200X1400X2400 |
15 |
|
