Air Operated Wash Pumps
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
All-K or OEM
Model Number:
590881
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or other port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Coupling Spanner for Tank Cleaning Hose For MU SeriesNegotiableMOQ: 5 Pieces -
Combined Spanner for Tank Cleaning Hose For MU SeriesNegotiableMOQ: 1 Piece
-
Air Line Filter/Regulator/Lubricator CombinationNegotiableMOQ: 5 Sets
-
Cordless Drill Drivers C/w Battery Charger and Plastic CaseNegotiableMOQ: 1 Set
-
Tank Cleaning Hose Accessories for MU SeriesNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
All-K or OEM
Model Number
590881
Theory
Other, air pump
Structure
Other, air pump
Usage
Water
Power
Pneumatic
Standard or Nonstandard
Standard
Fuel
Other, air
Pressure
High Pressure
Application
Maritime
Specifications
Air Operated Wash Pump1.for heavy duty cleaning with detergents, caustics, and dilute acid type cleaners.
2.Material:S.S.316

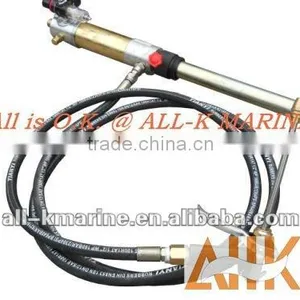

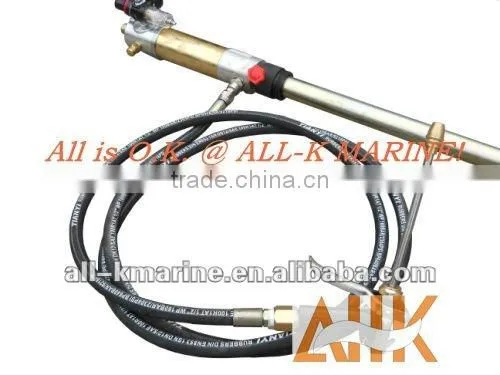

Air Operated Wash Pumps
IMPA CODE 590881
| Designed for heavy duty cleaning with detergents, caustics and dilute acid type cleaners. |
| May be directly mounted in the two inch bug of a standard 55 gallon drum |
| Or could be mounted on the wall or in a 55 gallon open head drum when using the mounting brackets. |
| All metal parts in the pumping section are manufactured from 316 stainless steel. |
| Code | 590881 |
| Type | Air operated wash pump |
| Ratio | 10:1 |
| Air Motor Diameter | 4-1/4''(10.795cm) |
| Stroke (Double Acting) | 4''(10.16cm) |
| Air inlet | 1/2-14NPTF-1(F) |
| Air Exhaust | 1-1/4-11-1/2 NPTF-1(F) |
| Material Outlet | 3/8-18NPTF-1(f) |
| Neterial Inlet | Barbed |
| Air Inlet Pressure Range | 0-150psi |
| Fluid Pressure Range | 0-1500psi |
| Displaicement in3 per Cycle | 11.0(0.18 ltr) |
| Cycle per Gallon | 21(5.5 ltr) |
| Maximum Delivery/Min | 3.9 gallons (14.8 ltr) |
