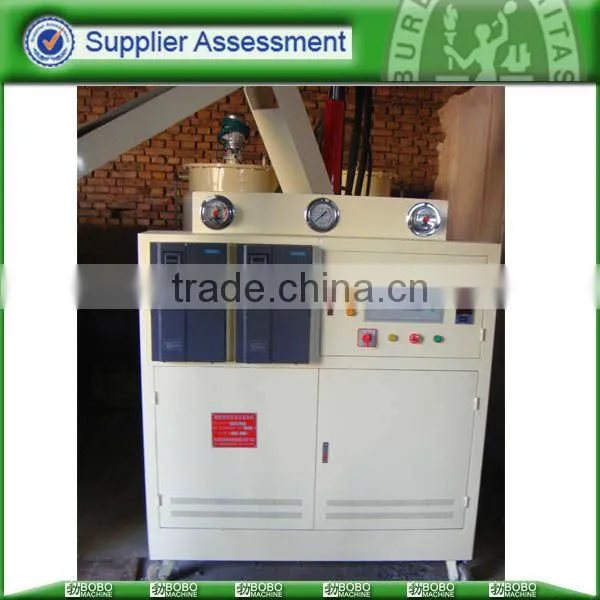

Pipe Insulation Foam Machine
US$ 12,000 - 16,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
BOBO
Model Number:
GZ-220/300
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PU Insulation MachineUS$ 4,000 - 18,000MOQ: 1 Set -
High Prssure Foam Spraying MachineUS$ 3,000 - 6,000MOQ: 1 Set
-
Freezer Insulation Foam MachineUS$ 3,000 - 10,000MOQ: 1 Set
-
Smart/ Portable / Mobile Foam Injection MachineUS$ 3,000 - 5,000MOQ: 1 Set
-
High Configuration Polyurethane Foam Insulation Injecting MachineUS$ 13,000 - 20,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
BOBO
Model Number
GZ-220/300
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Pipe insulation foam machine1-PLC control system
2- Full hydraulic driven
3- Up to 12 meter pipe
4- Automatic cleaning
Pipe insulation foam machine
Working flow:
Steel pipe preparing → lining plastic/metal jacket → loading to the foam generating table → injecting polyurethane into the space between steel pipe and outer jacket→ removing insulated pipe from the table
air/ oil/ flue fitler foam injection machine. ployurethane foam injection machine, foam injecting machine, foam generator, foam spraying machine, foam sprayer
Espuma de máquina injetora. ployurethane máquina da injeção da espuma, máquina da espuma injetável, gerador de espuma, máquina de pulverização de espuma, pulverizador da espuma
Main technical data
- Main pump motor power: 2.5kW
- Mixing motor power: 0.75kW
- Hydraulic pump motor power: -
- Auto glue filling motor power: 2.2kW (two set for two tanks)
- Flux: 0~6kg per minute
- Capacity of the tanks for polyurethane glue: 180kg each, auto filling glues
- PLC automatic control: PLC programmable, automatically heating, injecting, cleaning and blowing; Special PLC system from Chinese domestic which can save 99 programs.
- Equipped piston type measuring pump: HJ30-50 (two), adjusting accuracy 0.05%.
- Generating pressure: 8-10MPa (one 0.8 m3 air compressor is equipped by buyer)
- Machine weight: about 600kg
- Dimension: 1370mm x 1350mm x 2250mm
