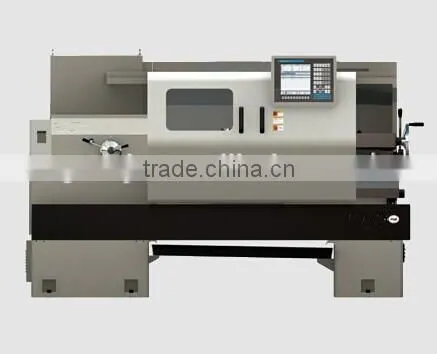

CK7516GS CNC Lathe machine price for sale with high accuracy
Features
CK7516GS is a speedy CNC lathe with swing of Φ 400mm developed after researching into techniques of efficient machining structure optimization, thermal distortion & compensation, static and dynamic measuring in speedy turning, modular design of functional assemblies, dynamic performance study and light-weighted techniques, speedy movement drive and dependability. With features of high accuracy, high speed, high efficiency and grinding replaced by turning, the machine is suitable for manufacturing in aerospace, military and medicinal industries.
Specification
Item |
Unit |
CK7516GS |
|
Capacity |
Max swing over bed |
mm |
Φ450 |
Max swing over slide |
mm |
Φ280 |
|
Max workpiece length |
mm |
500 |
|
Max turning diameter |
mm |
Φ285 |
|
Max bar diameter mm |
mm |
Φ35 |
|
Spindle |
Hydraulic chuck diameter |
mm |
Φ169 |
Spindle nose |
A2-5 (GB/T5900.1) |
||
Spindle thru-hole mm |
mm |
Φ49 |
|
Spindle bearing diameter(front/rear) |
mm |
Φ90/Φ75 |
|
Spindle speed |
r/min |
80-8000 |
|
Main motor power(cont/30min) |
kW |
15/18.7 |
|
Tailstock |
Quill diameter/travel |
mm |
Φ70/80 |
Center taper |
MT No.4 |
||
Carriage |
Slant degree |
45° |
|
X/Z-axis travel |
mm |
165/510 |
|
X/Z-axis rapid traverse |
m/min |
42/42 |
|
X/Z-axis servo motor torque |
Nm |
10.3/14.7 |
|
X/Z-axis ball screw diameter |
mm |
Φ32/Φ40 |
|
Turret |
Number of stations/ revolving tool stations |
12 |
|
Tool section (turning/boring) |
mm |
20×20/Φ32 |
|
Others |
Power source |
kVA |
40 |
Dimension(L×W×H) |
mm |
3740×1780×1930 (side-mounted chip conveyer) |
|
Gross weight |
kg |
4500 |
|

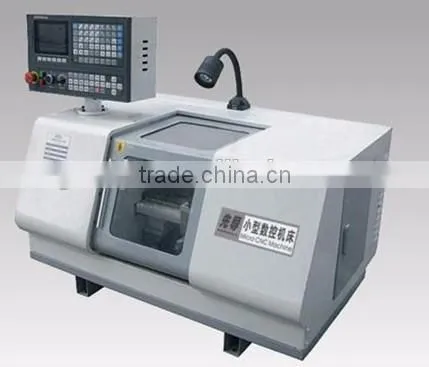

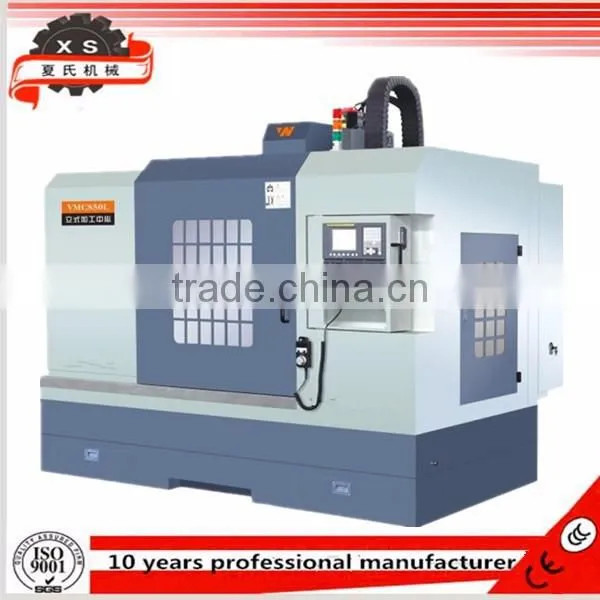

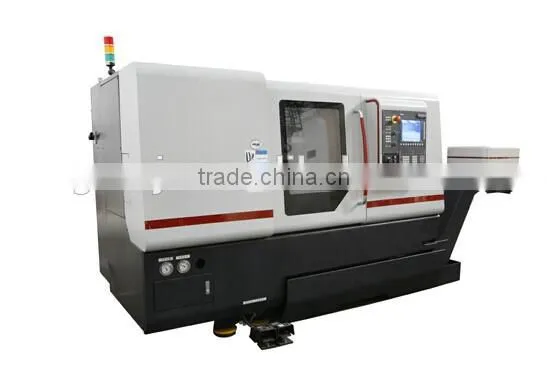

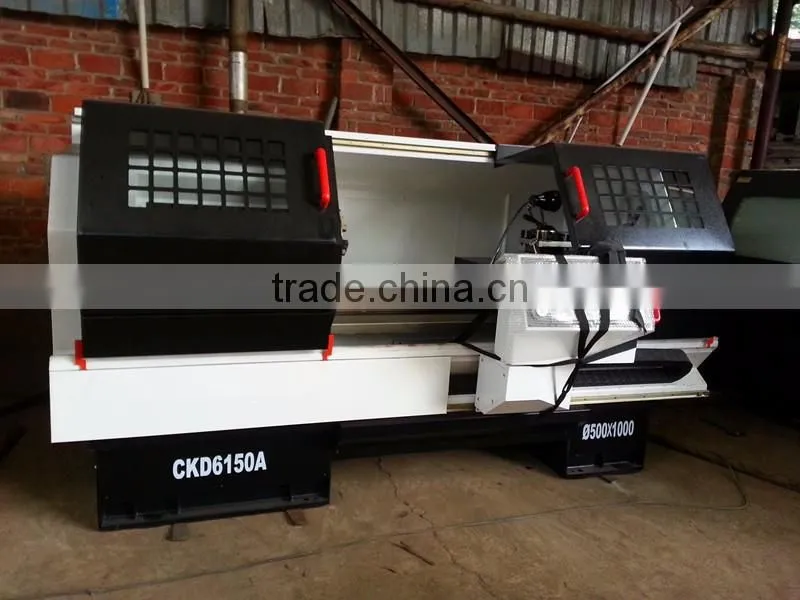

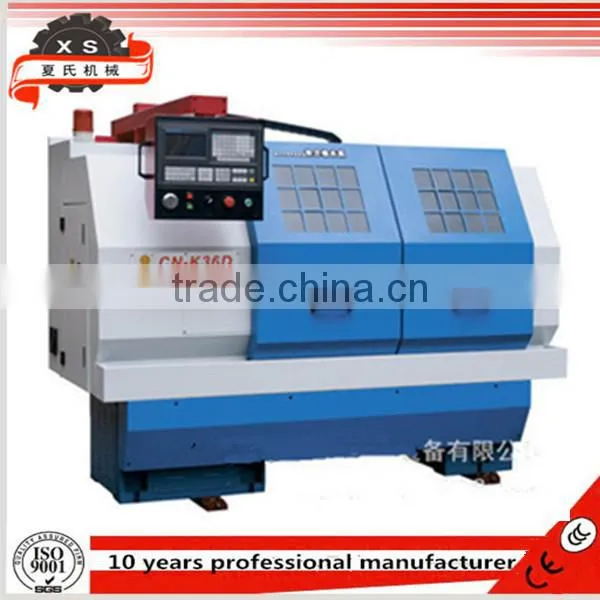

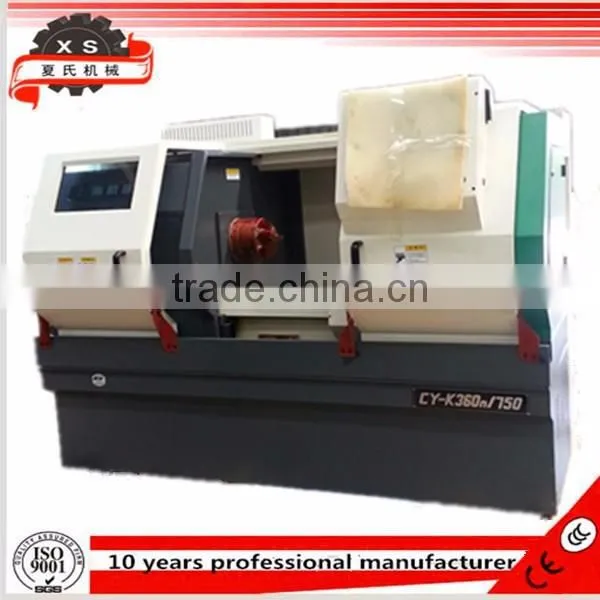

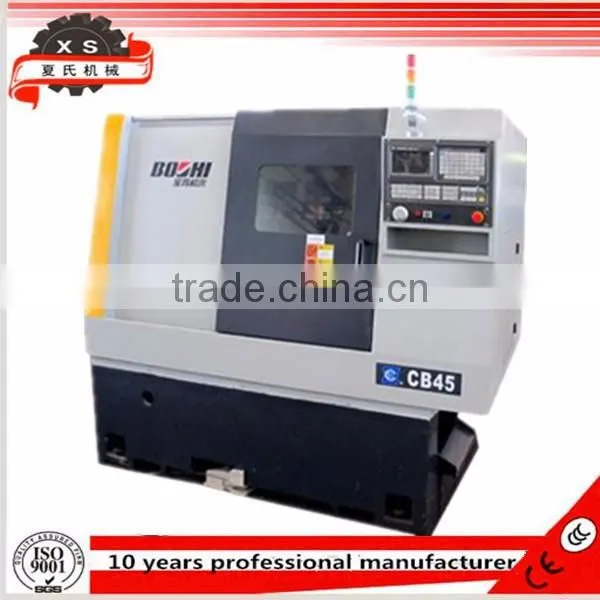

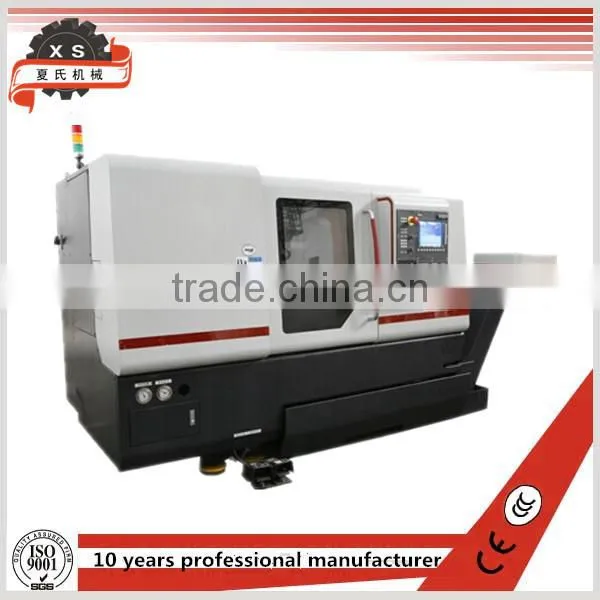

Picture for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
