2015 Kefan High Frequency Rotary Dryer With Good Performance

2015 Kefan High Frequency Rotary Dryer With Good Performance thumbnail-1
2015 Kefan High Frequency Rotary Dryer With Good Performance photo-1
US$ 1,000 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drying Equipment
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Henan Kefan Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drying Equipment
Place of Origin Henan, China
Brand Name Kefan
Model Number Various
Voltage Industrial voltage
Power(W) 3-75 kw
Dimension(L*W*H) According to the model
Weight 2.9-104.9 t
Certification ISO/CE/BV
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

2015 Kefan High Frequency Rotary Dryer with Good Performance

2015 Kefan High Frequency Rotary Dryer with Good Performance


Rotary Dryer Introduction:
Rotary dryer(Drying Machine  is used for drying materials with a certain humidity or granularity in milling of ores, building materials, metallurgy and chemical industry. Gyro drying machinery has a strong adaptability of materials and it can dry various materials. The operation is very simple and reliable. For this reason, it is widely used in metallurgy, building materials food, light industry, chemical industry, coal,medicine and mining industries.

Rotary Dryer Working Principle:

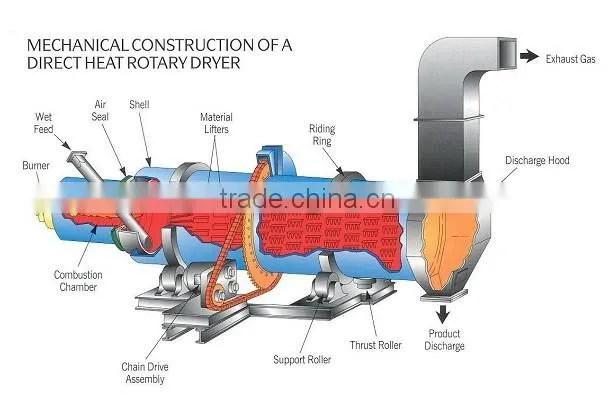

Materials are sent to hopper of rotary dryer by belt conveyor or bucket elevator.The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the according to user needs.

Rotary Dryer Technical Parameter:



Model (mm)

Obliquity(%)

Rotation speed (r/min)

Feeding temperature (degree)

Power (kw)

Capacity(t/h)

Weight (t)

600x6000

3-5

3-8

<=700

3

0.5-1.5

2.9

800x8000

3-5

3-8

<=700

4

0.8-2.0

3.5

800x10000

3-5

3-8

<=700

4

0.8-2.5

4.5

1000x10000

3-5

3-8

<=700

5.5

1.0-3.5

5.6

1200x10000

3-5

3-8

<=700

7.5

1.8-5

14.5

1200x12000

3-5

3-8

<=700

11

2-6

14.8

1500x12000

3-5

2-6

<=800

15

3.5-9

17.8

1800x12000

3-5

2-6

<=800

18

5-12

25

2200x12000

3-5

1.5-6

<=800

18.5

6-15

33

2200x18000

3-5

1.5-6

<=800

22

10-18

53.8

2200x20000

3-5

1.5-6

<=800

30

12-20

56

2400x20000

3-5

1.5-5

<=800

37

18-30

60

3000x20000

3-5

1.5-5

<=800

55

25-35

78

3000x25000

3-5

1.5-5

<=800

75

32-40

104.9

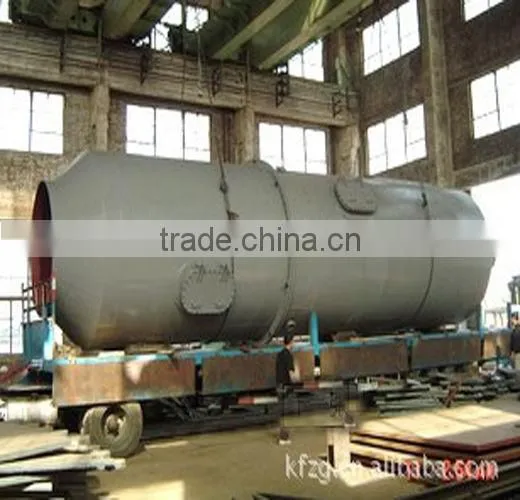

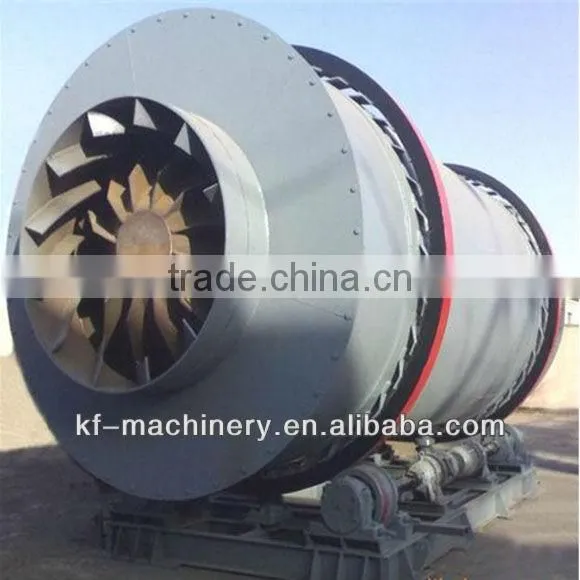

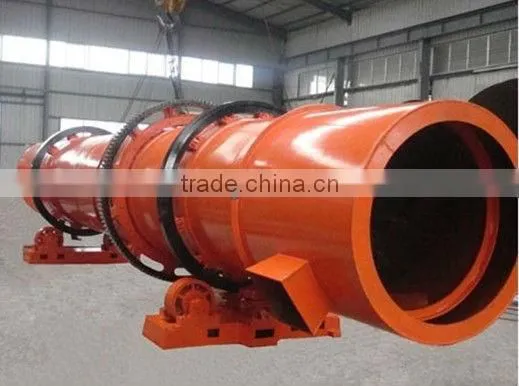

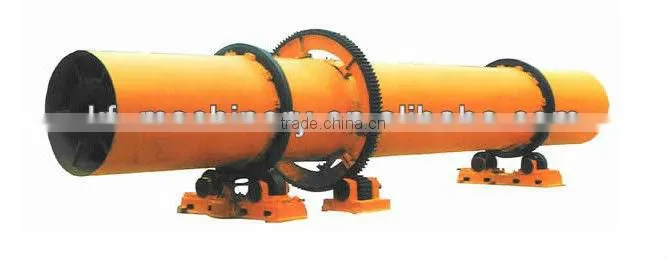

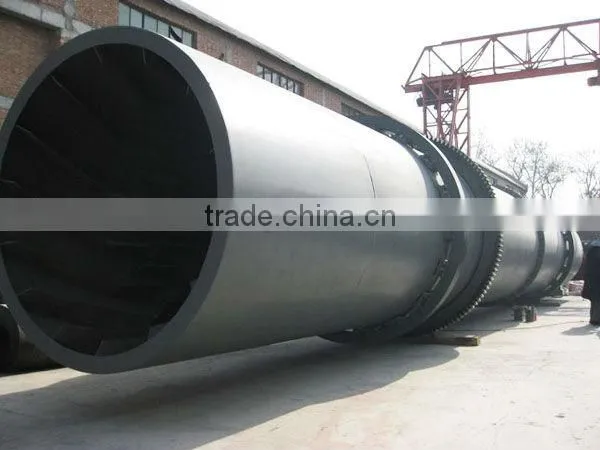

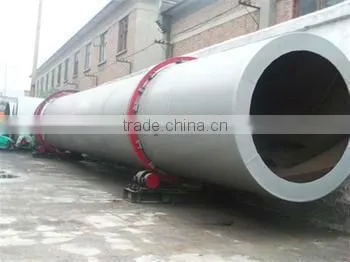

Pictures:



2015 Kefan High Frequency Rotary Dryer with Good Performance

2015 Kefan High Frequency Rotary Dryer with Good Performance2015 Kefan High Frequency Rotary Dryer with Good Performance2015 Kefan High Frequency Rotary Dryer with Good Performance2015 Kefan High Frequency Rotary Dryer with Good Performance2015 Kefan High Frequency Rotary Dryer with Good Performance2015 Kefan High Frequency Rotary Dryer with Good Performance2015 Kefan High Frequency Rotary Dryer with Good Performance2015 Kefan High Frequency Rotary Dryer with Good Performance2015 Kefan High Frequency Rotary Dryer with Good Performance

Certificates:

2015 Kefan High Frequency Rotary Dryer with Good Performance2015 Kefan High Frequency Rotary Dryer with Good Performance
