Specifications
1. hydraulic metal baler2. Super quality
3. High efficiency
4 .Good sale
5. Easy operation
Introduction
This baler is designed for baling steel wires from tires. .
Features
(1) High pressing force
(2) Stable pressing plate
(3) Stable pressing guide equipment
(4) Mounts of Preventing bounding equipments
(5) With oil tank on the baler
(6) Buttons control
(7) Can be made with mobile cars.
Specification
Type |
CB81T-160A |
CB81T-160B |
||||
The packet method |
Push |
|||||
The nominal thrust |
The pressure cylinder |
1600KN |
||||
Lateral pressure cylinder |
1250KN*2 |
|||||
Door cover oil cylinder |
630KN |
|||||
The Wicket oil cylinder |
320KN |
|||||
stroke |
The pressure cylinder |
1500mm |
1700mm |
|||
Lateral pressure cylinder |
1200mm |
1200mm |
||||
Door cover oil cylinder |
1160mm |
1160mm |
||||
The packet cylinder |
450mm |
450mm |
||||
Compression chamber size (L×W×H) |
1600*1000*800mm |
1600*1200*800mm |
||||
Packet block size (L×W×H) |
400*400*400-1000 |
|||||
The production efficiency |
2000-3500(KG/H) |
2000-4000(KG/H) |
||||
The system pressure |
25Mpa |
|||||
pump |
160YCY14-1B |
63YCY14-1B*2 |
||||
A single cycle time |
≤130s |
|||||
Power |
22KW |
15KW*2 |
||||
The motor speed (r/min) |
980 |
|||||
Pump discharge (ml/r) |
160 |
63 |
||||
Tank capacity (L) |
1600 |
|||||
Weight of machine |
9.8 tons |
11.5 tons |
||||
Delivery time |
30 days |
|||||
Quotation have deadline |
30 days |
|||||

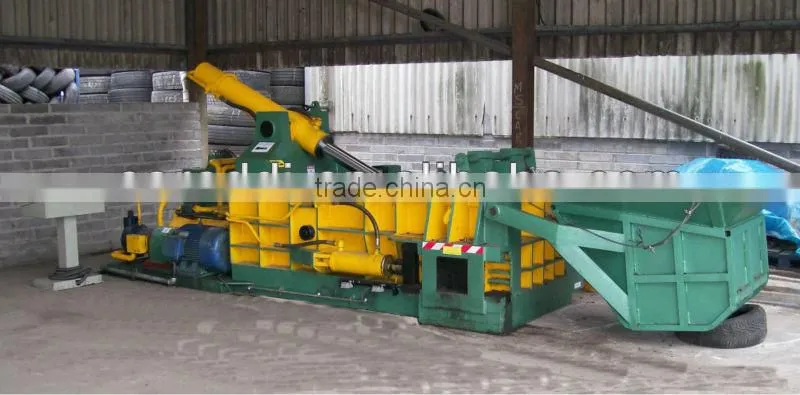

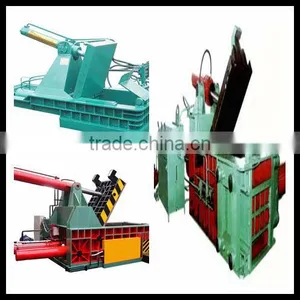

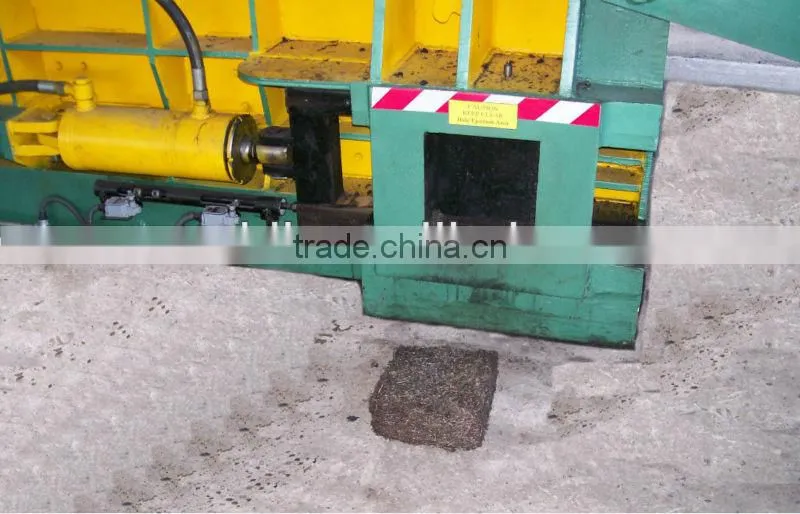

Pictures
