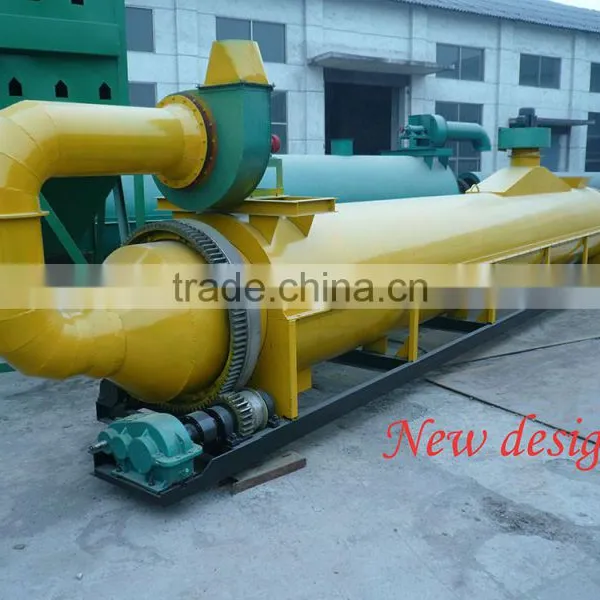

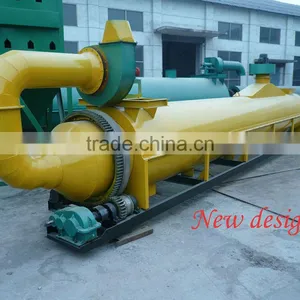

Hot mini Sawdust dryer price for furniture
Application
Hot mini sawdust dryer price for furniture is mainly used for sawdust drying, and it also can be used in other industries, such as furniture industry, breeding industry, planting industry, building materials industries.
Working principle
In the hot mini sawdust dryer price for furniture, the rotary roller is on the active roller, the active roller through the motor or gearing-down device to drive the rotary cylinder rotating at low speed.
A feed inlet is set between the hot air furnace and rotary cylinder.
A rotating cylinder is provided with a stir blade.
The baffle is arranged between the rotating cylinder and the filter cylinder, it has a small hole, one end of the filtering cylinder is connecting to the rotating cylinder, and the other end is connecting to the conveying pipe of the material.
Performance characteristic
The biggest characteristic of hot mini sawdust dryer price for furnitureis drying intensity strongly, and it can make the material fast, sufficiently replace the heat exchange medium. The drying time is greatly shortened. small footprint, simple structure, easy to build and easy to maintain which reduce the production cost and maintenance cost. Processing capacity is also a characteristic, and the heat efficiency can reach to60%.
Model |
Gradient (%) |
Speed (r/min) |
Maximum inlet temperature (℃) |
Power (kw) |
Production capacity (t/h) |
Remarks |
HY-600 |
3-5 |
3-8 |
≤700 |
3 |
Different water content, different result |
Production and heating method has a certain relationship |
HY-800 |
3-5 |
3-8 |
≤700 |
4 |
||
HY-1000 |
3-5 |
3-8 |
≤700 |
4 |
||
HY-1200 |
3-5 |
3-8 |
≤700 |
5.5 |
||
HY-1500 |
3-5 |
2-6 |
≤850 |
11 |
||
HY-1800 |
3-5 |
2-6 |
≤850 |
15 |
||
HY-2000 |
3-5 |
1.5-6 |
≤850 |
18.5 |
||
HY-2200 |
3-5 |
1.5-6 |
≤850 |
22 |
||
HY-2400 |
3-5 |
1.5-5 |
≤850 |
22 |
||
HY-2600 |
3-5 |
1.5-5 |
≤850 |
30 |
||
HY-2800 |
3-5 |
1.5-5 |
≤850 |
37 |
||
HY-3000 |
3-5 |
1.5-5 |
≤850 |
45 |
||
HY-3200 |
3-5 |
1.5-5 |
≤850 |
55 |
||
HY-3400 |
3-5 |
1.5-5 |
≤850 |
75 |
||
HY-3600 |
3-5 |
1.5-5 |
≤850 |
90 |
