How to Buy Gasoline Engine Generator Power

How to Buy Gasoline Engine Generator Power thumbnail-1
How to Buy Gasoline Engine Generator Power photo-1
US$ 90 - 120 MOQ: 50 Cartons
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, Construction; Boat; Tillers; Pump;Generator set
Fuel:
Other, Gasoline, Gasoline
Contact Supplier Request Quote Chat Now
Chongqing Tenglong Shines Electro-Mechanics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHONGQING
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, Construction; Boat; Tillers; Pump;Generator set
Fuel Other, Gasoline, Gasoline
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Other, Recoil
Place of Origin Chongqing, China
Brand Name Tenglong Power Group
Model Number TL170/P
Dimension(L*W*H) 400*345*380mm
Weight 18kg
Certification CE
Warranty 1 YEAR

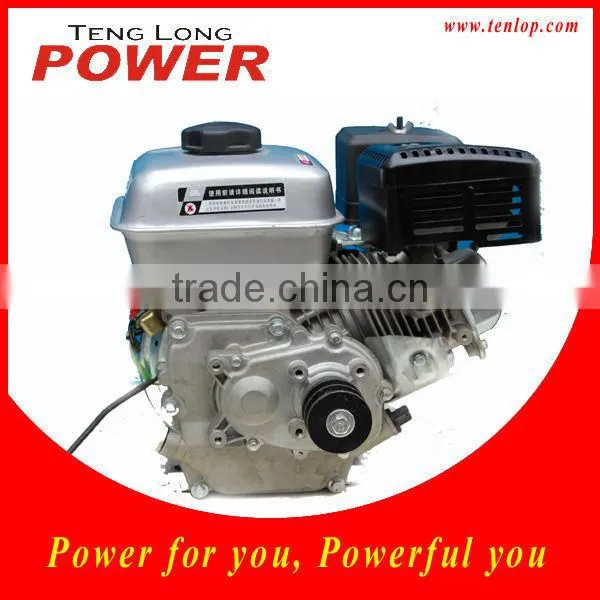

How to Buy Gasoline Engine Generator Power



1.  Factory Spec.( 4 stroke single cylinder, forced air cooling



First manufacture in Chongqing for gasoline/kerosene/LGP Engines, Generator sets, Water pumps andTillers /Cultivators. With more than 10 years experience in general power industry, since 1998.

How to Buy Gasoline Engine Generator Power



2.  Product spec.





MODEL TL170F/P (7.0HP)
TYPE 4 STROKE, 1 CYLINDER, FORCED AIR-COOLING, SV
DISPLACEMENT (CC) 215
BORE X STROKE mm) 70*56
SPEED (rpm) 3600
MAX POWER (HP) 7.0
RATED POWER (HP) 5.6
MAX TORQUE (N.m/rpm) 12/2600
STARTING SYSTEM RECOIL
IGNITION SYSTEM Non-Contact Transistorized Magneto Ignition System
FUEL CAPACITY (L) 6
OIL CAPACITY(L) 1.1
FUEL CONSUMPTION ≤395
PACKING (LxWxH) (mm) 400x345x380
N.W. (Kg) 18



More Gasoline Engine for Chose: (motor a gasolina,motore a benzina,motor de gasolina,Benzinmotor)

L152F/P Side Valve Gasoline Engine Gold Supplier Tenglong Power Group

How to Buy Gasoline Engine Generator Power



MODEL TL168F/P (5.5HP) TL168F-1/P (6.5HP) TL170F/P (7.0HP) TL173F/P (8.0HP)
TYPE 4 STROKE, 1 CYLINDER, FORCED AIR-COOLING, OHV
DISPLACEMENT (CC) 163 196 215 243
BORE X STROKE mm) 68x45 68x54 70 x 56 73x58
SPEED (rpm) 3600 3600 3600 3600
MAX POWER (HP) 5.5 6.5 7 8
RATED POWER (HP) 4.6 5.2 5.6 7.2
MAX TORQUE (N.m/rpm) 8.8/2600 10.8/2600 12/2600 16/2600
STARTING SYSTEM RECOIL OR KEY RECOIL OR KEY RECOIL OR KEY RECOIL OR KEY
IGNITION SYSTEM Non-Contact Transistorized Magneto Ignition System
FUEL CAPACITY (L) 3.6 3.6 3.6 6
OIL CAPACITY(L) 0.6 0.6 0.6 1.1
FUEL CONSUMPTION ≤395 ≤395 ≤395 ≤374
PACKING (LxWxH) (mm) 400x345x380 400x345x380 400x345x380 475x450x505
N.W. (Kg) 16 17 18 23



3. Products shown box

(How to Buy Gasoline Engine Generator PowerHow to Buy Gasoline Engine Generator Power

4. Packing & Shipping(wooden package)



    1 set in a polybag, standard carton box

   How to Buy Gasoline Engine Generator Power

   Customer designed packing method available
