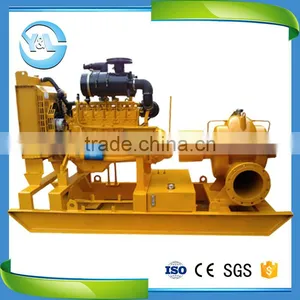

High Capacity Double Suction Diesel Engine Driven Water Pump
US$ 5,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Y&L
Model Number:
TPOW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Pressure Multistage Diesel Engine Driven Water PumpsUS$ 1,100 - 9,600MOQ: 1 Unit -
Engine Driven Heavy Duty Slurry PumpUS$ 690 - 4,450MOQ: 1 Set
-
Y&L (China) Mixed-flow Farm Irrigation Diesel Engine Driven Water PumpUS$ 200 - 4,000MOQ: 1 Set
-
High Suction Lift Self Priming Diesel Engine Driven PumpUS$ 1,600 - 8,900MOQ: 1 Unit
-
High Flow Rate End Suction Diesel Engine Driven PumpsUS$ 1,200 - 8,620MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
Y&L
Model Number
TPOW
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Diesel
Pressure
Low Pressure
Application
Fire
high capacity double suction diesel engine driven water pump
Specification
1. Working Condition
| Size | DN80-800 mm |
| Flow rate | Q≤11600m3/h(3222L/S) |
| Head | 5~250 m |
| Working Pressure | 25bar (2.5Mpa) |
| Suction ability | Wet primining , Vacumm system assisted |
| Working temperature | - 10 °c ~ 105° |
2. Parameter Table
| Pump Model |
Capacity (m3/h) |
Head (m) |
Speed (r/min) |
Shaft Power (kw) |
Impeller's Dia (mm) |
Net Pump Weight (kg) |
| TPOW80-220 | 17 | 16 | 1480 | 1.9 | 215 | 181 |
| 66.5 | 12.8 | 2.9 | ||||
| 108 | 7.8 | 3.3 | ||||
| TPOW80-220 | 60 | 58 | 2950 | 24.3 | 215 | 181 |
| 134.5 | 51 | 23.1 | ||||
| 162 | 46 | 29.4 | ||||
| TPOW80-280 | 22 | 25.9 | 1480 | 3.3 | 275 | 194 |
| 86 | 20.7 | 6.3 | ||||
| 112 | 16.5 | 7.2 | ||||
| TPOW80-280 | 60 | 95 | 2950 | 33 | 275 | 194 |
| 172 | 82.5 | 50.2 | ||||
| 210 | 73 | 60.1 | ||||
| TPOW80-350 | 26 | 37 | 1480 | 4.9 | 348 | 204 |
| 100 | 35.5 | 13.2 | ||||
| 132 | 27.9 | 14.2 | ||||
| TPOW100-260 | 30 | 21.7 | 1480 | 4.3 | 254 | 207 |
| 123.5 | 17 | 7 | ||||
| 170 | 12.5 | 8.1 | ||||
| TPOW100-260 | 52 | 81 | 2950 | 27.6 | 254 | 207 |
| 245.5 | 68 | 55.8 | ||||
| 288 | 60 | 59.2 | ||||
| TPOW100-300 | 100 | 128 | 2950 | 56.2 | 285 | 200 |
| 160 | 121 | 73.2 | ||||
| 200 | 110 | 86.8 | ||||
| TPOW100-320 | 50 | 36 | 1480 | 11.7 | 325 | 223 |
| 141.5 | 29.5 | 14.6 | ||||
| 174 | 25.5 | 17.3 | ||||
| TPOW100-320 | 70 | 141 | 2950 | 64 | 325 | 223 |
| 283 | 119 | 117.6 | ||||
| 324 | 108 | 126.2 | ||||
| TPOW100-400 | 60 | 56 | 1480 | 22.3 | 408 | 241 |
| 163 | 52 | 32.1 | ||||
| 187.2 | 45 | 33.2 | ||||
| TPOW125-240 | 100 | 20.2 | 1480 | 10.9 | 245 | 310 |
| 256.5 | 15.1 | 12.5 | ||||
| 320.1 | 10.8 | 12.4 | ||||
| TPOW125-240 | 111 | 78 | 2950 | 51.8 | 245 | 310 |
| 472.5 | 60.5 | 92.1 | ||||
| 540 | 50 | 90.8 | ||||
| TPOW125-300 | 100 | 32 | 1480 | 17.1 | 301 | 350 |
| 242.5 | 25 | 19.9 | ||||
| 370 | 17.1 | 24.1 | ||||
| TPOW125-300 | 230 | 113 | 2950 | 120 | 301 | 350 |
| 479 | 100 | 157.2 | ||||
| 558 | 92 | 181.6 | ||||
| TPOW125-400 | 160 | 178 | 2950 | 129.3 | 334 | 460 |
| 260 | 166 | 170.3 | ||||
| 310 | 153 | 195.7 | ||||
| TPOW125-450 | 280 | 233.5 | 2950 | 287.2 | 391 | 500 |
| 440 | 225 | 396.5 | ||||
| 500 | 220 | 443.8 | ||||
| TPOW125-480 | 100 | 72 | 1480 | 46.7 | 475 | 500 |
| 294.5 | 69.5 | 70.6 | ||||
| 342 | 64 | 78.4 | ||||
| TPOW125-570 | 250 | 110.5 | 1480 | 123.3 | 521 | 700 |
| 400 | 107 | 166.5 | ||||
| 470 | 104 | 194.3 | ||||
| TPOW150-280 | 140 | 26 | 1480 | 23.1 | 289 | 347 |
| 397 | 20.4 | 25.6 | ||||
| 450 | 18 | 26.6 | ||||
| TPOW150-310 | 310 | 33 | 1480 | 36.2 | 318 | 400 |
| 350 | 29.5 | 35.1 | ||||
| 406 | 27 | 37.8 | ||||
| TPOW150-350 | 150 | 41 | 1480 | 32.8 | 355 | 410 |
| 407.5 | 35 | 46.2 | ||||
| 468 | 32 | 49.7 | ||||
| TPOW150-450 | 150 | 67 | 1480 | 66.8 | 454 | 520 |
| 440 | 60 | 88.8 | ||||
| 582 | 47 | 101.4 | ||||
| TPOW150-570 | 200 | 103 | 1480 | 130.5 | 560 | 740 |
| 537 | 90 | 166.6 | ||||
| 620 | 81.9 | 194.8 | ||||
| TPOW200-340 | 250 | 34 | 1480 | 44.9 | 338 | 590 |
| 638 | 28 | 56.2 | ||||
| 738 | 24 | 58.8 | ||||
| TPOW200-410 | 250 | 60 | 1480 | 87.8 | 415 | 620 |
| 649 | 48 | 99.2 | ||||
| 756 | 43 | 108.6 | ||||
| TPOW200-530 | 260 | 87.5 | 1480 | 129.1 | 530 | 840 |
| 735 | 81.7 | 199.4 | ||||
| 846 | 75 | 216 | ||||
| TPOW200-660 | 250 | 147 | 1480 | 244.1 | 655 | 1000 |
| 721 | 132.5 | 329.3 | ||||
| 828 | 127 | 387 | ||||
| TPOW200-740 | 550 | 205 | 1480 | 529.4 | 690 | 1500 |
| 700 | 200 | 552.6 | ||||
| 850 | 192 | 705.5 |
More Model, Please Contact Me.
Product Description

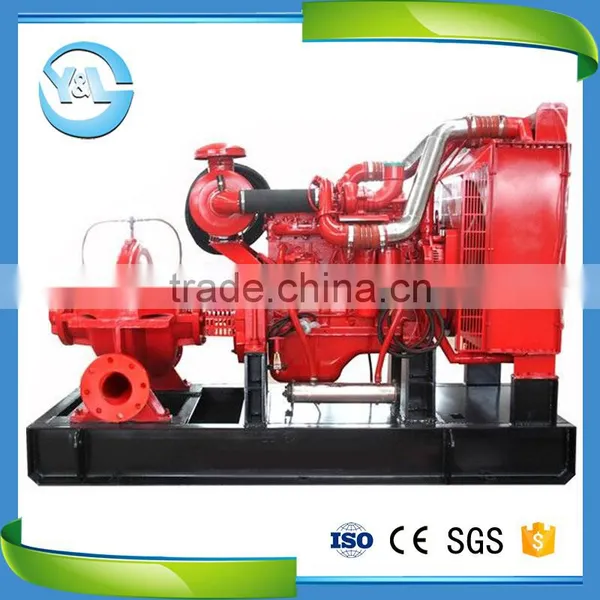

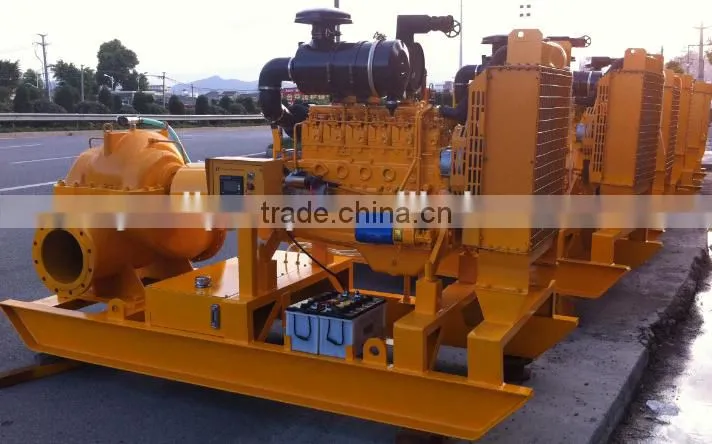

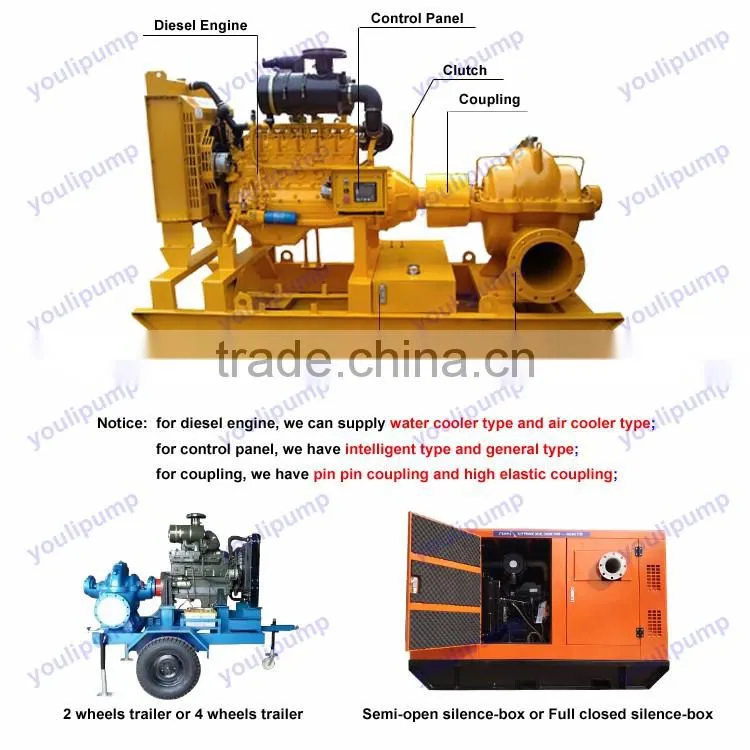

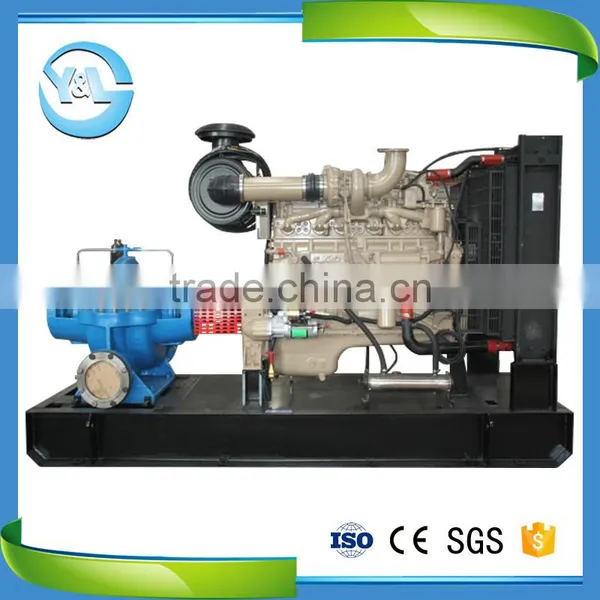

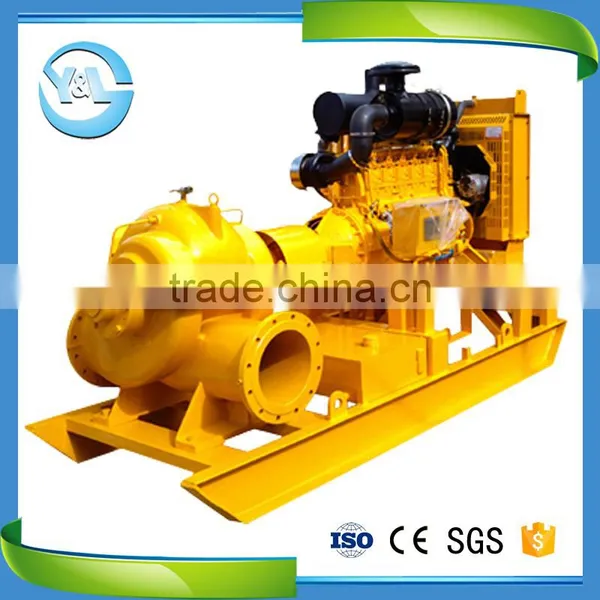

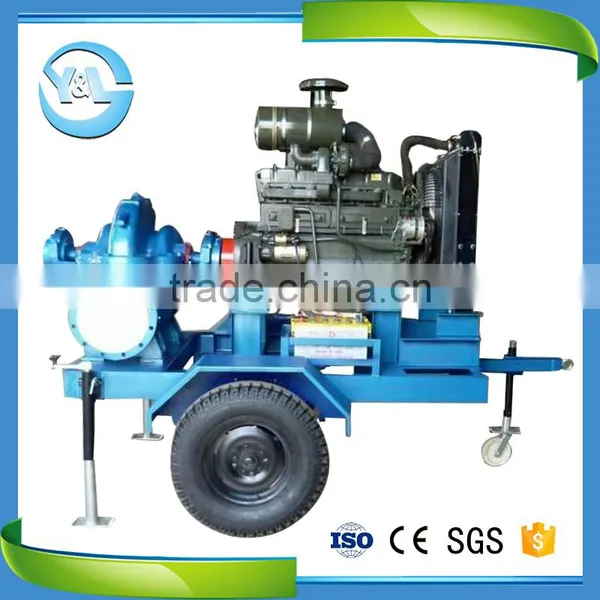

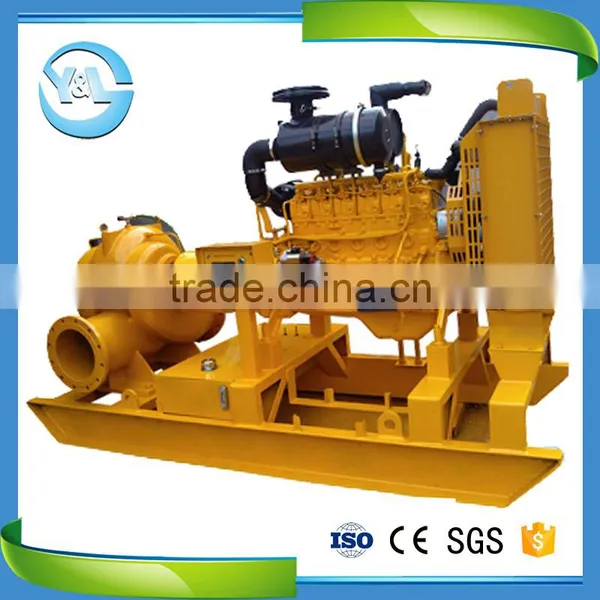

1. Pictures of high capacity double suction diesel engine driven water pump

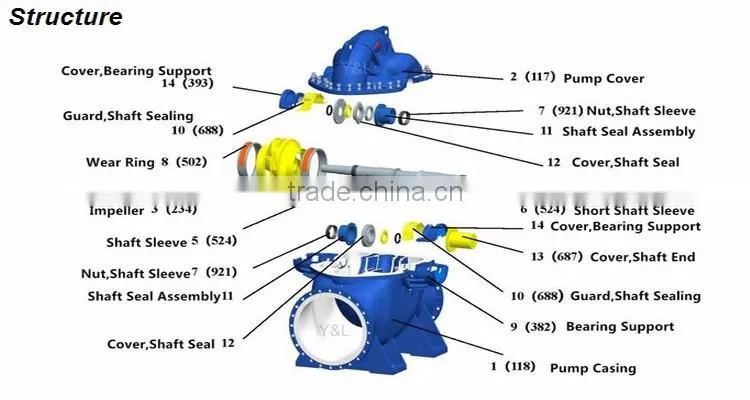

2. Pump Structure

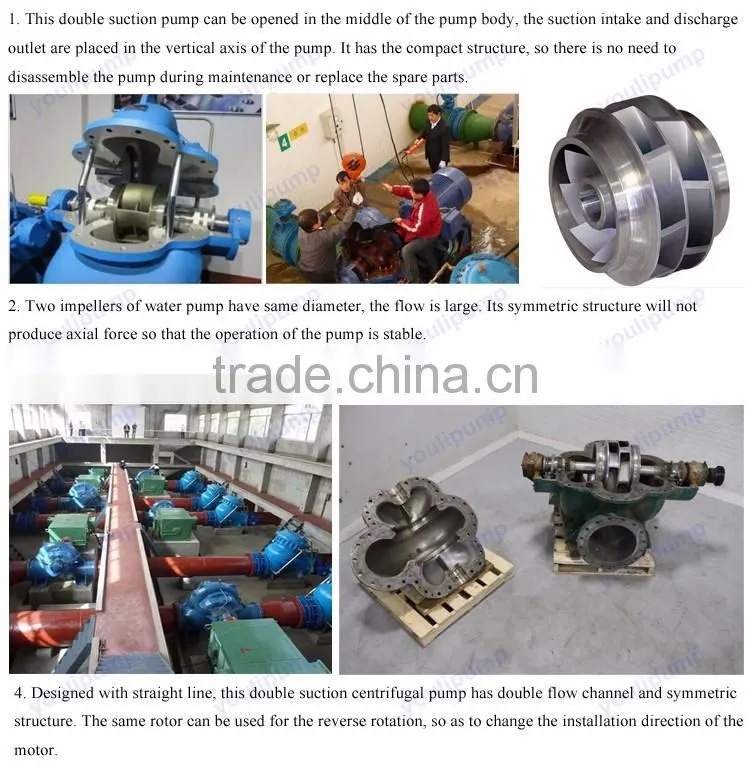

3. Features of double suction diesel engine driven water pump

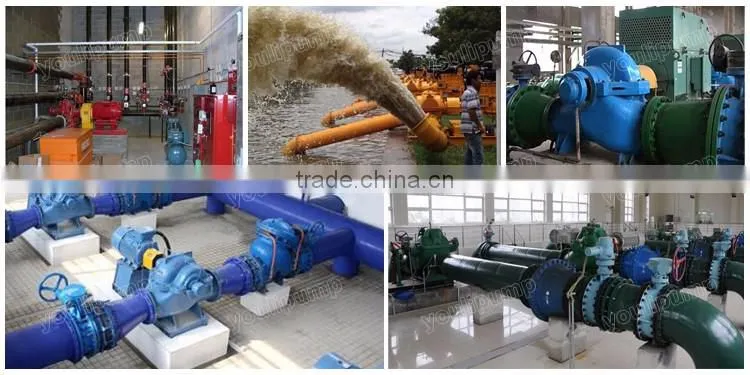

4. Application of pump
- Fire Fighting System: Fire fighting, fire booster, etc.
- Irrigation System: agriculture irrigation, farm irrigation and spray irrigation.
- Draining water System: rain water, flood, dewatering, etc
- Water supply System
- Others: Air conditioning circulation, Industrial pump
