Centrifugal pump non-self-priming suction pump
1.QI Single Stage Single Suction Pump Introduction:
QI series pump is single-stage , single-suction centrifugal pump , desiged as per the interational standard ISO2858 . It is a replacement of type BA water pump which is applicable to industrial and urban water supply and discharge as well as the agriculture irrigation . It can be used to transport liquid which have physical and chemical properties similar to clean water with a temperature not exceeding 80°C.
QI series pump is designed according to the functions and dimensions the international standard ISO2858 requires by our company . It is suitable for hot boiler water supply , hot water circulation system , industrial and urban water supply and discharge as well as the agriculture irrigation . Nevertheless , the temperature of the water should be no more than 150°C.
2.QI Single Stage Single Suction Pump Performance:
Centrifugal End Suction Pump Performance | |||||
Pump Type |
Capacity (m3/h) |
Head (m) |
Speed (rpm) |
Motor Power(kw) |
Eff (%) |
QI 50 |
3-14 |
3.7-82 |
1450-2900 |
0.55-11 |
21.5-60 |
QI 65 |
6-30 |
3.8-115.4 |
1450-2900 |
0.55-30 |
25-75 |
QI 80 |
12-60 |
3.6-128 |
1450-2900 |
0.55-37 |
39-75 |
QI 100 |
24.3-120 |
3.7-133 |
1450-2900 |
1.1-75 |
51-78 |
QI 125 |
51.4-240 |
8.4-133 |
1450-2900 |
4-110 |
52-81 |
QI 150 |
104-240 |
13-53 |
1450 |
11-45 |
62-81 |
QI 200 |
194-460 |
13.1-55 |
1450 |
22-90 |
65.5-82 |
QI 250 |
320-760 |
22.6-52 |
1480 |
75-132 |
67.5-84.5 |
QI 300 |
530-1200 |
21.9-38 |
1480 |
90-132 |
61.66-107.6 |
3.QI Single Stage Single Suction Pump Performance Curve:
4.QI Single Stage Single Suction Pump Constructure:

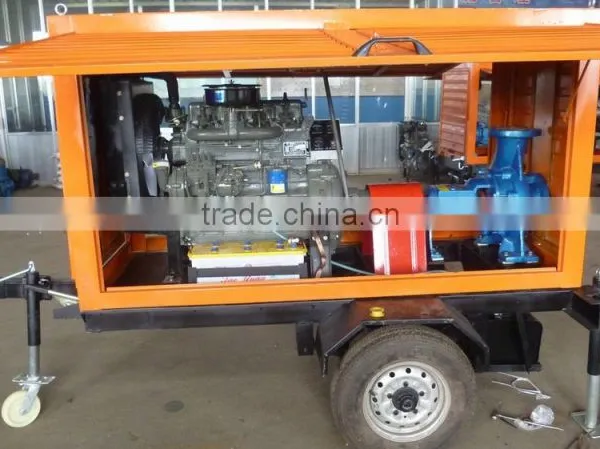

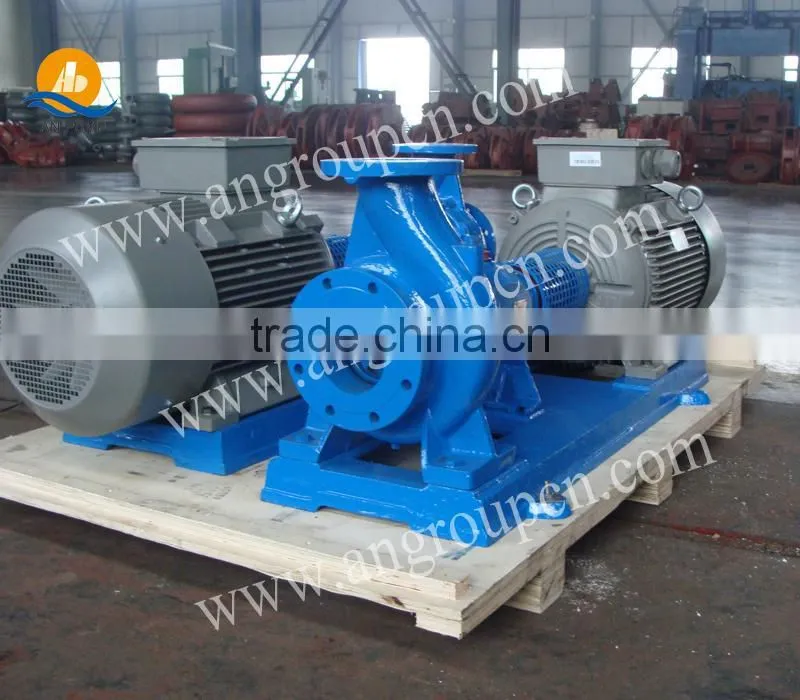

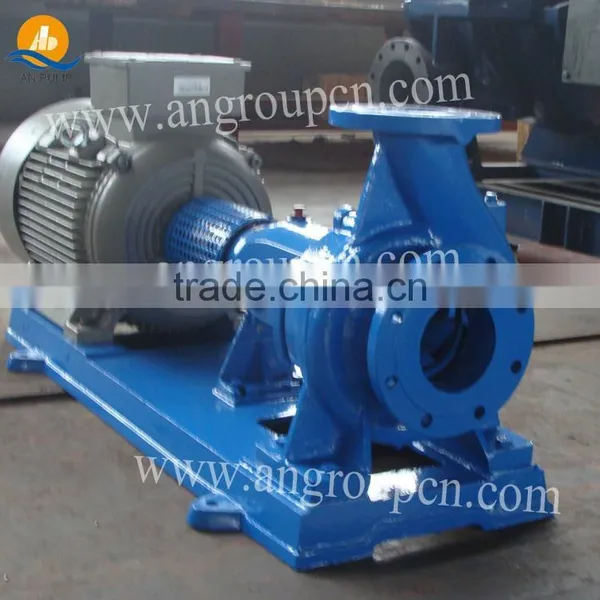

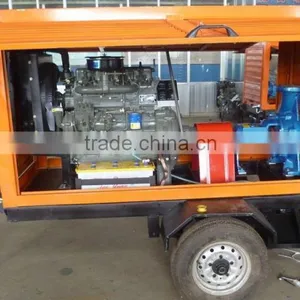

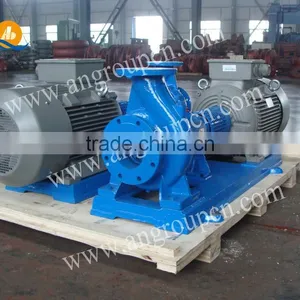

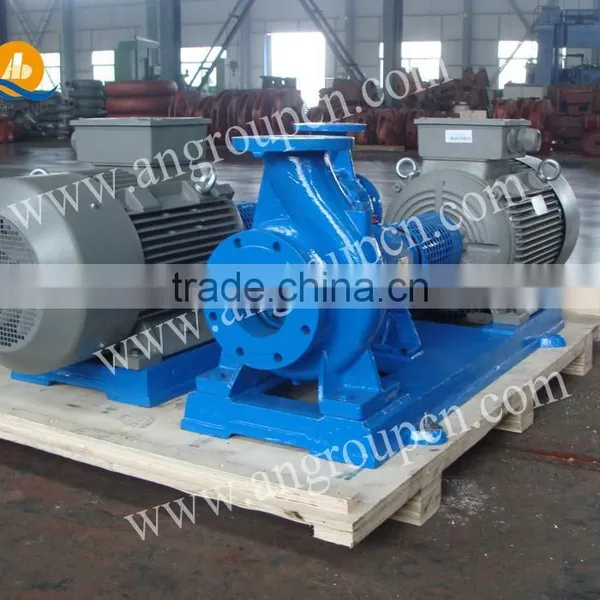

5,QI Single Stage Single Suction Pump Product Show:
6.Application for QI Single Stage Single Suction Pump:
1)Clean, thin, non-corrosive, non-flammable or non-explosive liquid without grain or fiber;
2)Water supply system;
3)Heat, air condition system;
4)Booster, constant pressure water supply;
5)Firefighting, splitting system;
6)Irrigating, farming;
7)Industry cooling, heater circulation system;
8)Industry transferring, drainage system;
