Horizontal centrifugal irrigation split casing water pump
What is a split casing Pump
Model QS Horizontal split casing centrifugal water pump is a single-stage double-suction horizontal split casing centrifugal pump and used to transport sea water and the liquid of salt solution, the maximum temperature of which must not be over 80℃ , suitable for water supply and drainage in seawater desalination plant,factories, agricultural irrigation, mines, cities and electric stations, waterlogged land drainage and carious hydraulic projects.
This series pump comply with the standards of GB/T3 216 and GB/T5657.
Type QS,QSH pumps are single stage, double suction with horizontally split casings.
Type QS ,QSH pumps are adoptable in factories, mines, water works, power stations, hydraulic engineering, irrigation or drainage services in agriculture, etc.
Constructure drawing of agricultural farm irrigation Horizontal split casing centrifugal water pump
Agricultural farm irrigation Horizontal split casing centrifugal water pump performance parameters
Model |
Flow rate (m3/hr) |
Head (m) |
Speed (rpm) |
Power (kw) |
Eff (%) |
QS150 |
110~220 |
35~84 |
2900 |
30~55 |
67~80 |
QS200 |
160~351 |
31~100 |
2900 |
37~110 |
67~85 |
QS250 |
324~612 |
8.6~71 |
1450 |
22~132 |
72~86 |
QS300 |
504~972 |
8~98 |
1450 |
30~300 |
70~84 |
QS350 |
745~1663 |
10~140 |
1450 |
55~680 |
70~88 |
QS400 |
900~1620 |
32~98 |
980~1480 |
155~500 |
71.5~84 |
QS500 |
1150~2450 |
10.6~108 |
740~970 |
110~800 |
70~89 |
QS600 |
2304~4000 |
13~80 |
730~970 |
185~900 |
70~91 |
QS700 |
2111~4896 |
39.5~99.5 |
740~980 |
560~1250 |
72~92 |
QS800 |
3960~7200 |
23.5~84 |
600~740 |
450~1600 |
77~92 |
QS1000 |
6000~9900 |
32~52 |
600~990 |
1250 |
79~87 |
QS1200 |
5832~14400 |
6~95.7 |
500~745 |
710~3450 |
80~90 |

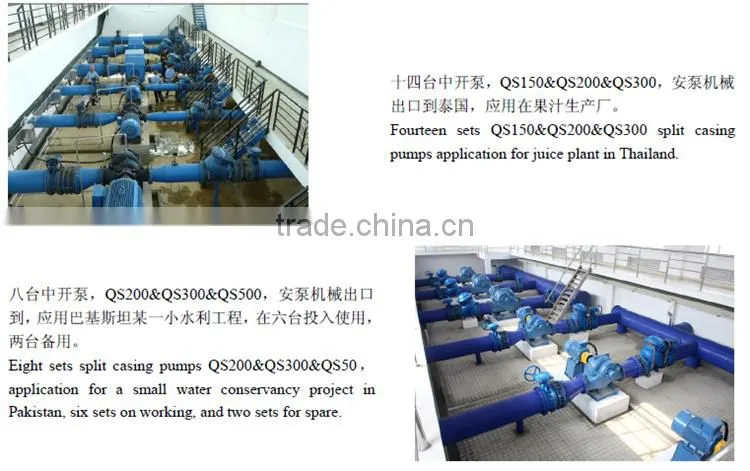

Horizontal split casing centrifugal water pump application
The split casing pump is widely used in water supply or drainager projection in different industries, such as metallurgy, power station, spinning and weaving, chemical, printing, dyeing, ceramics, rubber, heating, afterheating use, air conditioner, farm irrigtion and drainage, and so on...
An Pump Machinery is your Best Horizontal split casing centrifugal water pump Manufacturer
An Pump Machinery Co. ,Ltd is the Horizontal split casing centrifugal water pump manufacturer with 50+ years experienced
Our pumps export to over 90 countries all over the world in mining, power plant, dredging and dredge, hydraulic, irrigation, pulp transfer, chemical, construction, sea water and oil & gas transfer etc. click to more...
An Pump Machinery is your ISO certificated Horizontal split casing centrifugal water pump Manufacturer
An Pump Machinery is also CE cerficated Horizontal split casing centrifugal water pump Manufacturer
Standard wooden case packing of Horizontal split casing centrifugal water pump
