3 Cylinder Diesel Engine 380D

Name: 3 Cylinder Diesel Engine 380D
Brand: Halotop
SKU: 141199148

US$ 1,000 - 4,500 MOQ: 10 Sets

Key Specifications

Condition:

New

Usage:

Other, FOR GENERATING SES

Fuel:

Diesel

Shanghai Halotop Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, FOR GENERATING SES

Fuel Diesel

Stroke 4 Stroke

Cylinder Multi-cylinder

Cold Style Other, Water-cooled

Start Electric Start

Brand Name Halotop

Model Number 380D

Weight 250 KGS

Certification ISO9001

Warranty 1500HRS OR 1 YEAR

After-sales Service Provided Overseas service center available

Product Description

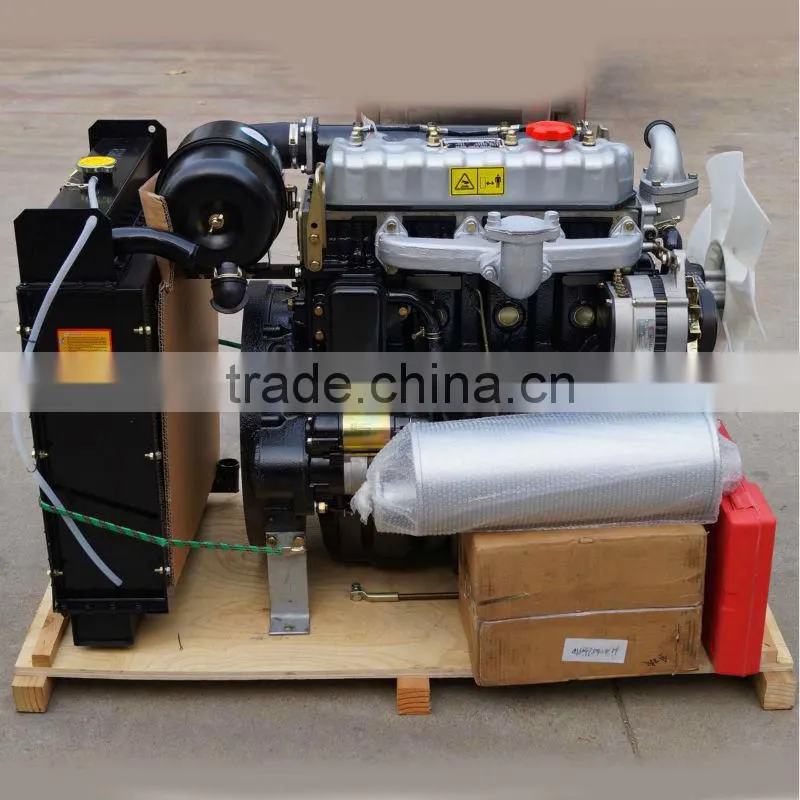

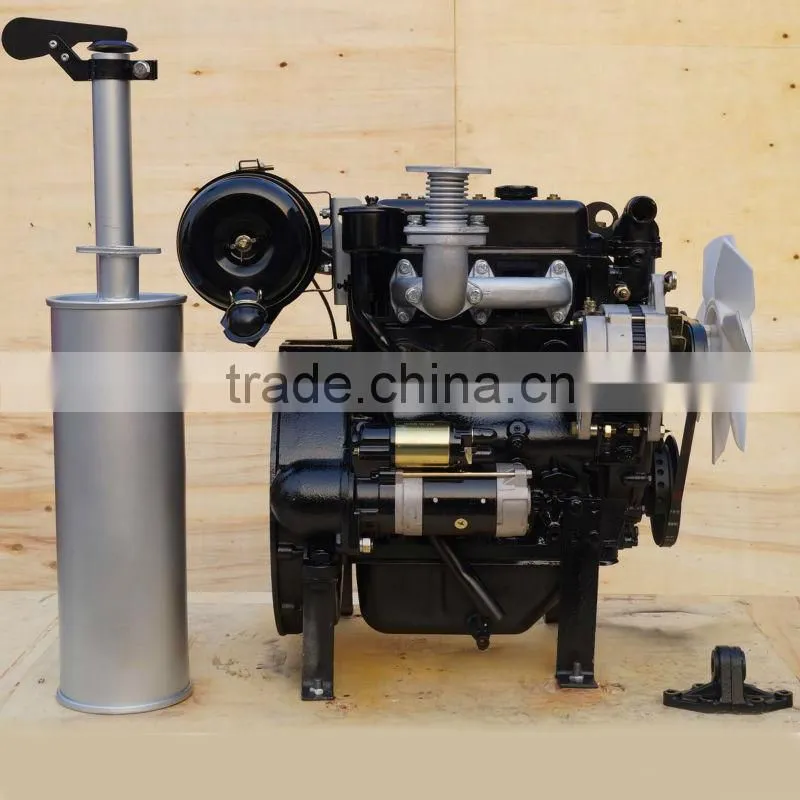

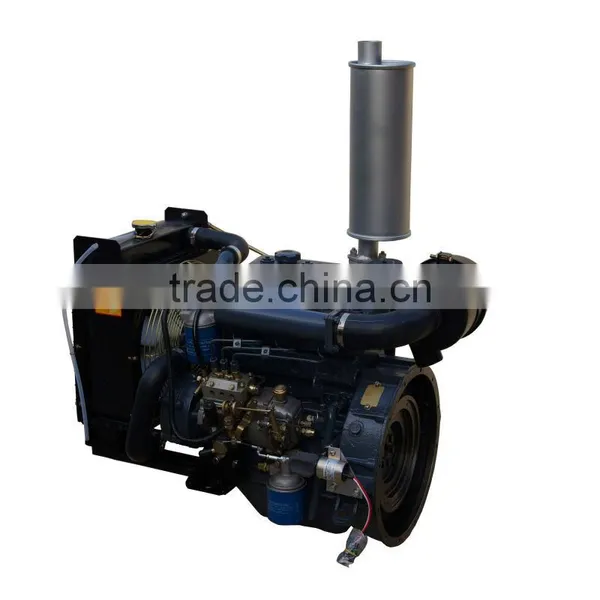

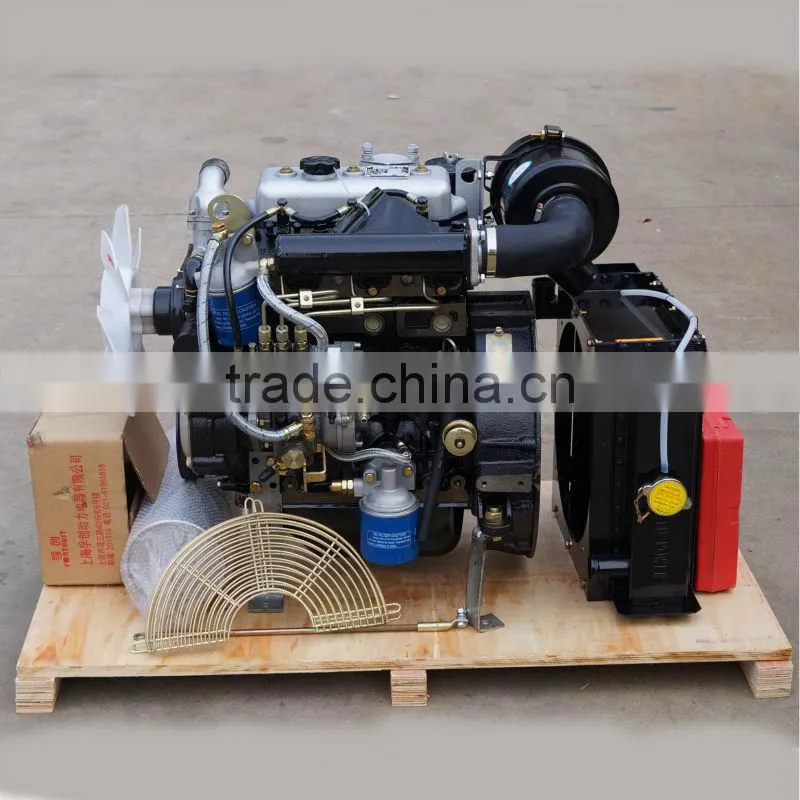

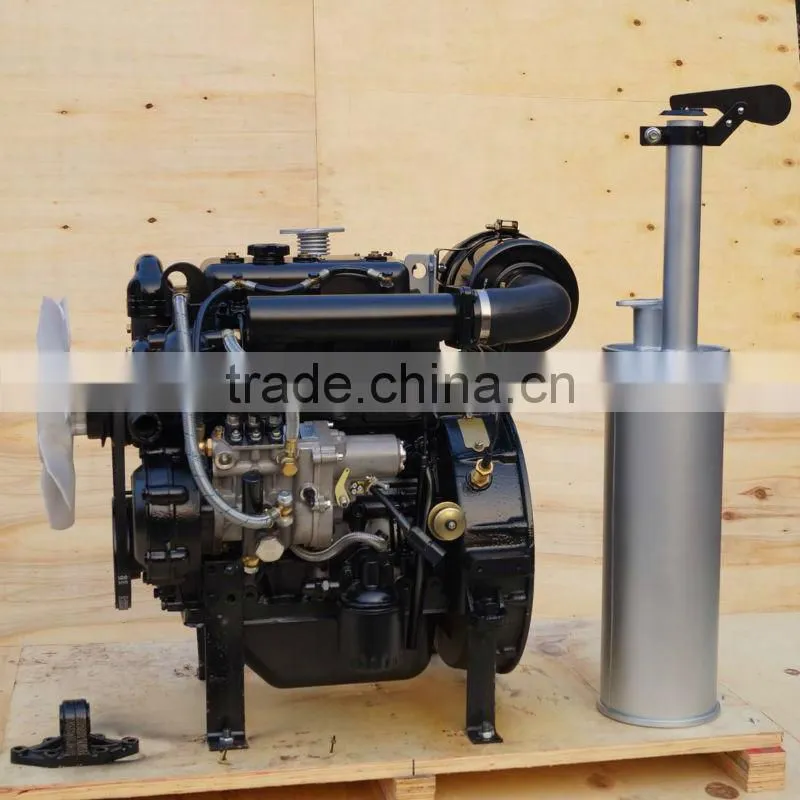

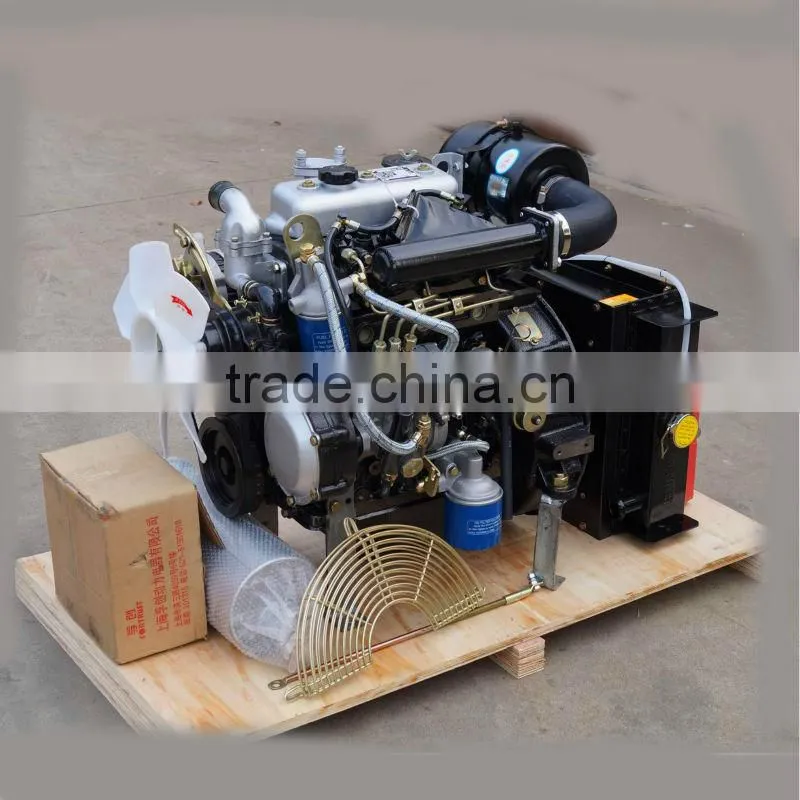

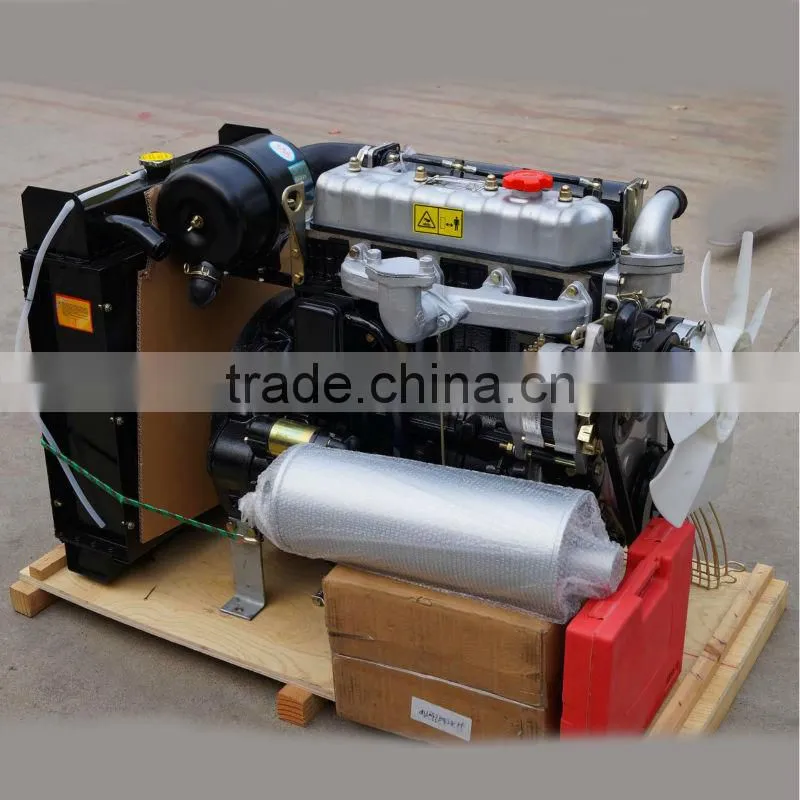

3 cylinder diesel engine 380D / Diesel engine for sale / Generating diesel engine

Diesel engine
MODEL	380D		480D		490D		4100D
RATED POWER(kW)	10	12	14	17	22	26	29	34.5
RATED SPEED(r/min)	1500	1800	1500	1800	1500	1800	1500	1800
DIESEL ENGINE TYPE	Vertical,In-Line, Four-Stroke, direct injector		Vertical,In-Line, Four-Stroke, direct injector		Vertical,In-Line, Four-Stroke, direct injector		Vertical,In-Line, Four-Stroke, direct injector
BORE*STROKE (mm)	80×90		80×90		90×105		100×118
CYLINDER NO	3		4		4		4
INTAKE METHOD	NATURE		NATURE		NATURE		NATURE
TOTAL DISPLEACEMENT(L)	1.357		1.809		2.54		3.705
FUEL CONSUMPTION RATE (g/ kW·h)	≤242		≤247		≤247		≤238

COOLING METHOD	WATER COOLING		WATER COOLING		WATER COOLING		WATER COOLING
GOVERNOR METHOD	MICHANICAL		MICHANICAL		MICHANICAL		MICHANICAL
STABLE GOVERNING	≤5%		≤5%		≤5%		≤5%
VOLT	12V		12V		12V		12V
START METHOD	ELECTRIC		ELECTRIC		ELECTRIC		ELECTRIC
ROTATING DIRECTION AT OUTPUT END	COUNTER-CLOCKWISE		COUNTER-CLOCKWISE		COUNTER-CLOCKWISE		COUNTER-CLOCKWISE
FLYWHEEL TYPE	SAE4#7.5″		SAE4#7.5″		SAE4#7.5″		SAE4#8/10
