Help CenterBlack Air Brake Chamber
US$ 6 - 19
MOQ: 30 Pieces
Key Specifications
Get Latest Price
Parts:
Trailer Suspension
OEM No.:
TMC-T3030DD
Size:
64*116*93, T12,T16,T20,T24,T30,T2024,T2424,T2430,T3030
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Parts
Trailer Suspension
OEM No.
TMC-T3030DD
Size
64*116*93, T12,T16,T20,T24,T30,T2024,T2424,T2430,T3030
Place of Origin
Fujian, China
Brand Name
TINMY
Model Number
TMC-T3030DD

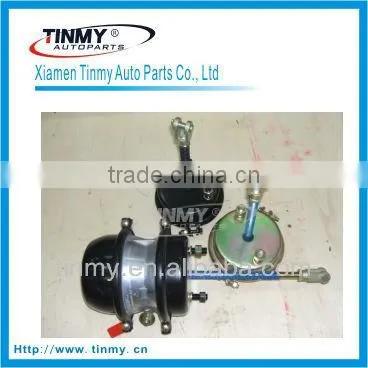

Black air brake chamber:
Tinmy can manufacture T24, T30, T24T30, T2424, T3030 air chamber (brake chamber) with high quality and competitive price.
Tinmy Spring Brake Chamber, Air Brake Chamber, Single room air chamber, double brake chamber have been supplying to many countries in the world.
1. Size: T24, T30, T24T30, T3030 Single, double air chamber ( DP type & DD Brake Chamber)
2. Certificate: ISO/TS16949
3. Delivery time: Within 10 days after receive TT payment or LC
Single Room:
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T2024 | 64 | 110 | 88 | 220±5 | 75±5 | 50±4 | M16*1.5 | M16*1.5 | M16*1.5 | 7.78 |
| TMC-T2424 | 64 | 116 | 93 | 224±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 8.1 |
| TMC-T2430 | 64 | 163 | 184 | 234±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.2 |
| TMC-T3030 | 64 | 125 | 105 | 238±5 | 285±5 | 255±5 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.5 |
Double Room:
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T09 | 44.5 | 87 | 68 | 104±5 | 106±5 | 130±3 | 1/2"-20UNF | 1/4"-18NPTF | 7/16"-14UNC | 1.9 |
| TMC-T12 | 44.5 | 125 | 105 | 104±5 | 160±5 | 130±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 2.3 |
| TMC-T16 | 57 | 107 | 83 | 109±3 | 163±5 | 160±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 3 |
| TMC-T20 | 57 | 11 | 88 | 84±5 | 240±5 | 200±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4 |
| TMC-T24 | 64 | 116 | 93 | 123±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.1 |
| TMC-T30 | 64 | 125 | 105 | 123±5 | 285±5 | 255±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.8 |
