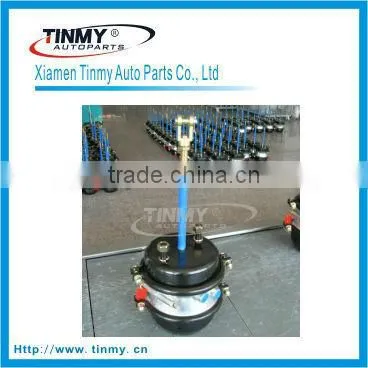

Help CenterBrake Chamber, Air Brake Chamber
US$ 6 - 19
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Type:
Other, Brake Chamber, Single room, Double room
Truck Model:
Other, All Truck, Trailer
Material:
Rubber, Alloy, Steel, Aluminium
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Other, Brake Chamber, Single room, Double room
Truck Model
Other, All Truck, Trailer
Material
Rubber, Alloy, Steel, Aluminium
Size
T3030
OEM No.
T3030
Air Brake Chamber:
1) Single room: T09, T12, T16, T20, T24, T30
Double room: T2024, T2424, T2430, T3030 (DD, DP, Sealed type double air brake chamber)
2) Standard Size
3) Color: Black, Golden Yellow
4) High quality, Competitive price, Fast delivery
5) Certificate: ISO9001:2000/TS16949
Single Room Air Brake Chamber:
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T09 | 44.5 | 87 | 68 | 104±5 | 106±5 | 130±3 | 1/2"-20UNF | 1/4"-18NPTF | 7/16"-14UNC | 1.9 |
| TMC-T12 | 44.5 | 125 | 105 | 104±5 | 160±5 | 130±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 2.3 |
| TMC-T16 | 57 | 107 | 83 | 109±3 | 163±5 | 160±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 3 |
| TMC-T20 | 57 | 11 | 88 | 84±5 | 240±5 | 200±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4 |
| TMC-T24 | 64 | 116 | 93 | 123±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.1 |
| TMC-T30 | 64 | 125 | 105 | 123±5 | 285±5 | 255±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.8 |
Double Room Air Brake Chamber:
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T2024 | 64 | 110 | 88 | 220±5 | 75±5 | 50±4 | M16*1.5 | M16*1.5 | M16*1.5 | 7.78 |
| TMC-T2424 | 64 | 116 | 93 | 224±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 8.1 |
| TMC-T2430 | 64 | 163 | 184 | 234±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.2 |
| TMC-T3030 | 64 | 125 | 105 | 238±5 | 285±5 | 255±5 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.5 |
